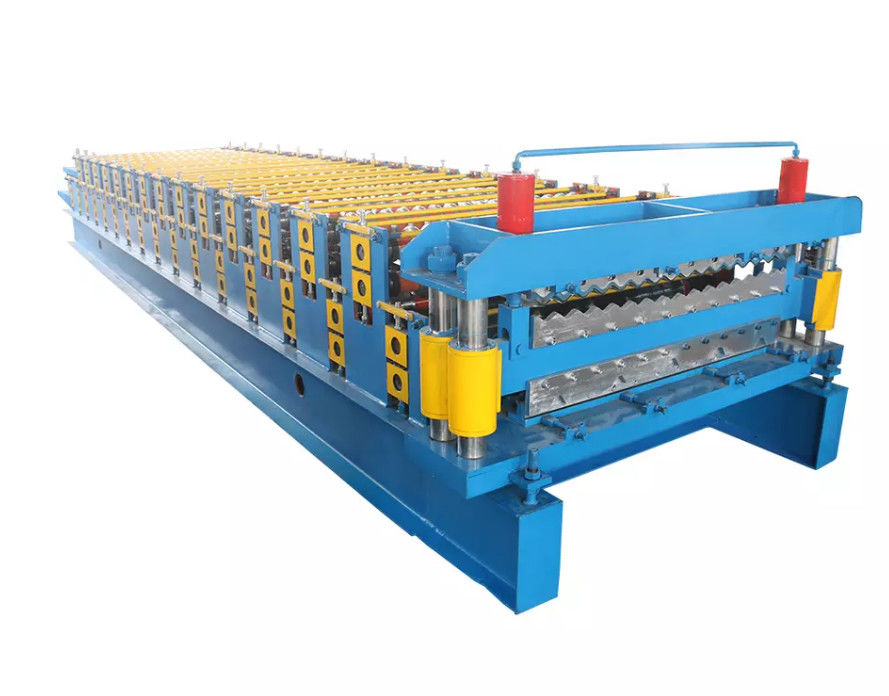

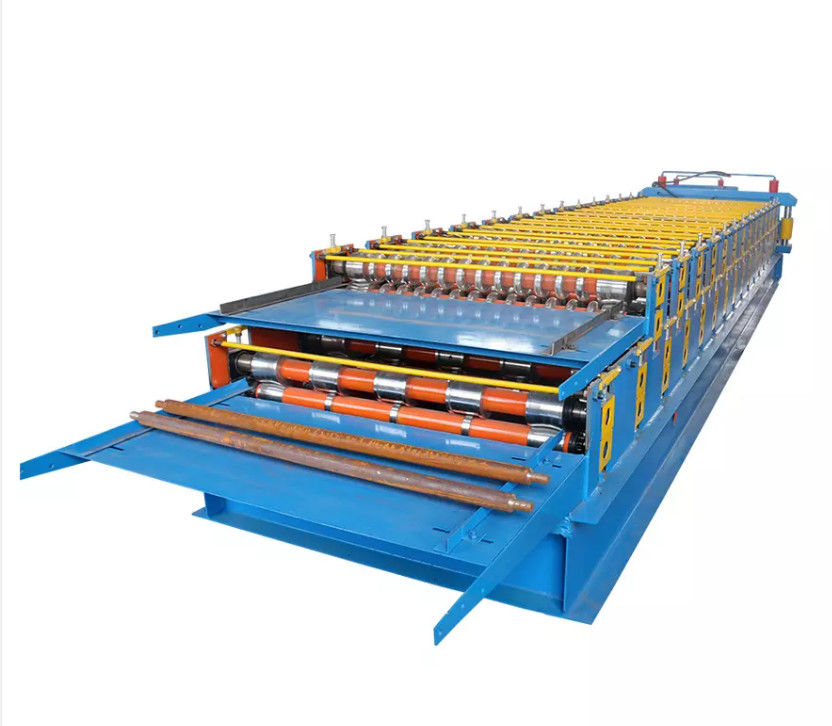

PPGI Double Layer Roll Forming Machine With Hydraulic Cutting
Customized 0.3-0.8mm Metal Sheet 8 Rib Trapezoidal And 1035 Glazed Tile Double Layer Roll Forming Machine For Africa
Double layer roll forming machine popular sell in many countries, common roofing sheet rolling thickness from 0.3-0.6 mm, material use PPGI (Pre-Painted Galvanized Steel ) material
We sell lots of double layer roll forming machine to Guyana, Brazil, Colombia, South Africa, Nigeria etc. We can assure finished products overlap accuracy control in ±1 mm. Size can customize can your need size
Double layer roll forming machine | double deck machine | 2 layer roll forming machine
Detailed Parameters:
|
No.
|
Main Parameter of Roll Forming Machine
|
|
|
1
|
Material
|
PPGI
|
|
2
|
Width of plate
|
1000mm
|
|
3
|
Thickness of plate
|
0.3-0.6mm
|
|
4
|
Rollers No.
|
11rows
|
|
5
|
OD of roller
|
70mm
|
|
6
|
Power
|
3KW
|
|
7
|
Productivity
|
8-10M/MIN
|
|
8
|
Material of cutting blade
|
Cr12
|
|
9
|
Weight
|
2.5T
|
|
10
|
Voltage
|
380V 50Hz 3phases
|
|
11
|
Control System
|
PLC Control
|
|
12
|
Machine Size
|
6.2X1.4X1.5M
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
