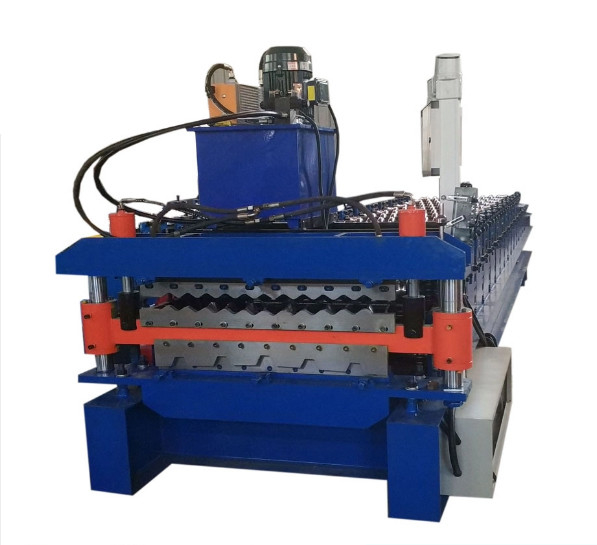

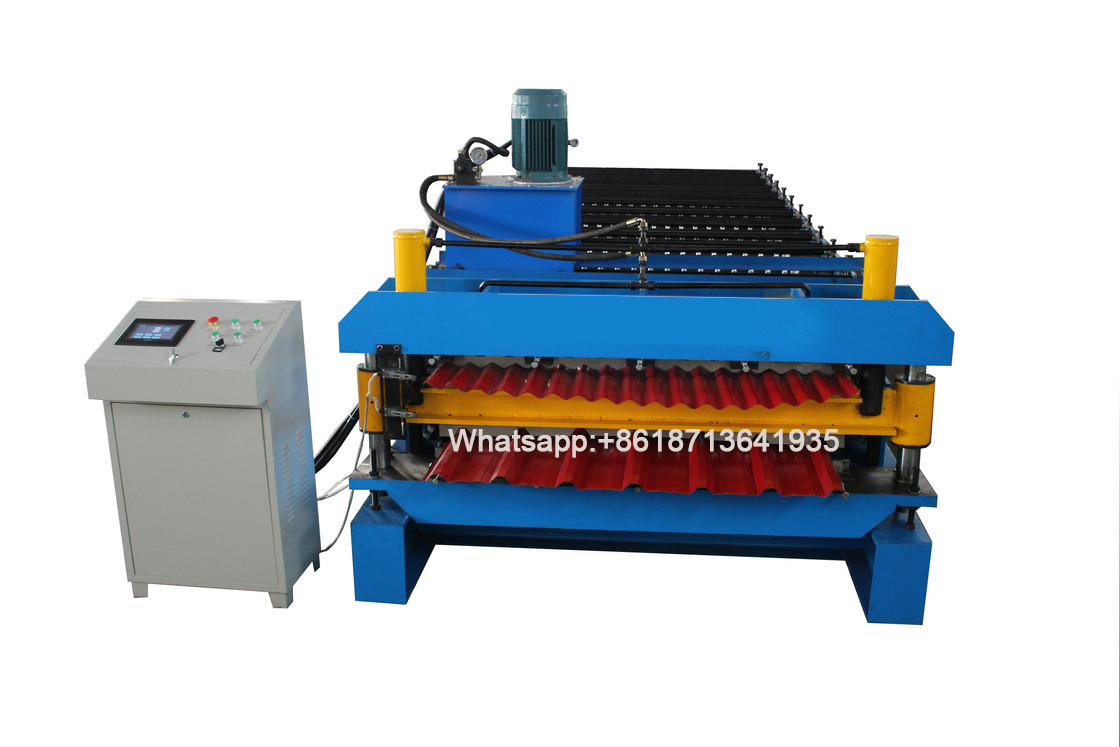

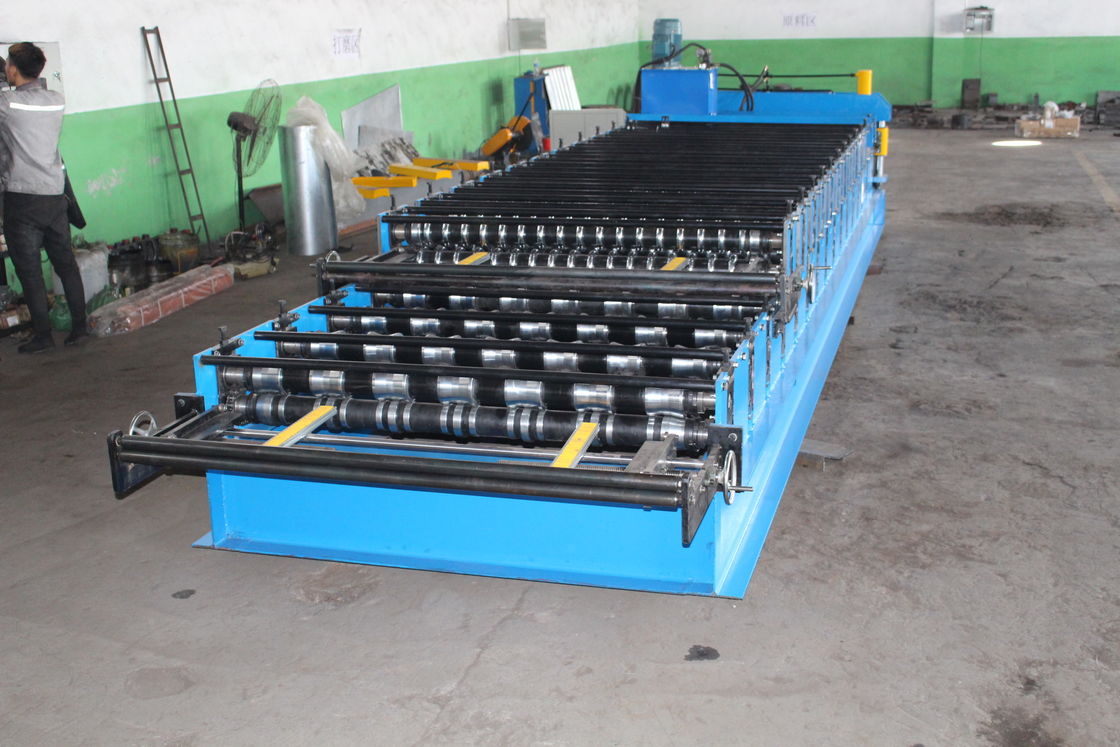

Full Auto Sheet Metal Double Layer Roll Forming Machine 15-18m/Min Hydraulic Cutting
The double layer tile machine equipment uses PLC and uses the electrical control system displayed by a text screen. It is easy to operate, easy to use the double layer tile machine equipment to use high -level automatic control software. To achieve production information management, the entire unit automation control system adopts high integration networks. Make the automation system's performance better. The color steel tile equipment also has the advantages of operation, maintenance, maintenance, and mechanical debugging, and easy mold replacement.
Equipment Detailed Parameters:
| 1. Weight capacity of decoiler | 4T |
| 2. Appearance Size(L*W*H) | 6500*1500*1500 |
| 3. Raw material /feeding sheet material | colored steel & galvanized steel |
| 4. Roller material | 45# high grade steel |
| 5. Shaft material | 45# high grade steel |
| 6. Kind of drive | chain drive |
| 7. Cutting system | automatic hydyaulic cutting |
| 8. Cutting blade material | Cr 12 high grade steel |
| 9. Frame material | 300 H-high grade steel |
| 10. Control system | totally automatic PLC control system |
| 11. Main power | 3 kw |
| 12. Roller stations | 13 rows |
| 13. Speed of production | 8-12m/min |
| 14. Thickness of colored steel | 0.2-0.8mm |
| 15. Feeding width | 1000mm |
| 16. Effectiv width | 840/900mm |
| 15. Frame material | 300 H-steel |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
