Nguồn gốc:
TRUNG QUỐC
Hàng hiệu:
CANGZHOU FMS
Chứng nhận:
ISO CE
Số mô hình:
Máy tạo cuộn ống xuống

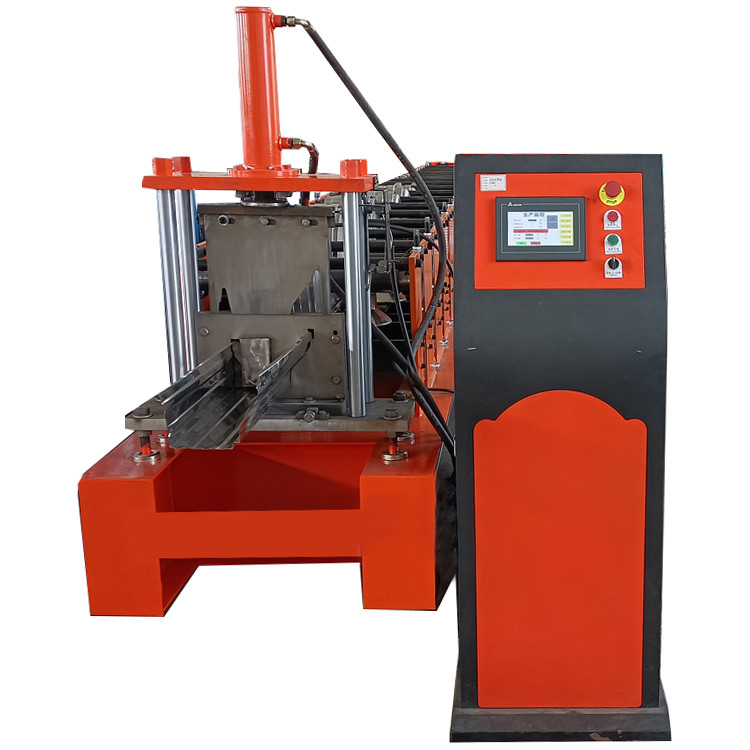

Metal Material Rain Gutter Downspout Cold Forming Machine Low Price
Water gutter cold roll forming machine can bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole.The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate, and help to enhance the image of the all project.

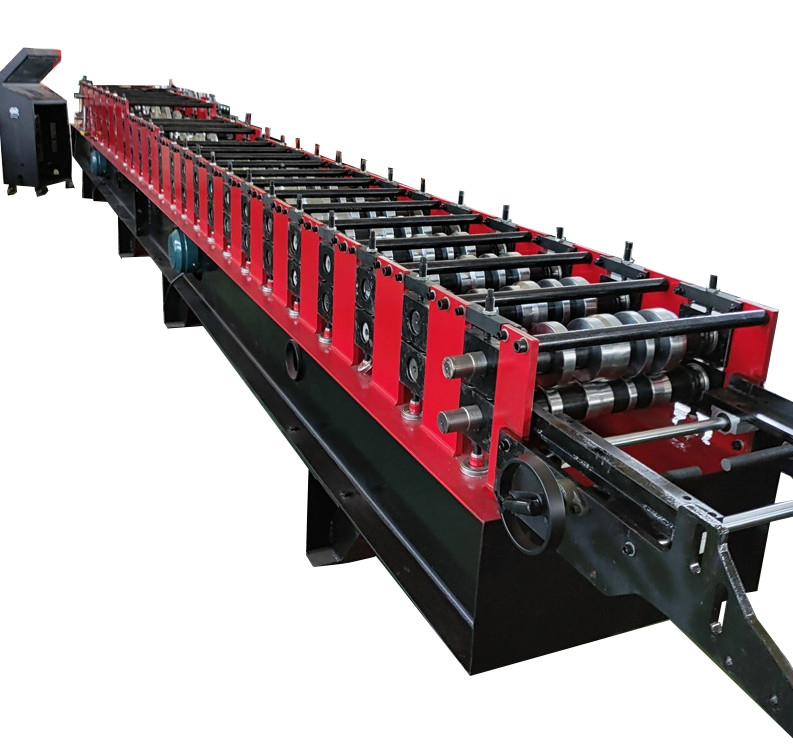

Water gutter cold roll forming machine is composed of uncoiler, the feed leading table, the main machine, the formation cutting device, hydraulic system, control system and the product bracket.
Metal Material Rain Gutter Downspout Cold Forming Machine Low Price is one of most popular metal building material making machines,it can produce many kinds of trapezoidal tile/panels,like Ag panel or PBR/R panel,which can be widely used in many scenes,like school,gym, warehouse,etc.
Specification
| Details | Parameter | |
| ProducT | Raw material | PPGI /PPGL |
| Material thickness | 0.25-0.8mm | |
| Product cutting length | Adjustable | |
| Coil ID | 508 mm | |
| Coil width | 1250 mm | |
| Coil weight | 5T | |
| Decoiler | Work type | hand type |
| Structure | Steel channel for basic frame | |
| Loading capacity | 5 Tons | |
| Coil inner diameter | 550-610 mm(adjustable) | |
| Max coil width | 1250 mm | |
| Roll forming machine |
Feeding device | Platform, the width is adjustable |
| Roller stations | 22 stages The distance between 2 stages is 443mm |
|
| Roller shaft | Shaft material: 45# steel | |
| Shaft diameter: φ70 mm | ||
| Roller | Roller material: 45# steel | |
| Roller spacer | Anti rusty treatment | |
| Work speed | 25m/min | |
| Main structure | Middle plate weld with structure | |
| Motor power | 5.5KW ,SHANGHAI LICHAO BRAND | |
| Transmission | 1.0INCH CHAINS | |
| Machine basic frame | 400# H steel welded with diagonal bracing inside | |
| Bearing | Chinese famous brand: Harbin | |
| PLC control system |
Frequency brand | Delta (original) |
| PLC brand PLC | Delta (original) | |
| Screen type | Touch screen also have button | |
| Screen language | English / Chinese/Arabic | |
| Low voltage apparatus | TAIWAN DELTA | |
| Encoder | Omron | |
| Function | Cutting to length, quantity and work speed control. | |

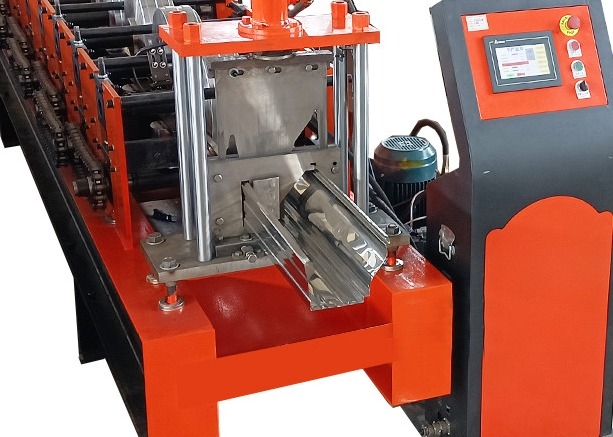

| Hydraulic system |
Work type | Hydraulic cutting |
| Driving type | By pillar type cylinder | |
| Hydraulic motor power | 4.0KW | |
| Cutter material | Cr12 | |
| Cutting length tolerance | ±1-3mm | |
| Product collect table |
Length | 3m |
| Width | 1.3m | |
| Structure | Shaped steel welded | |
| Machine weight | Around 4Tons | |
Installation
During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.
Guarantee
The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).
Payment terms
40% in advance
60% is paid before shipping
