Nguồn gốc:
TRUNG QUỐC
Hàng hiệu:
CANGZHOU FMS
Chứng nhận:
ISO CE
Số mô hình:
Máy tạo cuộn ống xuống

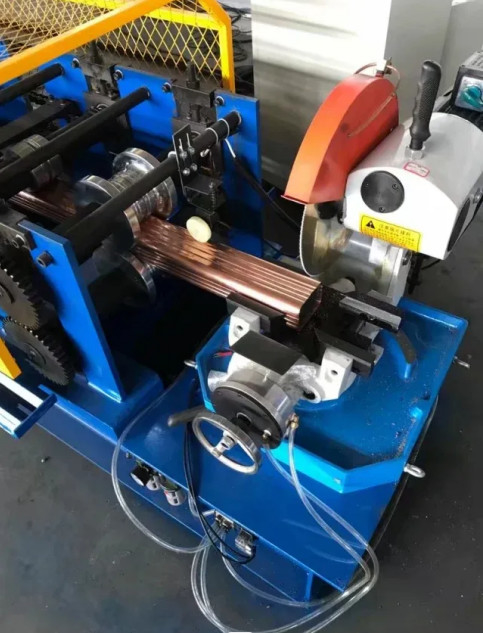

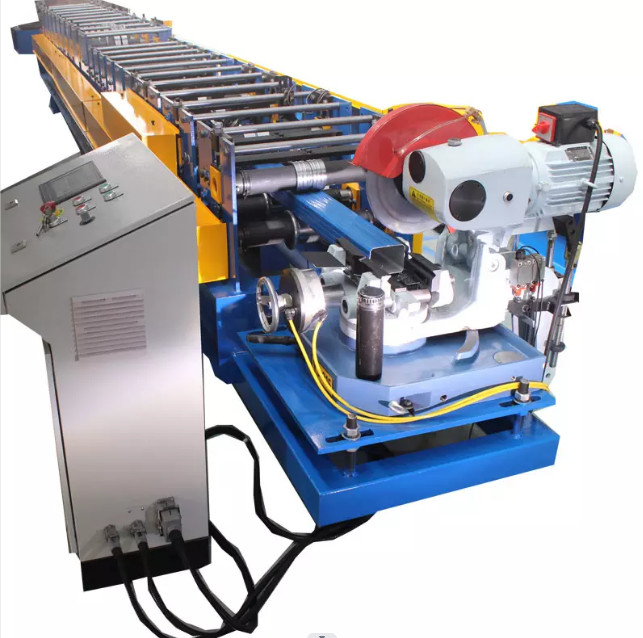

Metal Downspout Pipe Cold Roll Forming Machine Square Aluminum Down Pipe
Metal Downspout Pipe Cold Roll Forming Machine Square Aluminum Down Pipe work process
Uncoiling---main roll former---measure to length---fly saw cutting---product collect table
Metal Downspout Pipe Cold Roll Forming Machine resists thermal expansion and contraction, which means that it remains unaffected from sudden fluctuations in temperature. Steel has an excellent lifetime value, as it can be recycledis one type of interlock pipe making machine. A downspout is a pipe taht runs vertically along the side of the home,it is connected at the top to a hole in the gutter channel,the other end bends outward and usually sits several inches above the ground.This allows the water to flow away from the homes it exits the pipe.
Specification
| Series | Detail | Parameter |
| Decoiler | loading capacity | 3 Tons |
| Inner diameter | 450-550 mm | |
| Coil width | 400 mm | |
| Main roll former | Roller material | 45# steel with chromed treatment |
| Roller shaft material | 45# steel with quenched treatment | |
| Work speed | 8-15 m/min | |
| Machine structure | Middel plate welded structure frame | |
| Work power | 4 kw | |
| PLC control system | PLC brand | DElTA brand(also can change by your request) |
| Function | control the length and cutting quantity | |
| Cutting system | Cutting type | Hydraulic cutting |
| Motor power | 3 kw | |
| Run out table | Strcuture | Square pipe weled structure |
Installation
During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.
Guarantee
The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).
Payment terms
40% in advance
60% is paid before shipping
Gửi yêu cầu của bạn trực tiếp đến chúng tôi
