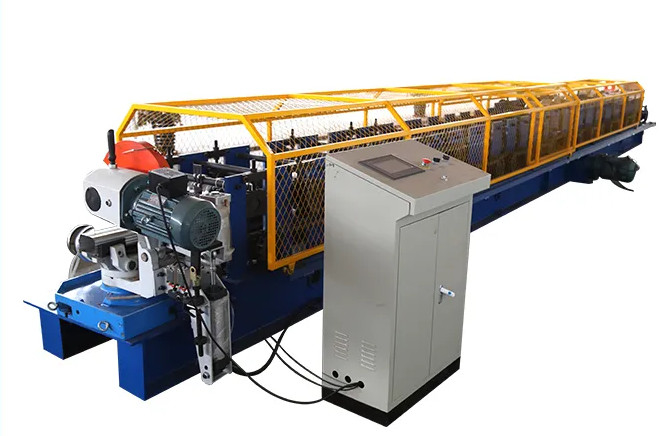

Downpipe Aluminium Gutter Profile Roll Forming Machine Automatic
Downpipe Aluminium Gutter Profile Roll Forming Machine Automatic Process Flow:
Un - coiler roll forming M/C - PCLcontrol System - hydraulic Cutting - Discharge table

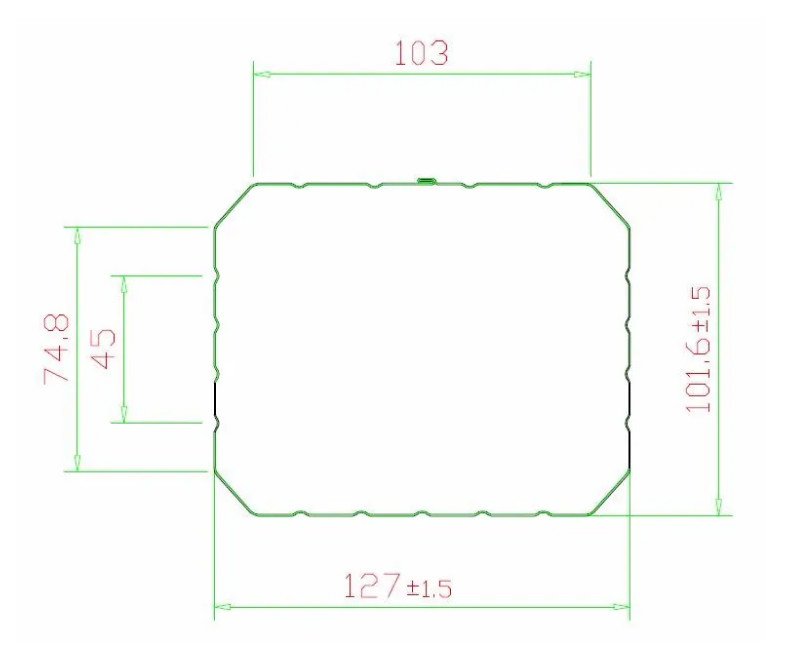

Square Down Pipe Roll Forming Machine Downspout Forming Machine is one type of interlock pipe making machine. A downspout is a pipe taht runs vertically along the side of the home,it is connected at the top to a hole in the gutter channel,the other end bends outward and usually sits several inches above the ground.This allows the water to flow away from the homes it exits the pipe.A gutter is a channel installed at or just below the roof line at the edges of the home where the roof slopes downward.
Specification
|
Description |
Explaination |
|
Working speed
|
8-10m/min(Including shear time)
|
|
Pressed plate thickness
|
0.3-0.8mm
|
|
Control mode
|
Panasonic PLC
|
|
Decoiler
|
5 t manual decoiler
|
|
Number of molding passes
|
16 lanes
|
|
Roll material
|
After finishing, the surface of 45# steel is chrome plated.
|
|
Shaft material and diameter
|
45# Steel finishing,Shaft diameter is￠70mm
|
|
Main engine power
|
5.5kw
|
|
Power of hydraulic station
|
5.5kw
|
|
Hydraulic pressure
|
12Mpa
|
|
Scissors material
|
Cr12Mov, quench HRC 58-62℃
|
|
Length tolerance
|
3m±1.5mm
|
|
Voltage
|
380V, 50HZ,3 phase(According to customer requirements can be adjusted)
|
|
Transmission mode
|
1.0 inch single row chain
|
|
Equipment size
|
L*W*H—8.5m*1.7m*1. 2m
|
Installation
During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.
Guarantee
The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).
Payment terms
40% in advance
60% is paid before shipping
