Nguồn gốc:
Trung Quốc đại lục
Hàng hiệu:
FMS
Chứng nhận:
ISO CE
Số mô hình:
sàn nhà
Băng hình
Băng hình
Băng hình

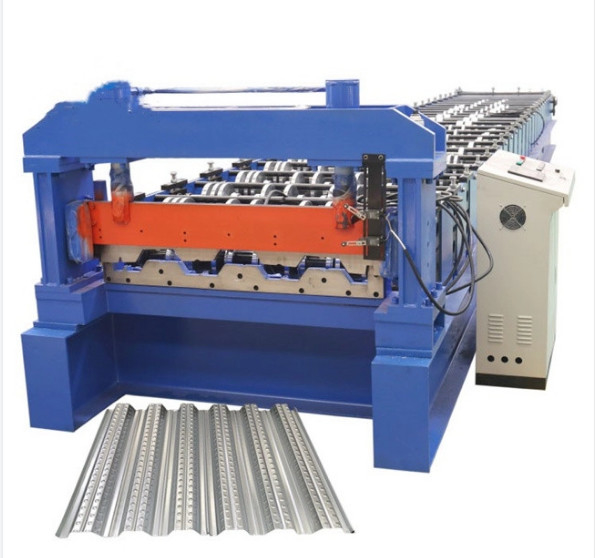

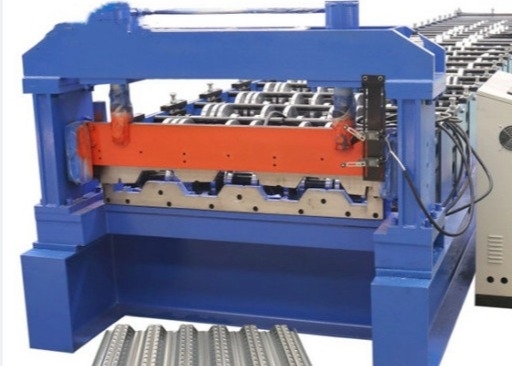

15-20m/Min Floor Decking Roll Forming Machine Hydraulic Cutting
15-20m/Min Floor Decking Roll Forming Machine Hydraulic Cutting.The metal deck produced by floor decking roll forming line has high strength with big wave length. It adheres well to concrete. Used on high building, it not only saves steel mold plate, but also reduces the weight of storey. With the same bearing capacity, it economized steel and cuts down investment accordingly.
Specification
| 15-20m/Min Floor Decking Roll Forming Machine Hydraulic CuttingSpecifications | |
| Weight | About 3tons |
| Size | About 12.5mx1.5mx1.3m(length x width x height) |
| Color | Machine Main color: blue or can as your requirement |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils,color steel |
| Thickness | 0.8-1.5mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |

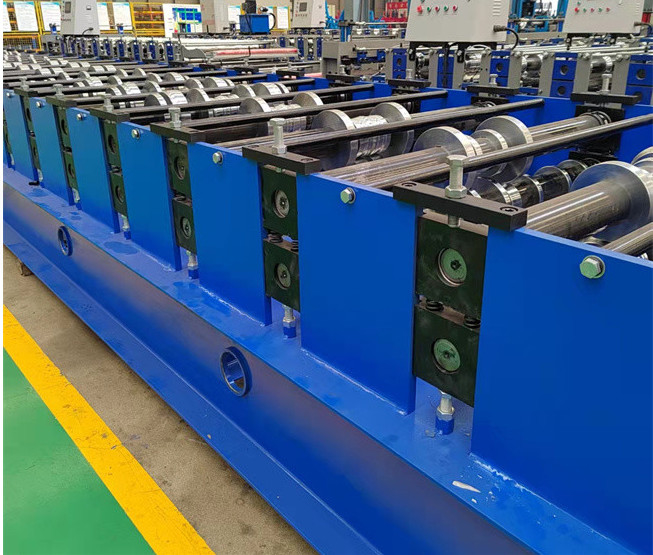

| Quantity of forming rollers stations | 25stations |
| Diameter of forming rollers shafts | 95mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 18.5kw+18.5kw |
| Hydraulic unit motor power: 5.5kw | |
| Electric voltage | According to customer’s requirement |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
