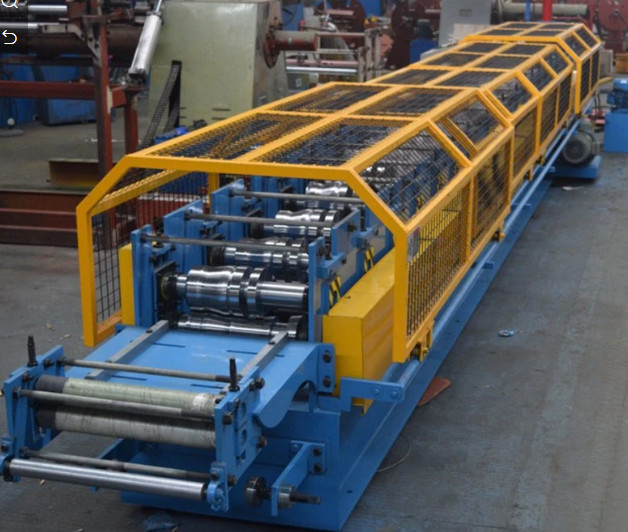

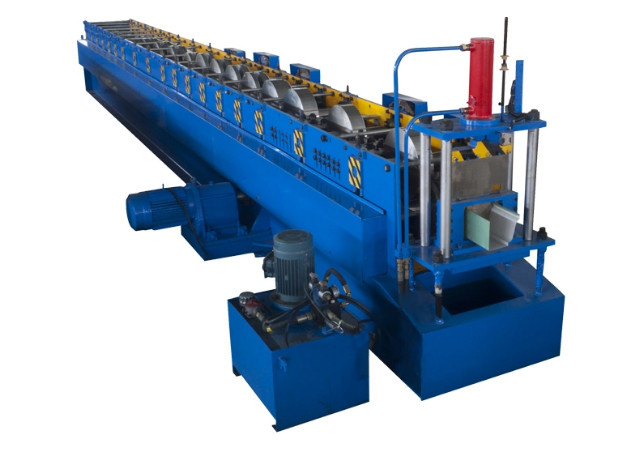

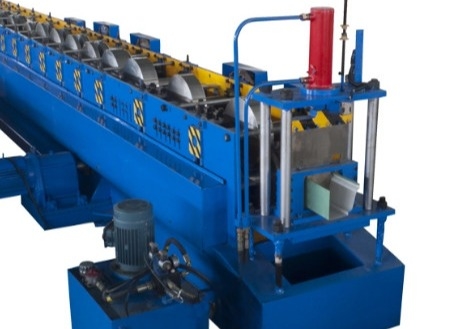

Square Rain Gutter Down Pipe Cold Roll Forming Machine K Span
Square Rain Gutter Down Pipe Cold Roll Forming Machine K Span can bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole.The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate, and help to enhance the image of the all project.
Specification
| Square Rain Gutter Down Pipe Cold Roll Forming Machine K Span parameter | |
| Suitable roll forming material | Color steel sheet |
| Thickness | 0.4-0.6mm |
| Frame design | Wall-plate-frame-design /New-stand-frame-design |
| Roll stages | 16 stages |
| Material of forming roller | 45# steel, CNC lathes, Hard Chrome Coated |
| Shafts Diameter | Φ75mm |
| Main motor power | 7.5KW |
| Max. Line speed of roll former | 15m/min (Higher speed is available, depends on the specification required by the buyer) |
| Hydraulic group power | 4KW |
| Material of cutting blade | Cr12, hear treatment |
| Electric Standard | 380V /50Hz/3PH or as per customer's requirements |
| Machine Dimensions | 8850mm×1280mm×1550mm |
| Major Color of Machine Painted | RAL 5015 (Blue) or as per customer's requirements |
Installation
During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.
Guarantee
The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).
Payment terms
40% in advance
60% is paid before shipping
