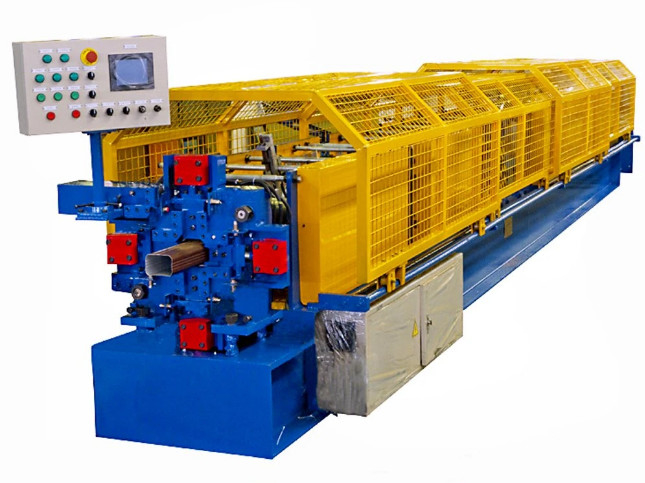

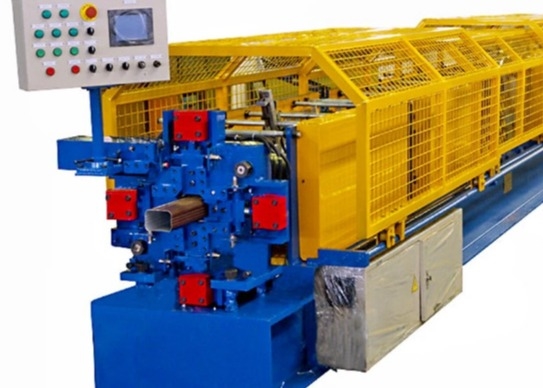

Metal Square Downpipe Roll Forming Machinery For Rainspout Full Automatic
Cangzhou FMS Roll Forming Machinery Co., Ltd. is a professional manufacturer engaged in research, development, production, sale and service of roll forming machine. Down Pipe Roll Forming Machine For High Qualitynew Design Square Pipe Making Machine downspout roll forming machine/ Water down pipe,whole line consist manual decoiler,main forming machine,control box,hydraulic pump and run out table.
Specification
| Metal Square Downpipe Roll Forming Machinery For Rainspout Full Automatic parameter | |
| Suitable roll forming material | Color steel sheet or galvanized steel sheet |
| Thickness | 2.0-3.0mm |
| Frame design | Wall-plate-frame-design /Strong-stand-frame-design |
| Roll stages | 17stages |
| Material of forming roller |
1. 45# steel, CNC lathes, Hard Chrome Coated 2. 40Cr, heat treatment, nitrided treatment |
| Shafts Diameter | Φ75/95mm |
| Main motor power | 18.5KWwith reducer |
| Max. Line speed of roll former | 8-10m/min (Higher speed is available, depends on the specification required by the buyer) |
| Hydraulic group power | 22KW |
| Material of cutting blade | Cr12, hear treatment |
| Electric Standard | 380V /50Hz/3PH or as the customer's requirements |
| Machine Dimensions | 9840mm×2030mm×1130mm |
| Major Color of Machine Painted | RAL 5015 (Blue) or as per customer's requirements |
Installation
During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.
Guarantee
The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).
Payment terms
40% in advance
60% is paid before shipping
