Nguồn gốc:
TRUNG QUỐC
Hàng hiệu:
CANGZHOU FMS
Chứng nhận:
ISO CE
Số mô hình:
Vòi vuông/vòng xuống
Down Pipe Roll Forming Machine Gutter Downspout Making Machine
Down Pipe Roll Forming Machine Gutter Downspout Making Machine Advantage :

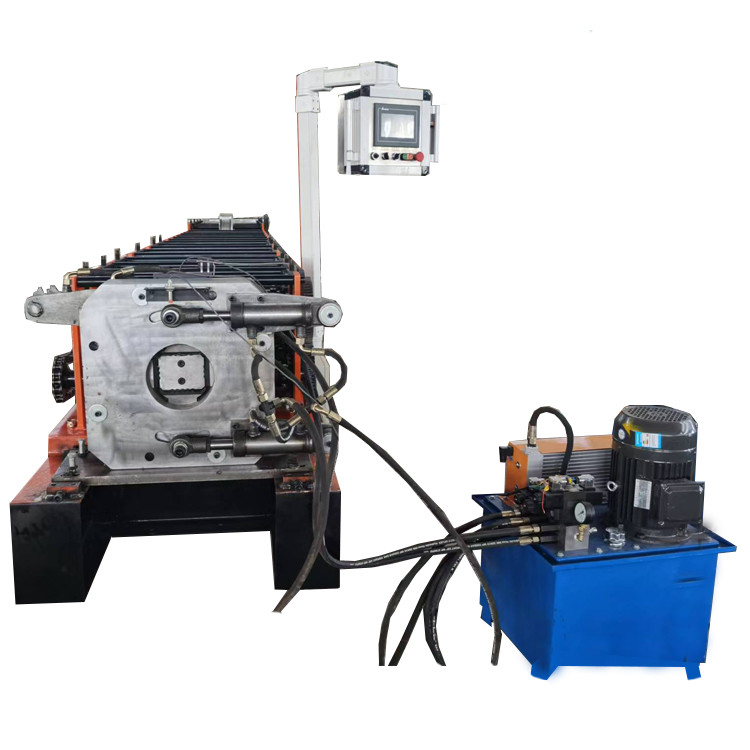

downspout roll forming machine/ Water down pipe,whole line consist manual decoiler,main forming machine,control box,hydraulic pump and run out table
1. The whole line working speed is about 10m/min.,max working speed could be 15 meters per minute.
2. Feeding material width should be confirmed before machine design .the width are changeable,
3. Material thickness normal range are 0.3-0.8mm.if you have any special request on material thickness,we should discuss in advance .
4. Both three and four waves are suitable for the line.we can design the machine based on buyer's profile drawing
5. Final sheet embossing is avaliable.we can different embossing rollers on various pattern and drawings.
6. Pre-cutting are provided as you want.
Specification
| Down Pipe Roll Forming Machine Gutter Downspout Making Machine | ||
| No. | Item | Specifications |
| 1 | Coil Width | according to drawings |
| 2 | Diameter of shaft | 70mm |
| 3 | Forming Speed | 8-12meters/min |
| 4 | Middle plate | 16mm |
| 5 | Material of shaft | 45#steel with tempering |
| 6 | forming thickness | 0.2mm-0.6mm |
| 7 | material of rollers | 45#steel |

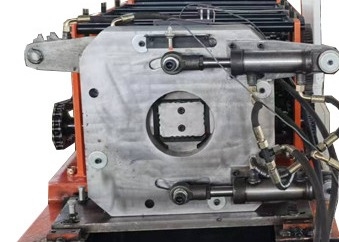

| 8 | Cutting type | hydraulic -cutting |
| 9 | Main power | 4kw+3kw |
| 10 | Main frame | 300H steel |
| 11 | Control system | PLC |
| 12 | Brand of electrical parts | Delta |
| 13 | Manual decoiler | 5 tons |
| 14 | Power | 3 Phase,380 Voltage,50Hz |
| 15 | Dimensions(L*W*H) | About 6.5*1.2*1.2M |
| 16 | Weight | about 3 tons |
Installation
During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.
Guarantee
The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).
Payment terms
40% in advance
60% is paid before shipping
