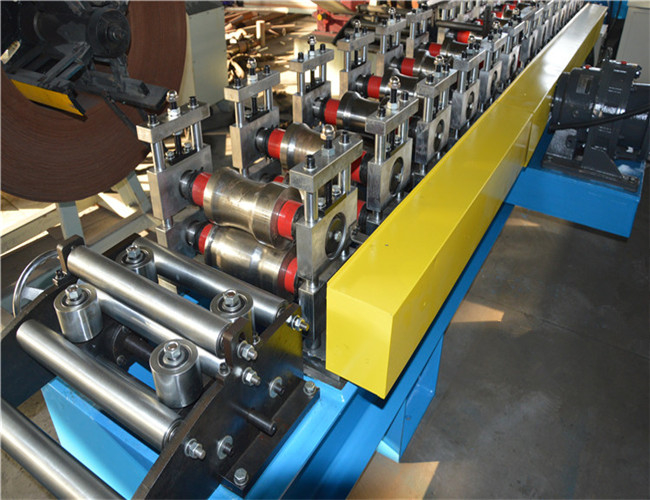

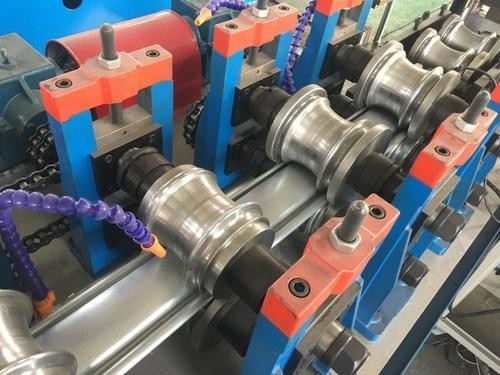

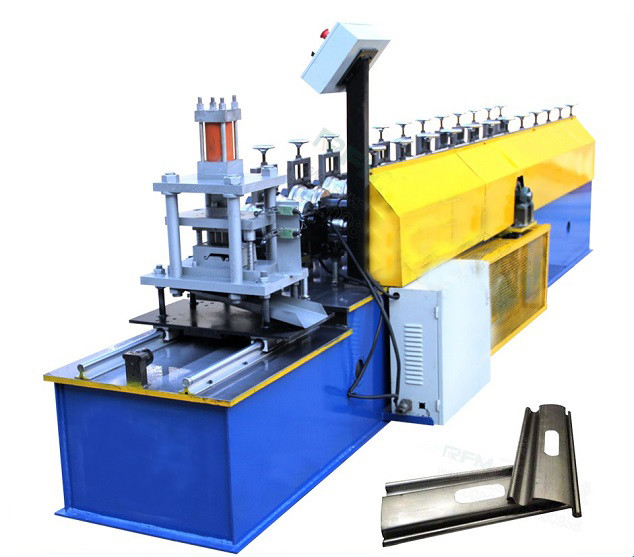

Aluminum Shutter Door Rolling Machine 380V 50Hz High Grade No.45 Forged
1. This shutter door roll forming machine is widely used for garage door /commercial door / industrial door and so on .
2. A whole shutter door main inculde three parts , shutter door salt and sliding U guide rail with bottom strip . These three part work together to give us a safity environment .
3. it can embossing different patterns according to customer's requirements. Meanwhile, it has manual and automatic two operate model, in this way, client can easy operat this machine.
As to the shutter door can protect the shop or garage well , it is very popular in the world and has a large market .
Specification
| Machine Specifications | |
| Size | About 5.6mx1.2mx1.3m(length x width x height) |
| Color | Main color: blue or as your requirement |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 0.5-0.8mm or 0.8-1.5mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 11-12 |
| Diameter of forming rollers shafts | 60mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 4kw |
| Hydraulic unit motor power: 3kw | |
| Electric voltage | According to customer’s requirement |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
