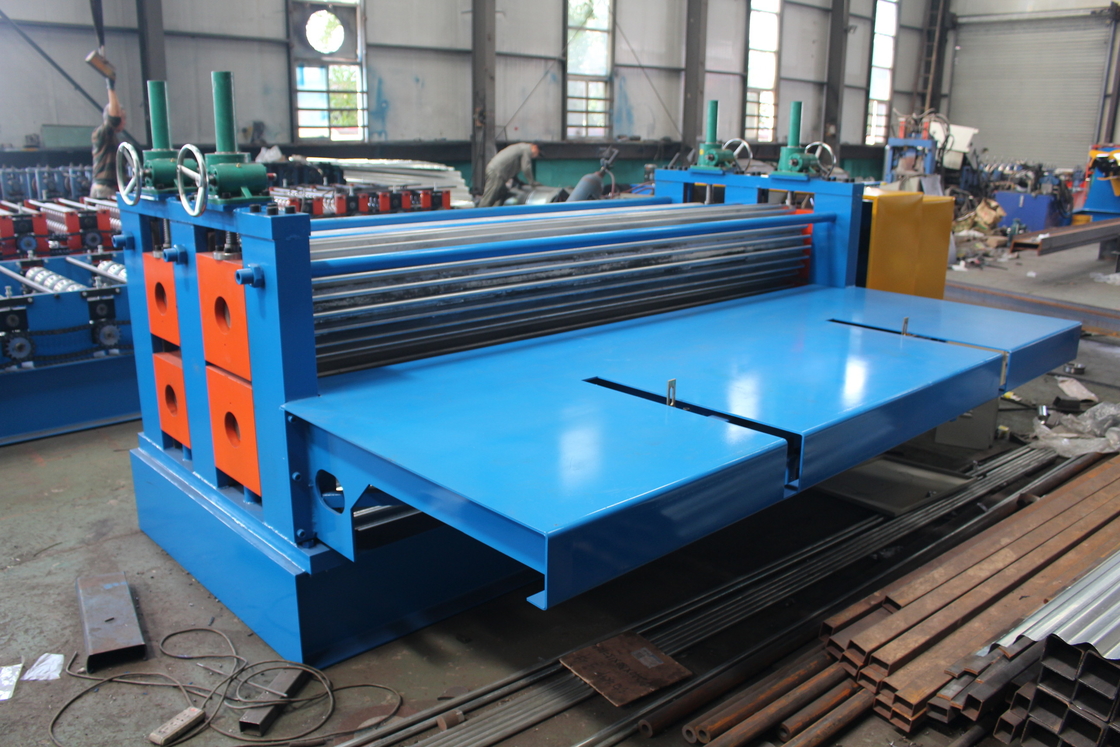

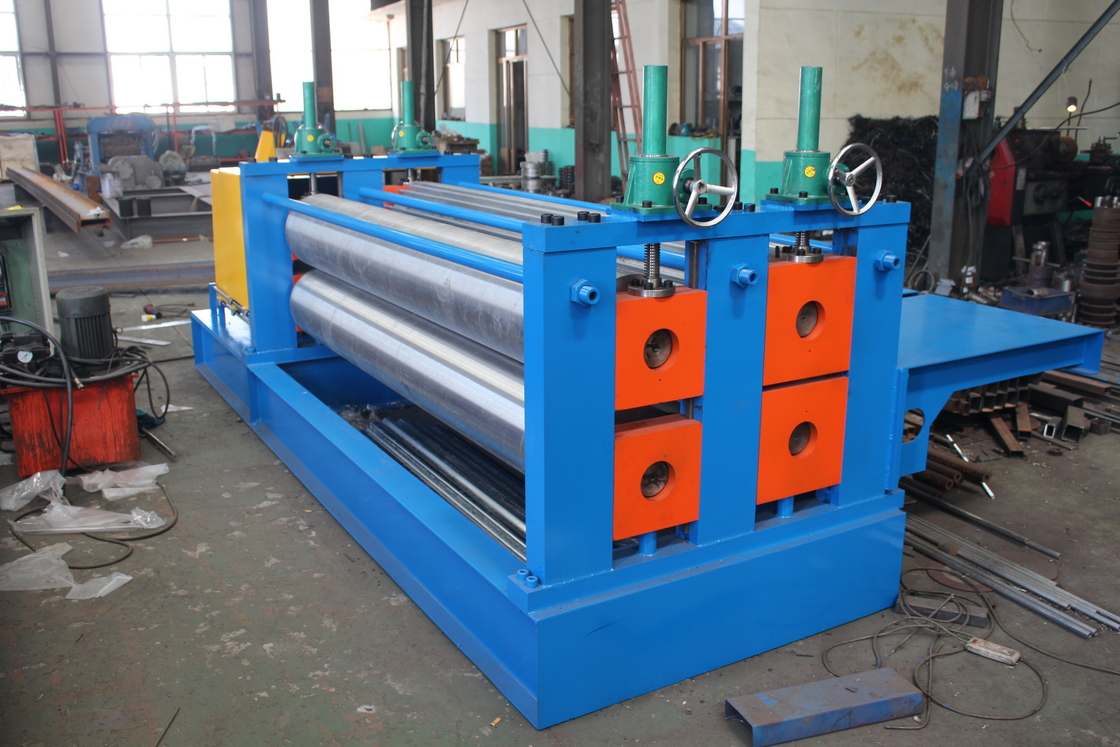

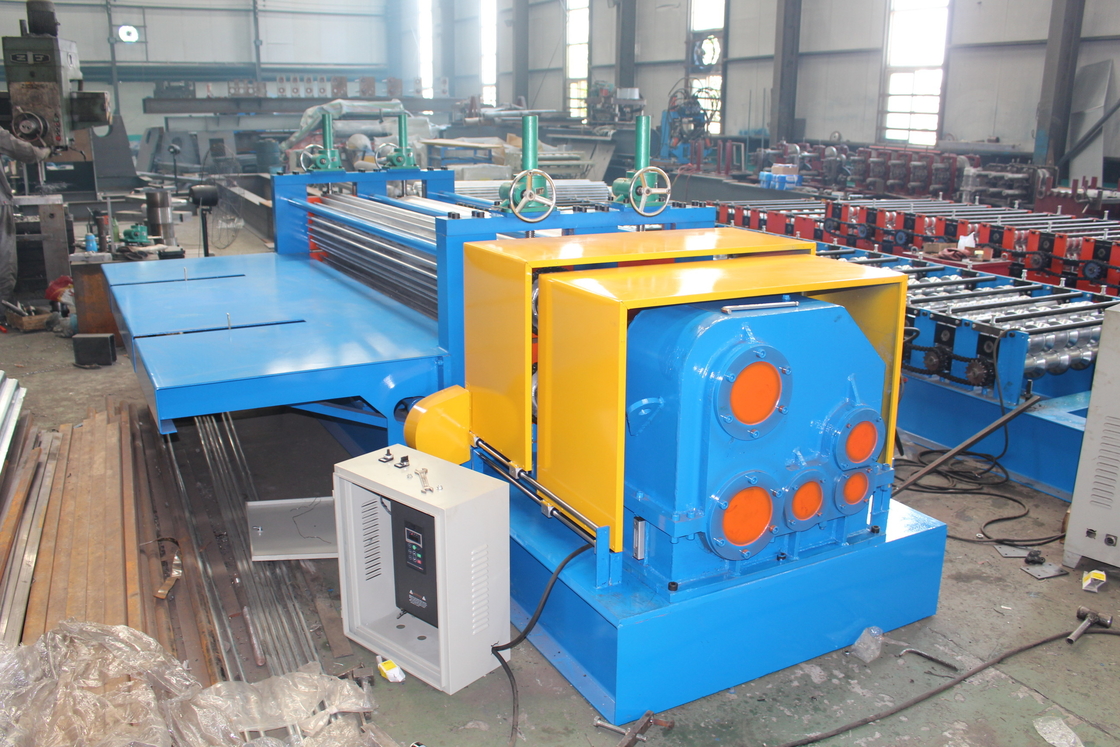

Steel Barrel Corrugated Roofing Forming Machine Suitable Material Thickness 0.1-0.25mm
Corrugated roofing machines are new types of sheet metal equipment that process horizontally or barrel-shaped sheets. As a result, it has reasonable structure, stable operation, simple product size control, high output, long service life, and simple maintenance. In order to achieve transmission and deceleration, a low-speed, high-torque, low-inertia AC motor is driven by a V-belt to a hard-tooth surface reducer with dual output shafts. Stability of the product.
Specifcation
|
1
|
Plate Material | Galvanized plate |
| Thickness | 0.1-0.25mm | |
| Wall thickness of the main forming machine |
25mm steel plate
|
|
|
2
|
Reducer |
11 kw which works stably and no noise.
|
| Rollers |
2 Roll
|
|
|
3
|
Diameter of active shaft |
350mm, 45# steel
|
| Woking Speed | 8-12m/min | |
| Material of shaft | 45# steel with chrome 0.05mm | |
|
4
|
Operate |
Automatic Hydraulic / Electric type
|
| Blade material | Cr12MOV | |
|
5
|
Electric Box | PLC control system , Inverter |
| Language | English / Chinese |
Application
Color -type pressure tiles are color -coated steel plates, which are cooled into various wave type pressure plates through rollers. It is suitable for industrial and civilian buildings, warehouses, special buildings, large span steel structures As well as internal and external wall decoration, it has the characteristics of light quality, high strength, rich color, convenient construction, earthquake resistance, fire prevention, fire prevention, rainproof, long life, maintenance, maintenance, etc., and has been widely promoted.
Payment terms
50% in advance as down payment
50% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port or CNF
The Delivery Time: 30 days after the down payment is received
