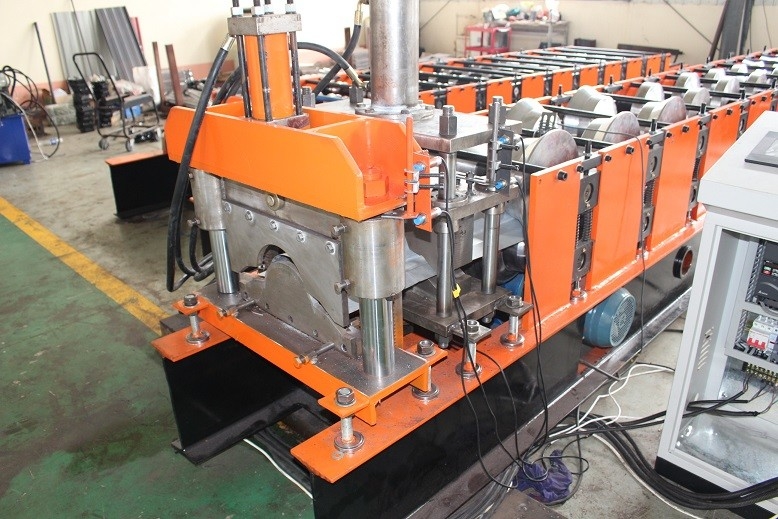

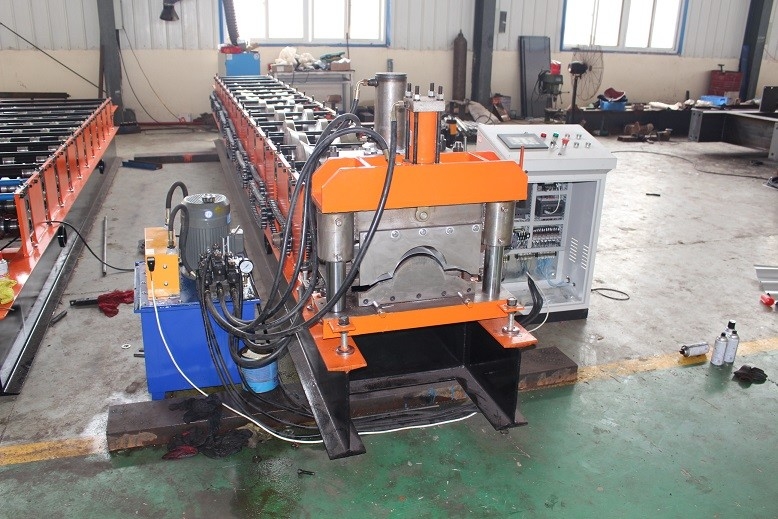

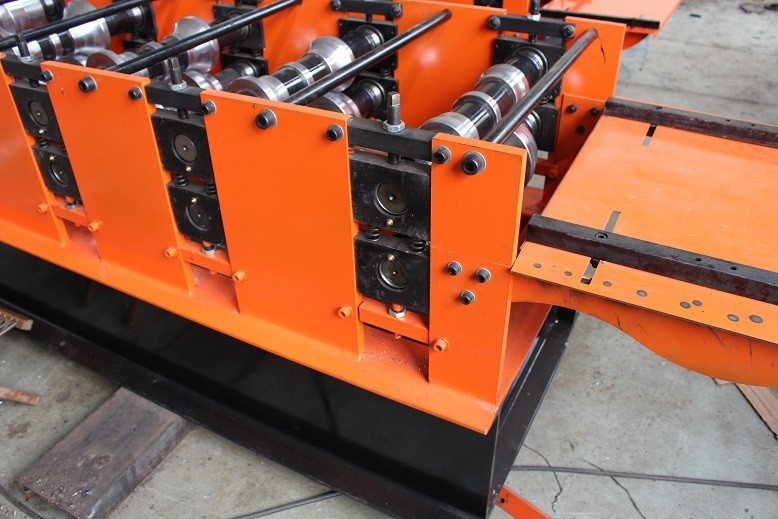

PLC Control Ridge Tile Roll Forming Machine For Roofing Building
The color steel ridge cap is a new building material, rich in color, classical and elegant, and adds the finishing touch to any building. Lightweight, strong, waterproof, easy and quick installation, and can be widely used on villa roofs, urban flat-to-slope roofs, and tourist attractions. In contrast to other materials, the combined construction of light materials and various auxiliary materials has a short construction period and a simple construction method, and it can maintain the beauty of the roof without editing and repairing. Based on arc-shaped color steel roof ridge tiles, the roof ridge tiles are more complete. Color steel glazed tiles or color steel plates are better suited to this material.
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.3-0.8mm |
| 3 | Working Speed | 20-30 m/min ( not including the cutting time) |
| 4 | Roller Station | 12 Raws |
| 5 |
Dimension (L*W*H) |
58000 mm*1200 mm*1100 mm |
| 6 | Machine Weight | 4000 KG |
| 7 |
Electrical Control System |
Delta PLC (can be customized) |
| 8 |
Drive Motor Power |
4KW |
| 9 |
Hydraulic Station Power |
4 KW |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |

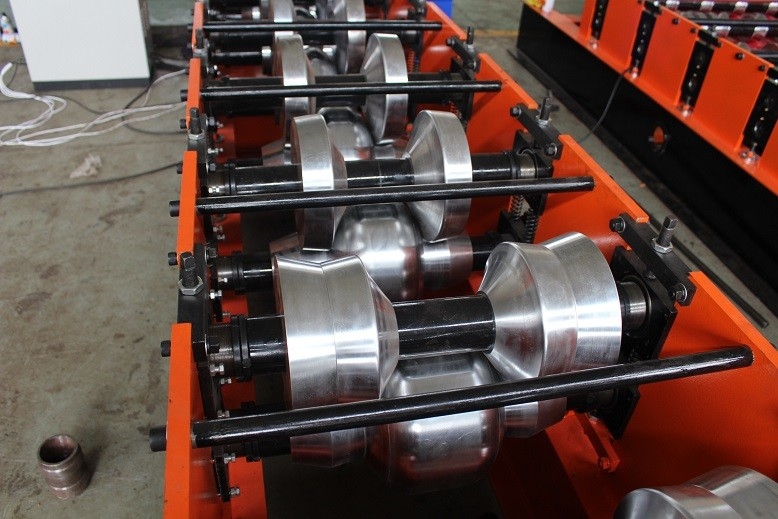

| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
The finished product of Metal Roof Ridge Cap Roll Forming Machine Roof Ridge Tiles Building Materials Machinery is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls etc. It has the advantage of its beautiful, classical appearance and grace taste
Advantage
Color steel ridge tiles have a thermal conductivity of only 1/5 of ordinary clay tiles. A color steel ridge tile is made of color coated steel plate, so it has good bearing capacity even without an insulation layer. Even in harsh environments, the color steel ridge tile surface will not be damaged or broken by snow. It is made by pressing color coated steel plate, so it does not require painting. As a result, color steel ridge tiles are remarkably durable in natural environments and can maintain their color stability even in harsh environments. Because the color steel ridge tile is made of metal, it has a low density, does not absorb water, and does not cause microporous water seepage. Furthermore, the color steel ridge tile has a large single sheet area, few roof joints, and tight joints, so it is more waterproof
