Nguồn gốc:
TRUNG QUỐC
Hàng hiệu:
FMS
Chứng nhận:
CE,ISO
Số mô hình:
Uốn cong
Băng hình

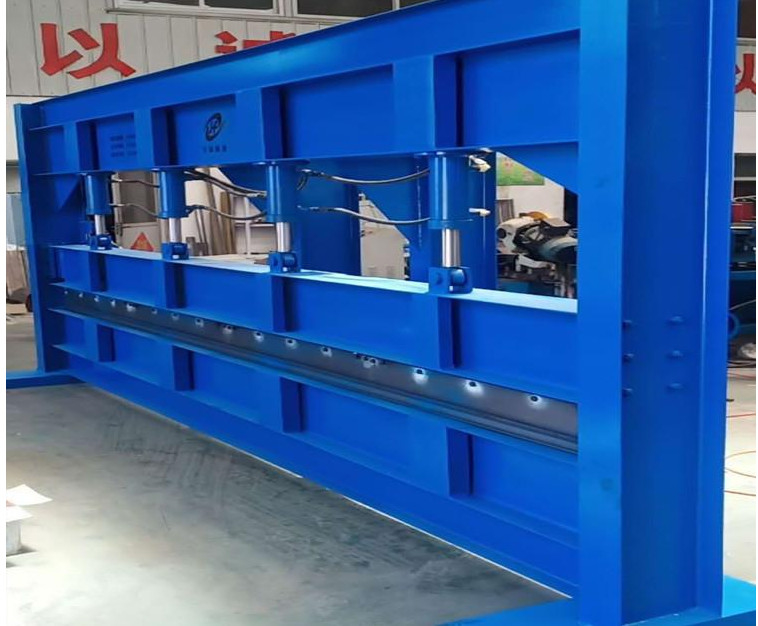

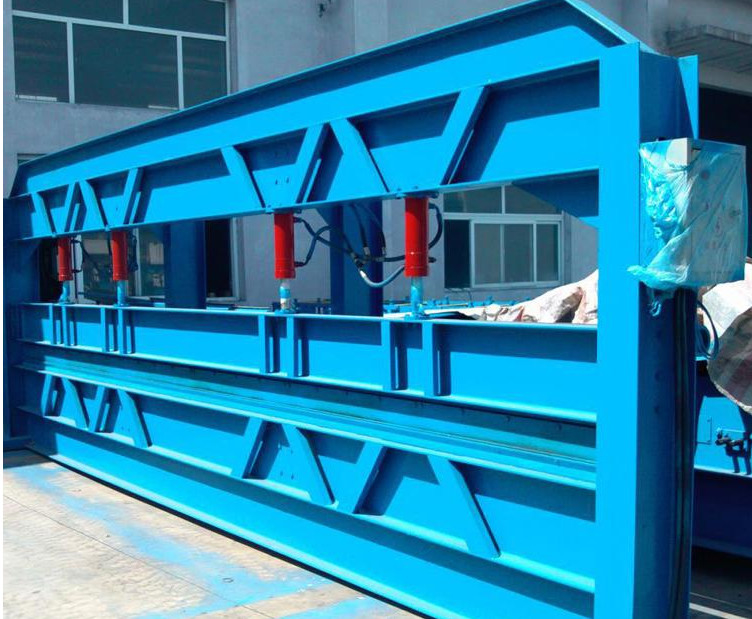

The hydraulic bending machine includes a bracket, a workbench and a clamping board. The workbench is placed on the bracket. The workbench is composed of the base and the pressure plate. The base is connected to the clamping plate through the hinge. Placed in the depression of the shell, the top of the depression is covered with a cover. During use, the wire is powered on the coil. After power is powered, the pressure plate is gravitational, so as to achieve the clamping of the plate between the plate and the base. Due to the use of electromagnetic clamping, the pressure plate can be made into multiple workpieces requirements, and the workpieces with side walls can be processed.
Equipment Detailed Parameters:
| No. | Main parameter | |
| 1 | Suitable to process | color steel plate, steel plate, galvanized sheet and so an. |
| 2 | Raw material thickness | 0.2 ~ 1 mm |
| 3 | Bending Angle | 30° 45° 60° 90° 130° |
| 4 | Motor power | 3KW |
| 5 | length | as per requested |
| 6 | Material | prepaitned steel |
| 7 | Warranty of core components | 1 Year |
| 8 | Voltage | 380V 50Hz 3phases |
| 9 | Core Components | Motor, PLC |
| 10 | length | 6m |
Advantage
The hydraulic transmission, the oil cylinder at both ends of the machine tool is placed on the slider, driving the sliding work directly. The mechanical block structure is adopted to be stable and reliable. The slider itinerary is quickly adjusted, manually fine -tuned, counter display. The full steel welding structure has sufficient strength and rigidity. The slider synchronization agency uses a twist axis forced synchronization. The diagonal wedge deflection compensation agency is used to ensure a higher bending accuracy.
