Nguồn gốc:
TRUNG QUỐC
Hàng hiệu:
fms
Chứng nhận:
CE,ISO
Số mô hình:
IBR 6 sườn
Băng hình
Băng hình

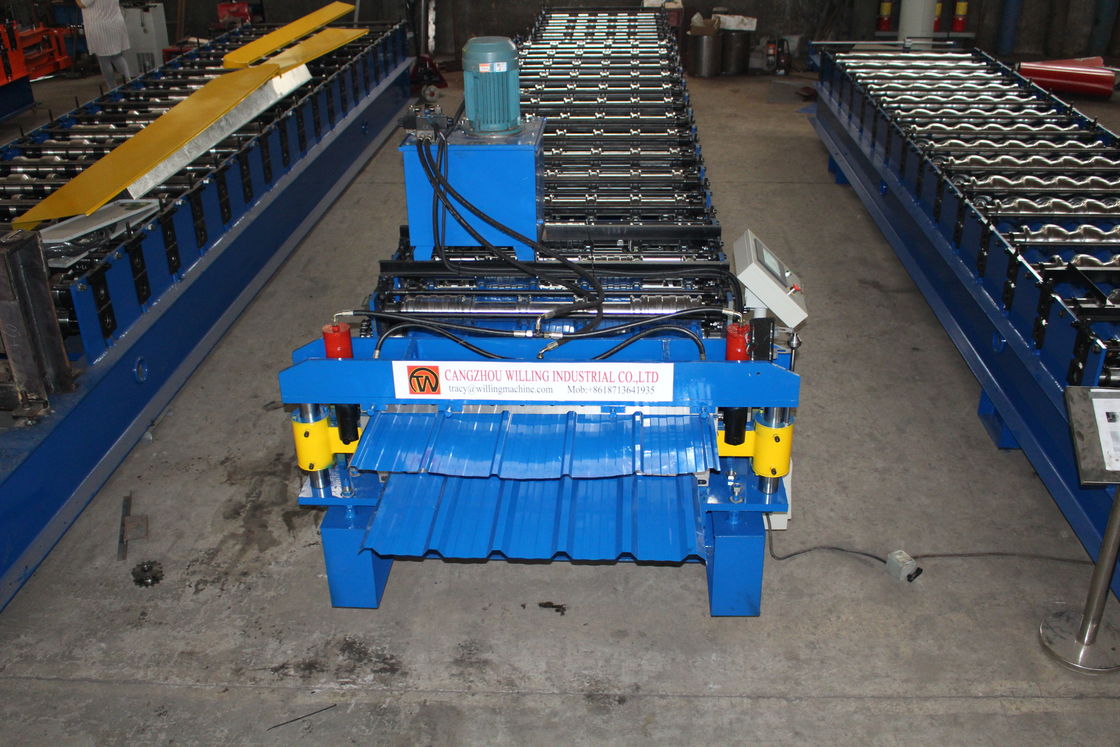

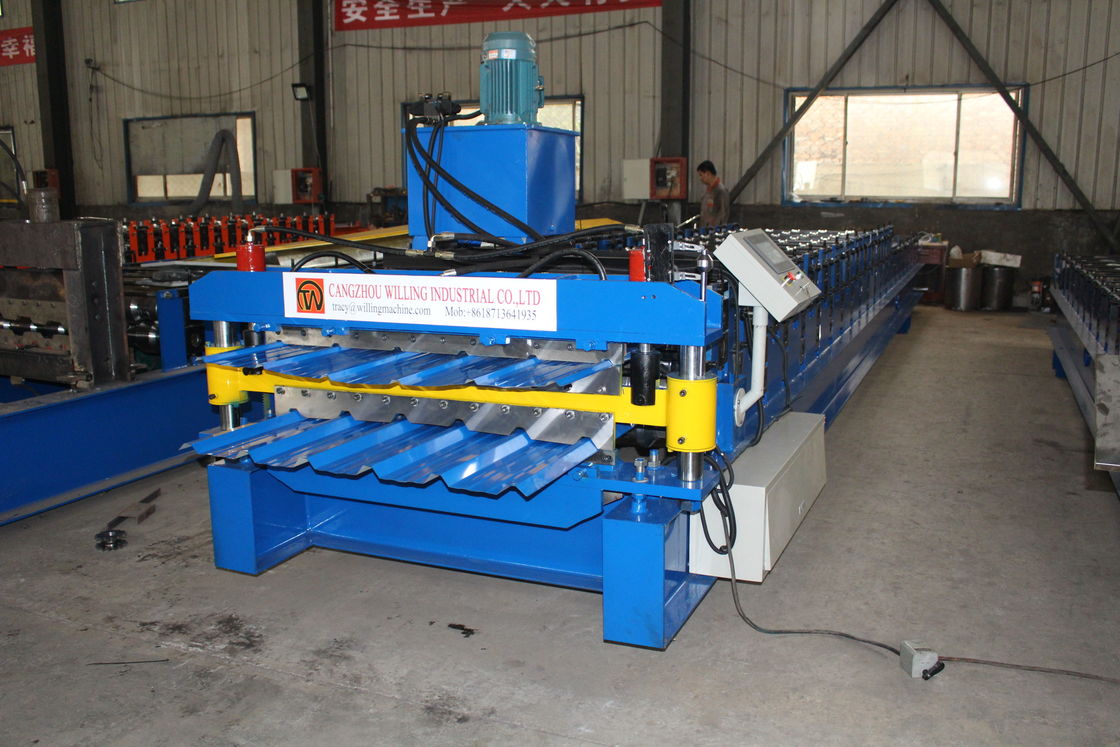

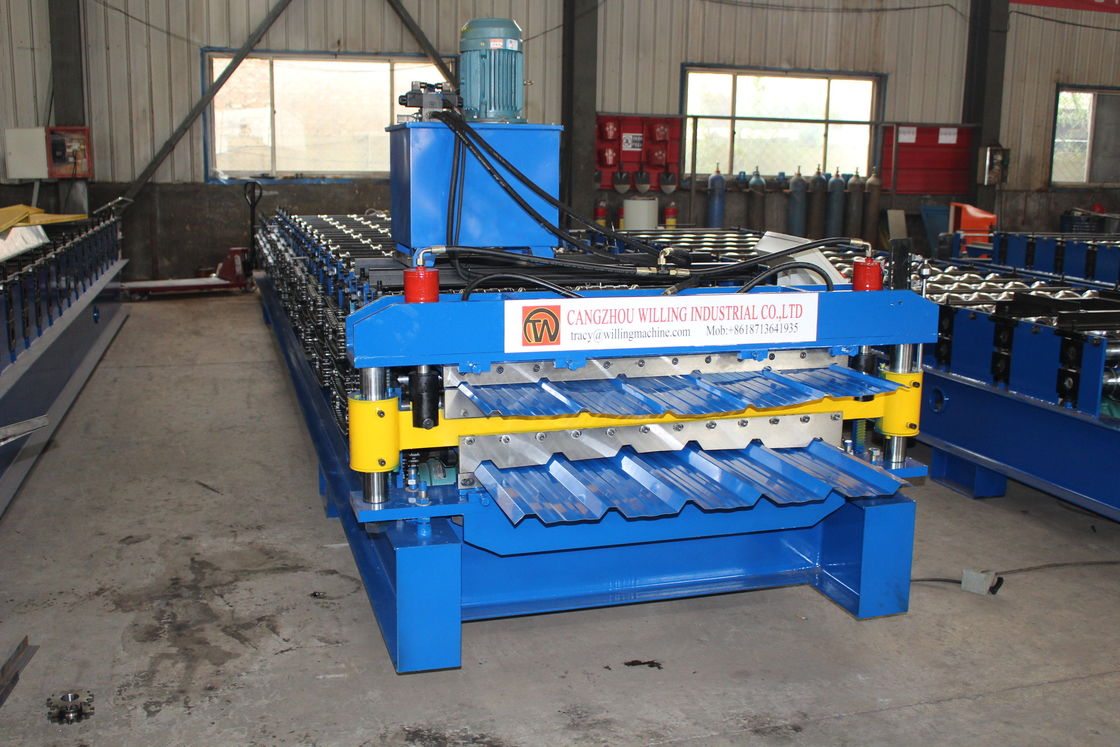

Trapezoid Type 6 Rib Roof Tile Roll Forming Machine 3 Phase
It makes colored steel roof plates of different shapes, which are used in buildings, factories, supermarkets, etc. For this machine, it is suitable for winding width of 1250mm and thickness range from 0.2 mm to 0.6 mm. We use the 16 mm thick wall panel type to make the rack strong. Generally, it can run to 15m/min at the highest speed. PLC and touch screen operation make the machine easy to use.
| Main motor power | 5.5kw |
| Drive | 1'' single chain |
| Type: | Wall board |
| Main shaft dia | ¢70mm |
| material | 45# forge steel and quenched |
| Roller material | 45# high grade forge steel ,chrome coated 0.05mm |
| Roll station | 18 groups |
| Raw material | 0.2-0.6mm |
| Coil width | 1250mm |
| Working speed | 7m--15m/min(Exclude cutting time) |
| Length Tolerance | ±1.5mm |
| Weight of machine | About 5 ton |
| Size of machine | About 6300×1200×1500mm L x W x H |
| Color of machine | as per request |
| Coder | Omron, made in Japan |
| Control | PLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client) |
| Computer operating panel | touching screen |
| Other electrical element | Schneider |
| Cutting | Hydraulic cutting. Auto cutting when reach the set length |
| Hydraulic power | 3KW |
| Blade material | Cr12mov,quenched 58°-62° |
| Working pressure | 16mpa |
| Cutting tolerance | +/- 1.0mm |
Advantage
has the characteristics of light weight, high strength, rich color, convenient and fast construction, earthquake resistance, fire resistance, rain resistance, long life, and maintenance-free. It has been widely promoted and applied
Application
Color profiled steel plate is a profiled plate that adopts color coating steel plate and is rolled and cold-formed into various wave shapes. It is suitable for industrial and civil buildings, warehouse special buildings, and large-span steel structure houses. Wall decoration, etc
