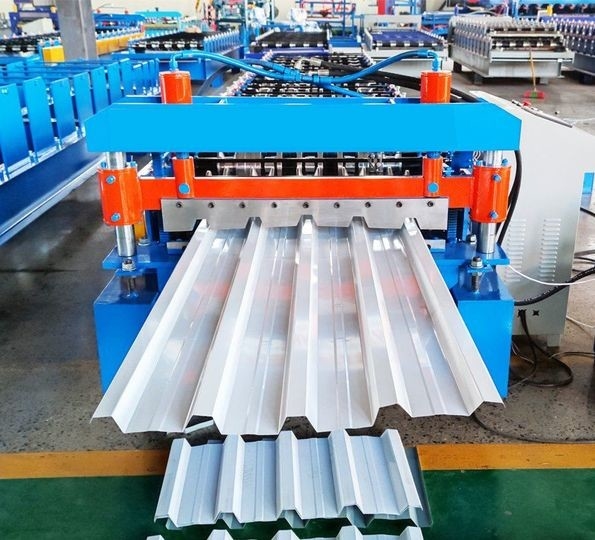

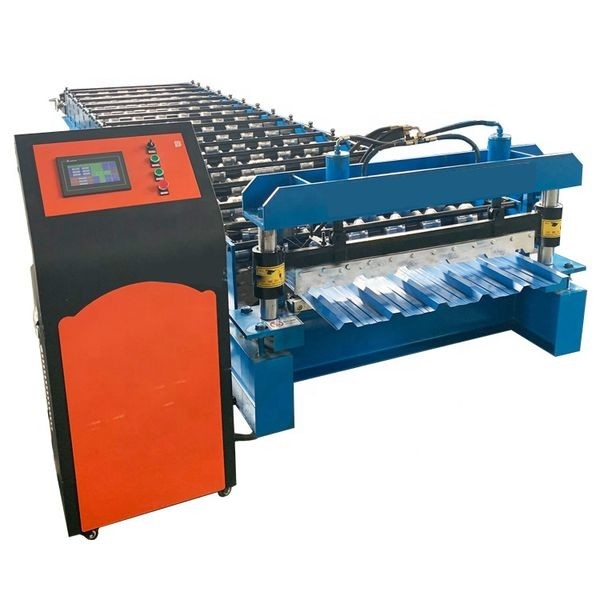

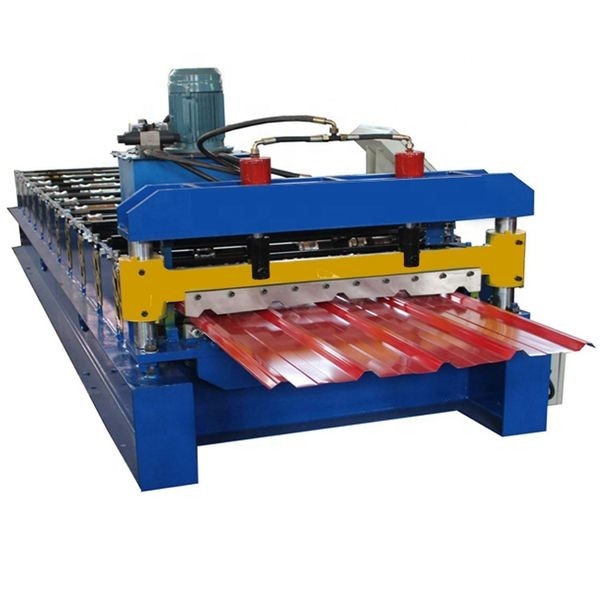

Trapezoid Hydraulic Shearing IBR Roll Forming Machine With Automatic Control

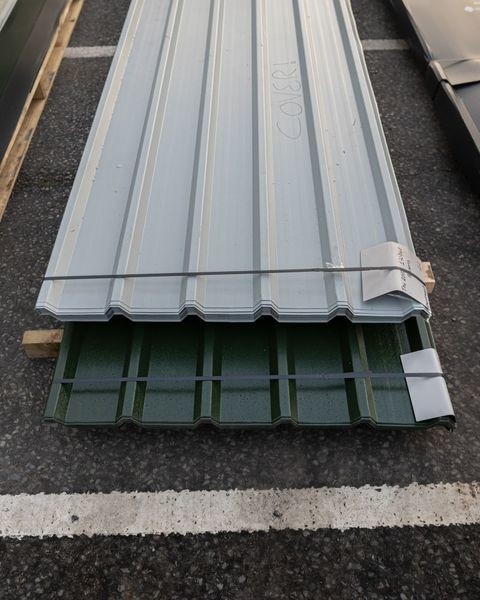

This machine takes GI/PPGI as raw material, through a series of steps and can produce the barrel type roofing sheets.
The inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.
Specification
| No. | Item | Description |
| 1 | Coil | GL,PPGI, Aluminum |
| 2 | Raw Material Thickness | 0.3-0.7mm |
| 3 | Working Speed | 15-20 m/min ( not including the cutting time) |
| 4 | Roller Station | 12 Raws |
| 5 |
Dimension (L*W*H) |
5500 mm*1200 mm*1100 mm |
| 6 | Machine Weight | 4500 KG |
| 7 |
Electrical Control System |
Delta PLC (can be customized) |
| 8 |
Drive Motor Power |
4KW |
| 9 |
Hydraulic Station Power |
3.5KW |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
±2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
70 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining, Plated Hard |
Application
FMS produce wide range products of metal sheet cold roll forming machines as follows:
1) for Metal Building Industry,like quick change CZ purlin machine, light gauge steel framing machine ,roof panel forming machine, corrugated panel roll forming machine, curving machine, glazed tile roll forming machine, floor decking machine, ridge cap roll forming machine, cladding facade system forming machine, cut-to-length slitting line , hydraulic shearing machine, hydraulic folding machine for gutter and flashing, etc..
Advantage
1. We use International quality standard.
2. Adopting advanced world famous brand components in computer parts. Like Siemens, Schneider, Sony, etc.
3. Running in a high automatization and intellectualization, no pollution.
.
