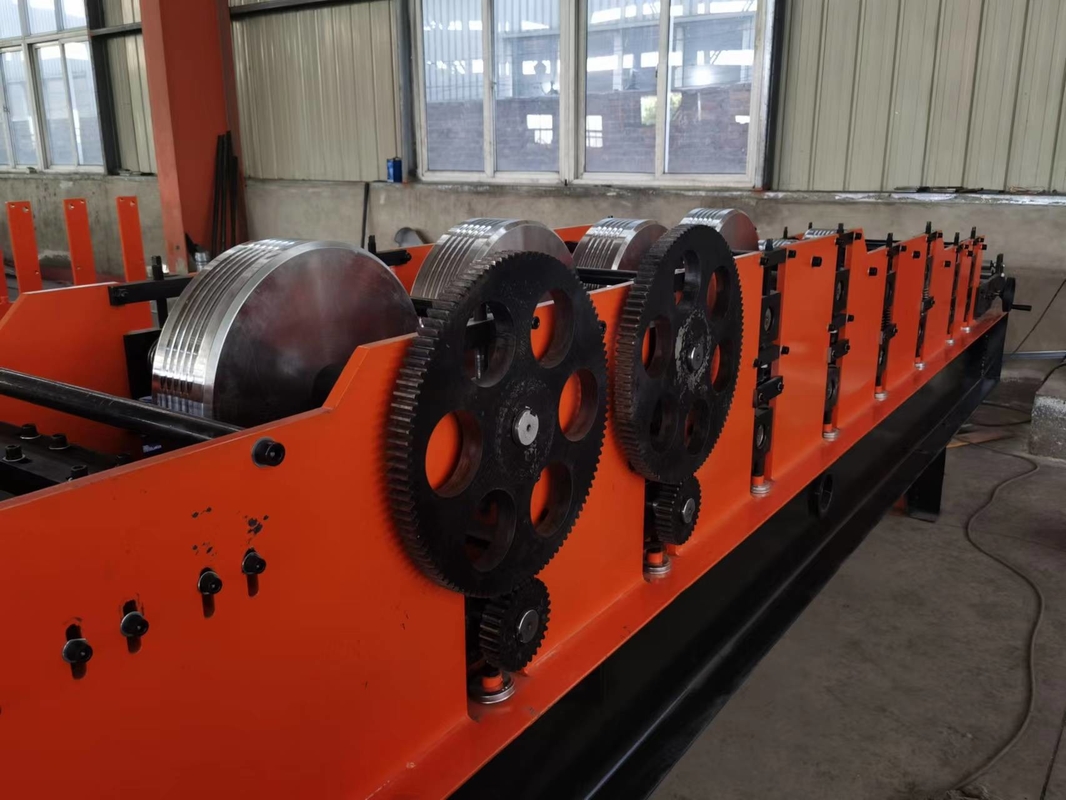

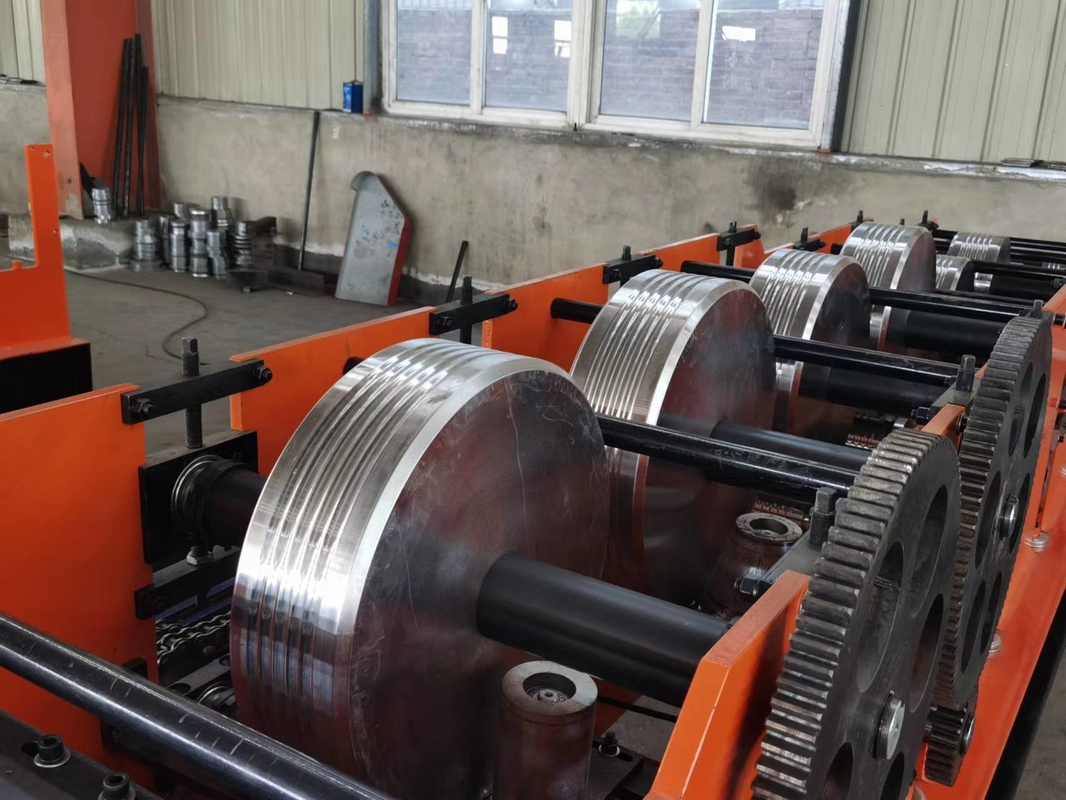

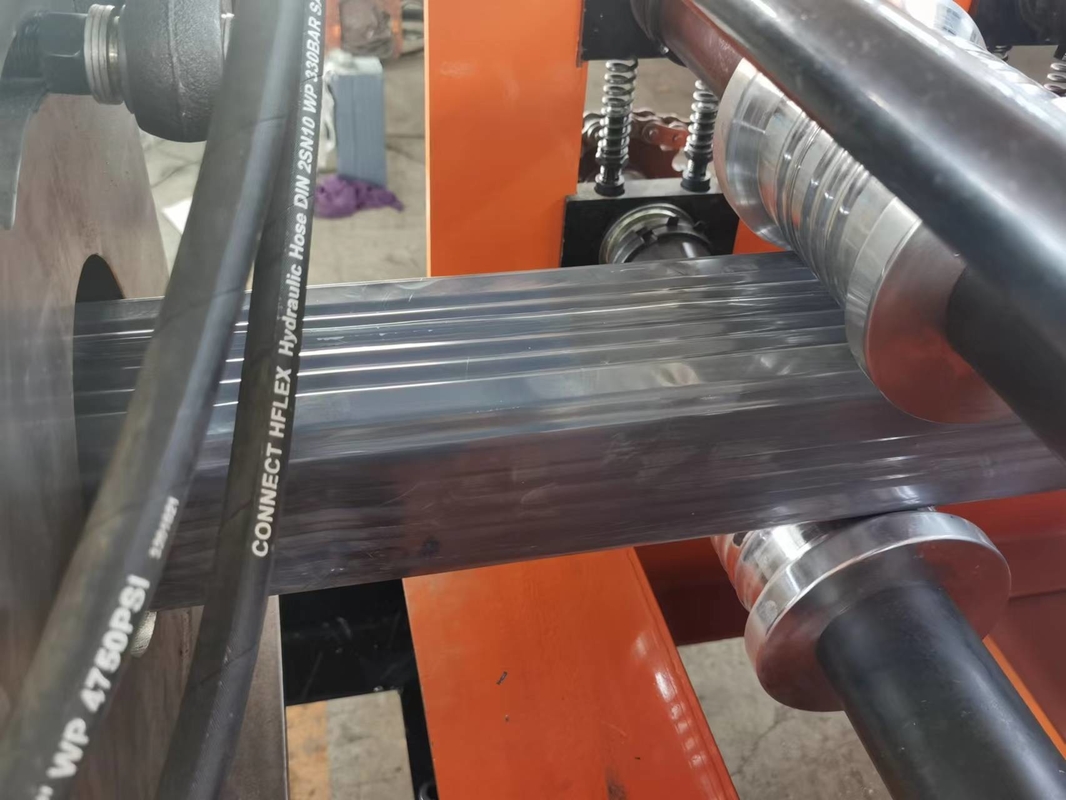

Rain Pipe Down Spout Roll Forming Machine Hydraulic Cutting System
Metal downspout is made by using the color steel or GGPI coils roll-pressing and end-closing, then use the special equipment hit-to-bend and necking. Metal drainage system has the excellent weather fastness. It has the advantages such as simple design, easy installation, safe and durable, elegant. It is widely used in the modern villas and multiple raises buildings. LBM is producing the high quality downspout roll forming machines and export to US India, Bangladesh, Vietnam, Turkey, etc.
Specification
| No. | Item | Description |
| 1 | Coil | PPGI |
| 2 | Raw Material Thickness | 0.3 mm - 0.8 mm |
| 3 | Working Speed | 8-15 m/min |
| 4 | Roller Station | 24 Stations |
| 5 |
Dimension (L*W*H) |
7500 mm*800 mm*1200 mm |
| 6 | Machine Weight | 6000 KG |
| 7 |
Electrical Control System |
PLC |
| 8 |
Drive Motor Power |
5 KW |
| 9 |
Hydraulic Station Power |
4 KW |
| 10 |
Power Supply |
380V, 60HZ, 3 PHASES(can be customized) |
| 11 |
Cutting Accuracy |
± 2 mm |
| 12 |
Driving Mode |
Single Chain 1 inch |
| 13 |
Material of Shaft |
60 mm 45#steel forged |
| 14 | Material of Roller |
45# Steel Finish Machining |
Advantage
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable
Guarantee
Maintenance and replacement of spare parts are free for customers during the warranty period (except for damage caused by human factors or natural disasters.) And technical support is provided for life.
We can design and manufacture the machine according to the client's specifications! CE-certified machines, guaranteed quality. Send us the profile drawing with your inquiry.
Payment terms
40% in advance
60% is paid before shipping
