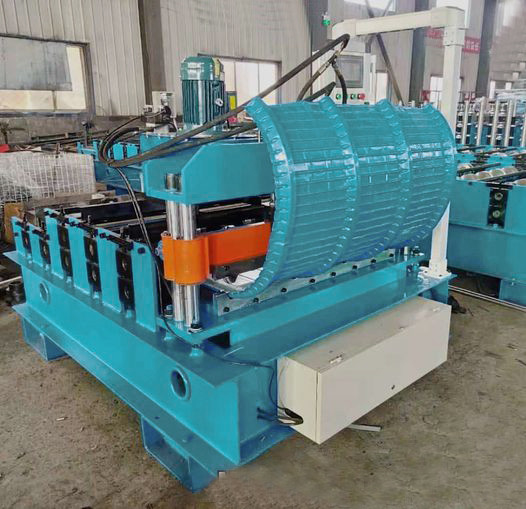

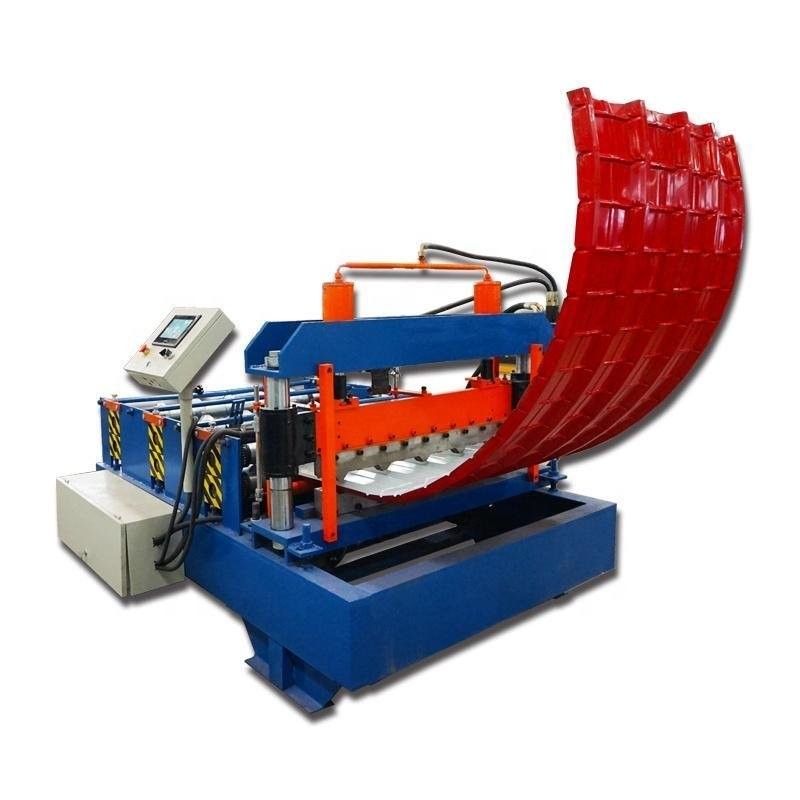

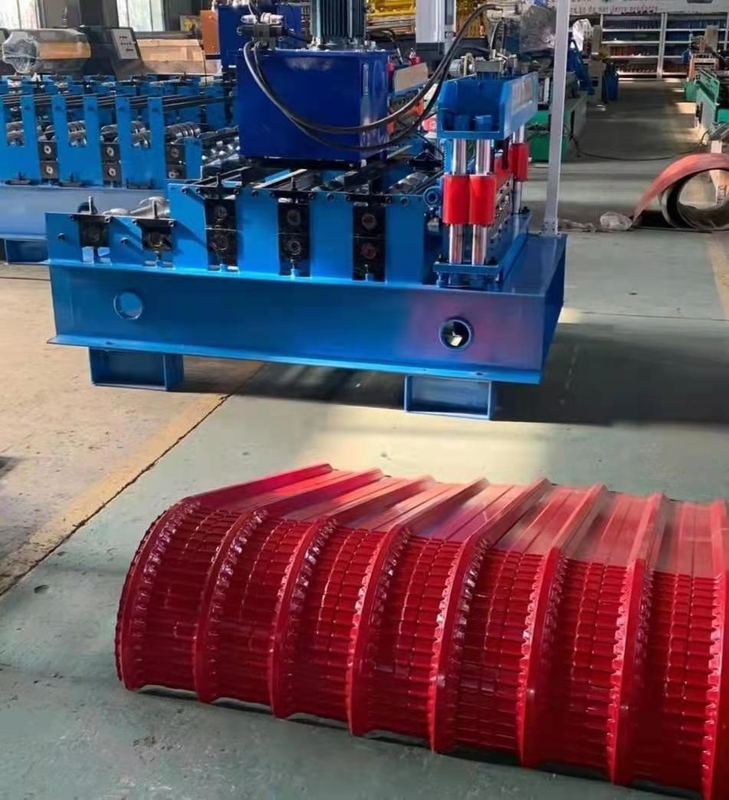

Hydraulic Automatic Curving Machine Curved Roof Can Bend Larger Roof
Hydraulic Automatic Curving Machine Curved Roof Can Bend Larger Roof:
Uncoiler ----- Molding core ----- Hydraulic System ----- Automatic Control system ----- Step Formed Mechanism
-----Automatic Shearing Mechanism ----- Products Receiving Tables
This stand seam roof curving machine is for curving the stand seam roof into concave and convex shape, 3 steps roll forming and choose gear transmission. It can both curve aluminum sheet and metal steel shee, this type of standidng roof can build more beautiful steel house and big sport hall. So small design, you can take this machine for your steel building project anywhere.
Specification
| Hydraulic Automatic Curving Machine Curved Roof Can Bend Larger Roof | |
| Material thickness | 0.3-0.8mm |
| Diameter of shaft(solid shaft) | 70mm |
| Material of shaft (solid shaft) | (high grade) 45# Steel, quenching and tempering treatment |
| Material of roller | 45# steel polished and coated with chrome HRC55-60° |
| Reducer | 8# cycloid reducer (high grade) |
| Cutting | hydraulic cutting after roll forming |
| Control system | PLC Frequency Control System with touch screen |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received
