CU Drywall Stud And Track Channel Roll Forming Machine High Speed

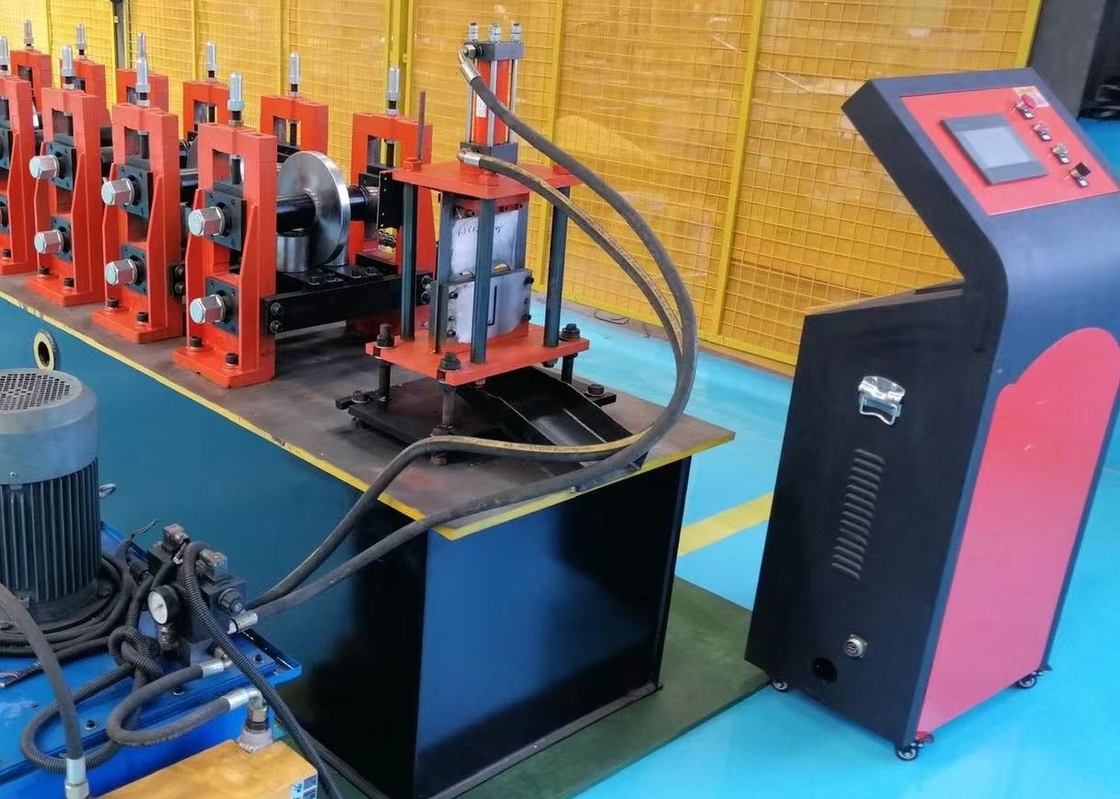

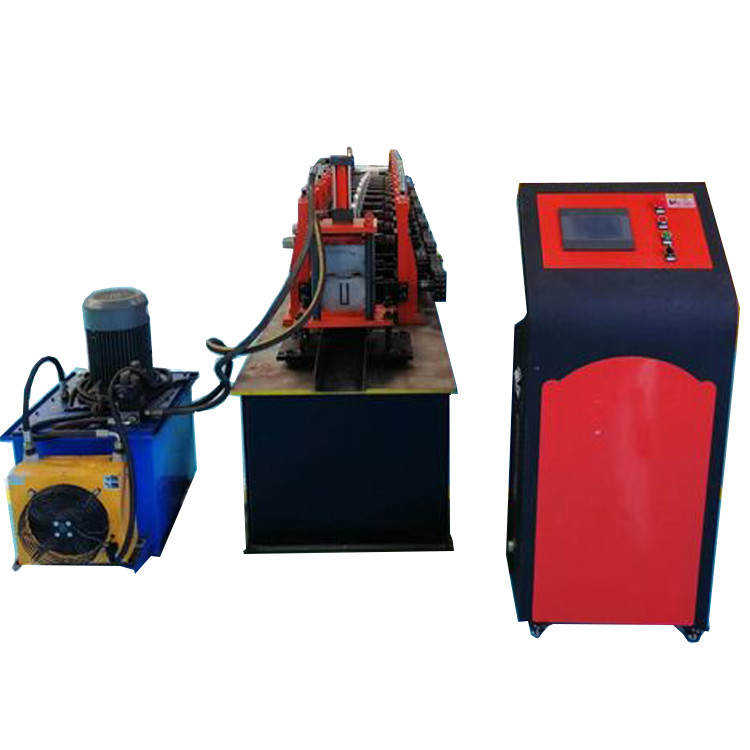

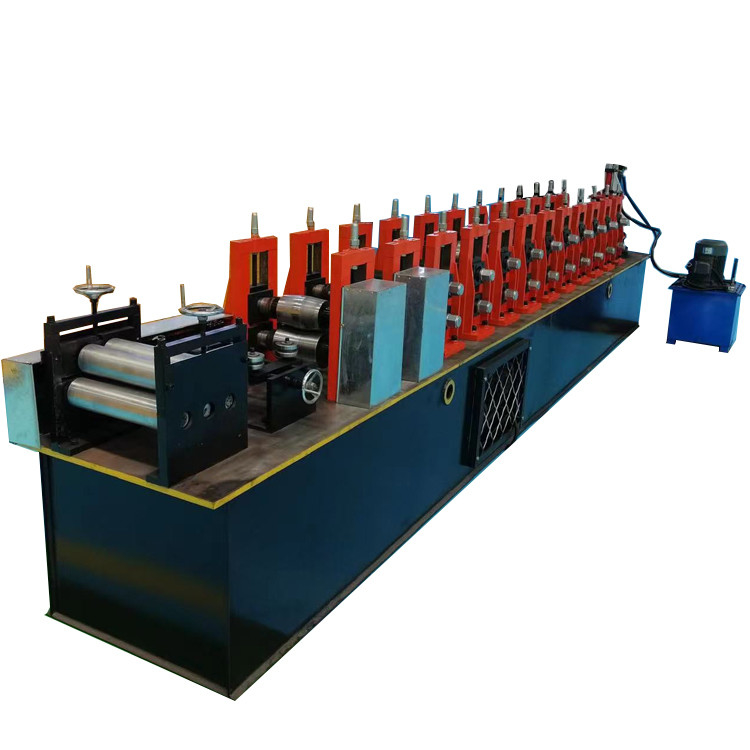

CU Drywall Stud And Track Channel Roll Forming Machine High Speed,usually consists of manual decoiler, a feeding guide unit, a punching tool, a roll forming unit, a cutting unit, a transmission unit, a hydraulic unit, a control unit, and run-out tables. , can make stud and track , omega , angle , ceiling profiles . Customer only need to provide us the section drawing , we can design accordingly .
Specification
|
Main motor power
|
5.5kw
|
|
Hydraulic motor power
|
4kw
|
|
Hydraulic Pressure
|
10-12MPa
|
|
Voltage
|
380V/50HZ/3Phase
|
|
Control System
|
PLC (Delta brand)
|
|
Feeding Material
|
Galvanized steel
|
|
Feeding Thickness
|
0.3-0.8mm
|
|
Speed
|
30-50m/min
|
|
Roller station
|
14 rows
|
|
Shaft diameter
|
60mm
|
|
Shaft material
|
45# steel
|
|
Roller material
|
45# steel
|
|
Cutter material
|
Cr12 quenched
|
|
Dimension
|
10500*1400*1500mm
|
|
Weight
|
about 5500 kg
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
