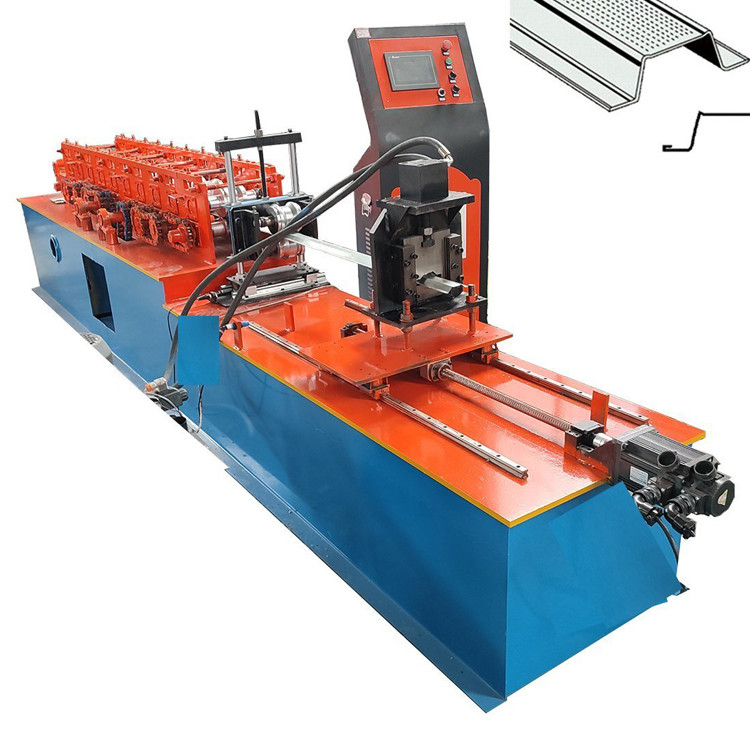

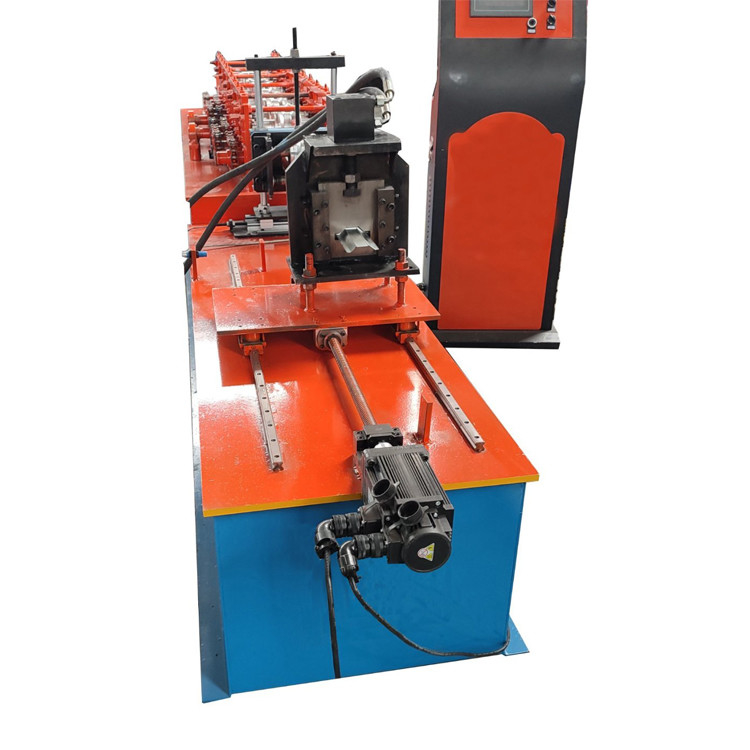

Omega Profile Roll Forming Machine Omega Channel Roll Forming Machine
Omega channel/furring channel type widely used in hotels, terminals, train stations, stations, playgrounds, shopping malls, factories, office buildings, old building,renovation, interior decoration settings, ceilings,etc. the Omega furring channel raw material thickness 0.3-1.0mm, the raw
material is galvanized sheet , the machine is non-stop cutting ,speed 20-40m/minute, we also can make machine as your requirement.
Specification
| Article No. | Item Name | Specification |
| 1 | Width of feeding material | As the tile profile |
| 2 | Thickness of feeding material | 0.3-0.8 mm coil sheet |
| 3 | Roller station | 10 stations |
| 4 | Shaft Diameter | 60 mm |
| 5 | Productivity | 20-55 m/min |
| 6 | Rollers' material | 45# steel with 0.05mm chrome |
| 7 | Shaft material | 45# steel with 0.05mm chrome |
| 8 | Weight | 1.6 tons |
| 9 | Size | 5*0.8*0.9m |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Control | PLC |
| 12 | Decoiler | 3 tons |
| 13 | Motor | 4 kw |
| 14 | Driving way | Chain transmission |
| 15 | Chain size | 1.2 inch |
| 16 | Cutting system | Hydraulic cutter |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
