Nguồn gốc:
Trung Quốc đại lục
Hàng hiệu:
CANGZHOU FMS
Chứng nhận:
ISO CE
Băng hình

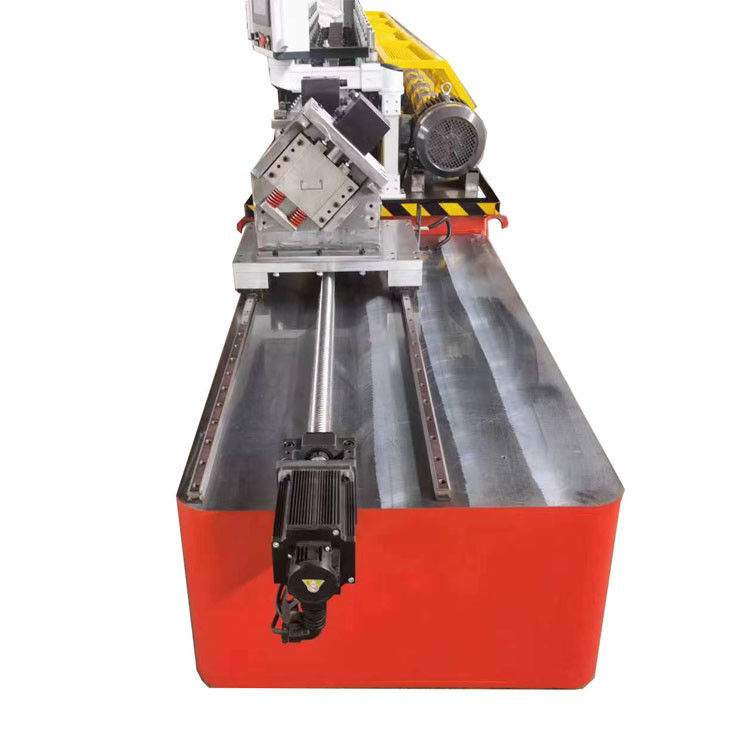

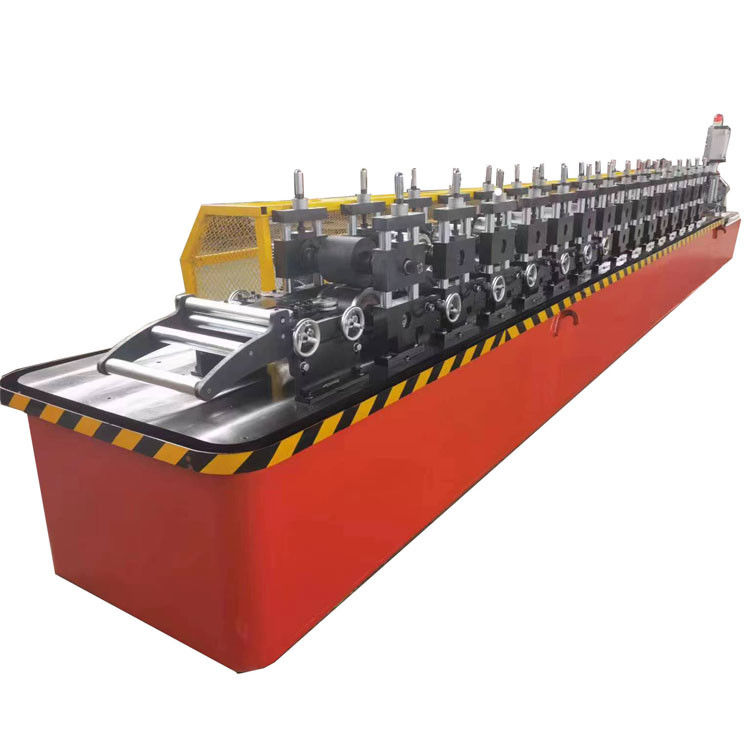

Metal Stud And Track Forming Machine For Light Construction Use
Decoiler ( Selectable configuration ):
Optional configuration ): Hydraulic decoiler; Loading Lecel: 5tons(common), 8tons, 10tons, 15tons or as requirement;
Loading Width: Max. 1250mm or 1450mm (common);
Loading Inner Diameter: φ450-550mm;
Loading Outer Diameter: Max. φ1500mm
Forming station :
Post Hydraulic Cutting Device ,Fly- Cutting,pieces type of cutting blade design, no blanking
Hydraulic motor:5.5 KW ;
Cutting tool material: Cr12MoV
The cutting power is provided by the main engine hydraulic station
Specification
| Roll forming machine |
Feeding device | Platform, the width is adjustable |
| Roller stations | 16 stages The distance between 2 stages is 443mm |
|
| Roller shaft | Shaft material: 45# steel | |
| Shaft diameter: φ70 mm | ||
| Roller | Roller material: 45# steel | |
| Roller spacer | Anti rusty treatment | |
| Work speed | 60m/min | |
| Main structure | Middle plate weld with structure | |
| Motor power | 5.5KW | |
| Transmission | 1.0INCH CHAINS | |
| Machine basic frame | 400# H steel welded with diagonal bracing inside | |
| Bearing | Chinese famous brand |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
