Nguồn gốc:
Trung Quốc đại lục
Hàng hiệu:
CANGZHOU WILLING
Chứng nhận:
ISO CE
Số mô hình:
Đường may đứng khóa Snap
Băng hình
Băng hình
Băng hình

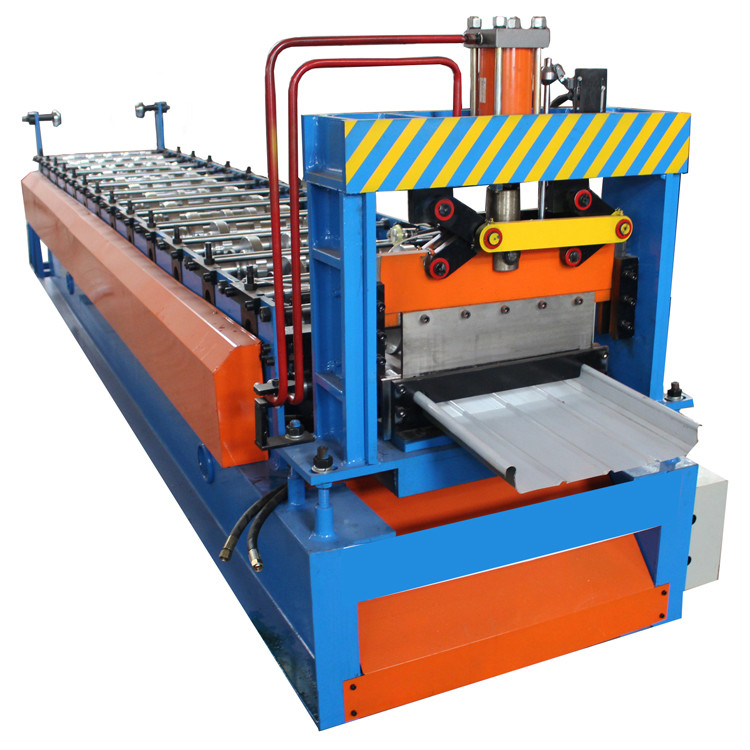

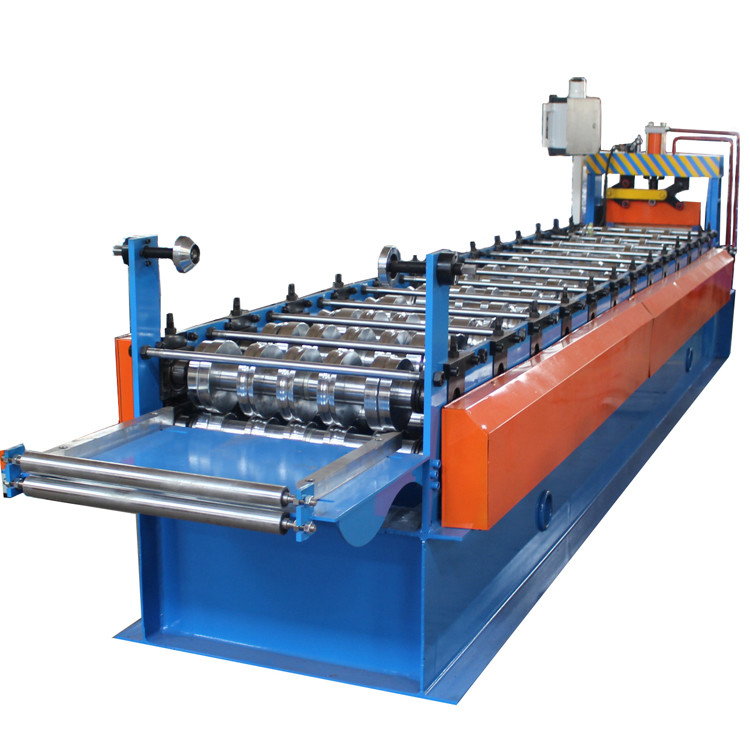

Standing Seam Roofing Panel Roll Forming Machine Portable Full Automatic
The advantages of Standing Seam Roofing Panel Roll Forming Machine Portable Full Automatic are as follows:
1.Low cost, light weight but high strength, short building period, and re-cycle use
2.can produce KALZIP,LYSAGHT,BEMO,KINGSPAN style Standing Seam Roof Panel
3.Easy operation, low maintenance cost
Standing seam roof panel machine rollers:
Rollers manufactured from high quality 40Cr steel, CNC lathes, Heat Treatment.with black treatment or Hard-Chrome Coating for options. Body frame made from 350# H type steel by welding.
Standing seam roof panel machine post cutter:
Made by high quality mold steel Cr12 with heat treatment.Cutter frame made from high quality 20mm steel plate by welding.hydraulic motor: 4KW, Hydraulic pressure range: 0-16Mpa
Specification
| No. | Item | Description |
| 1 | Coil | Galvalume, Galvanized, PPGI, Aluminum |
| 2 | Main motor | 5.5KW*2 |
| 3 | Forming speed | 15-18m/min |
| 4 | Cut-to-length tolerance | ≤±2 mm |
| 5 |
Dimension (L*W*H) |
8.5M x 1.5M x 1.2M |
| 6 | Machine Weight | 8310 kg |
| 7 |
Electrical Control System |
Panasonic PLC (can be customized) |
| 8 |
Drive Motor Power |
5 KW |
| 9 |
Hydraulic Station Power |
4 KW |
| 10 |
Cutting Accuracy |
±2 mm |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
