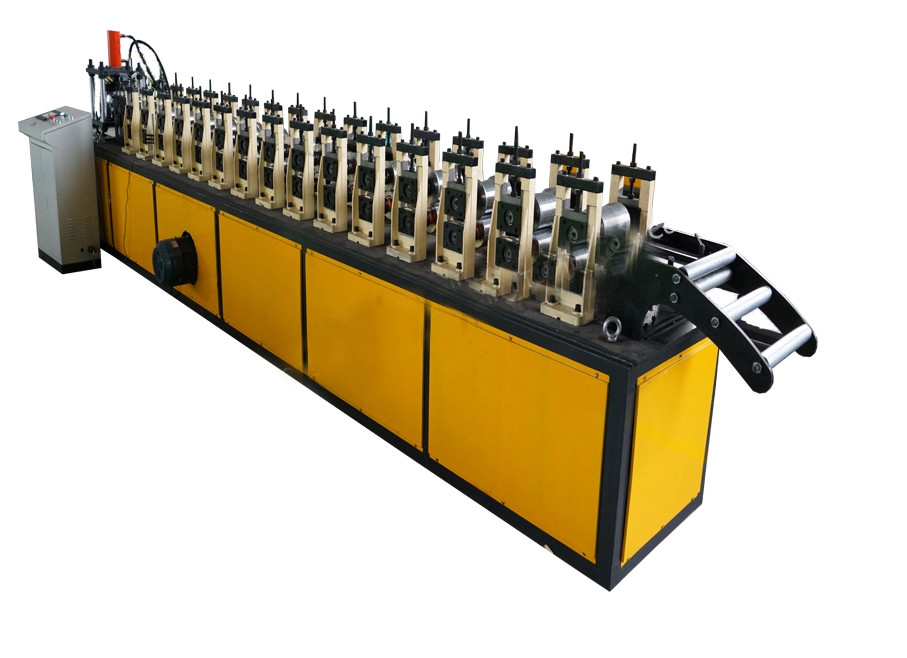

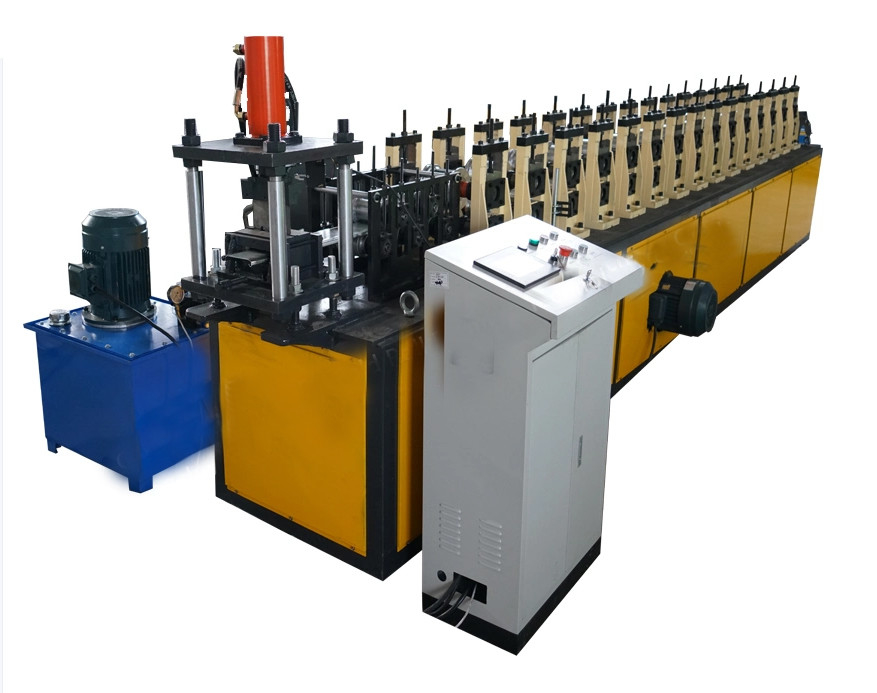

Ondulado Shutter Door Roll Forming Machine For Zinc Aluminium 0.12-0.4MM Thickness
Ondulado Shutter Door Roll Forming Machine For Zinc Aluminium 0.12-0.4MM Thickness.
CANGZHOU FAMOUS INTERNATIONAL TRADING CO, LTD is a large enterprise specialized in galvanized/galvalume/color steel coil,hot/cold steel coil,all kinds of roofing sheet ,roofing machine and so on products .In order to meet thr requirements of customers ,there are four main sectors in our company ,which are purchase ,sales,storage and transportations .With highly effective operations ,reasonable prices and timely delievery ,our company have established a well-known brand in the steel industry and have won high praise of customers and colleagues .
Specification
| NO. | |||
|
1. |
Raw material |
Type | GI&PPGI |
| Thickness | 0.3-0.8mm | ||
| Yield strength | 235Mpa TO 350Mpa | ||
|
2. |
Decoiler |
Operation | Manual/Hydraulic for option |
| Weight apacity | 5tons | ||
|
3. |
Main body |
Roller station | 12 stations |
| Diameter of shaft | 70mm | ||
| Material of rollers | 45# steel with chrome 0.05mm | ||
| Material of shaft | 45# steel with chrome 0.05mm | ||
| Frame | 350mm H-Beam | ||
| Chain | 1inch | ||
|
4. |
Cutter |
Operate | Automatic hydraulic type |
| Blade Material | Cr12MOV | ||
|
5. |
Power |
Pump motor for cutter | 4kw |
| Main motor | 5.5kw | ||
| Voltage | 380V 50HZ | ||
|
6. |
Control system |
Electric Box | PLC control system, Inverter, encoder |
| Language | English | ||
| 7. | Speed | 8-12m/min | |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
