Fully Automatic Cz Purlin Roll Forming Machine For Size Adjustment 80-300mm

80mm cz purlin roll forming machine

fullyautomatic cz purlin roll forming machine

size adjustment cz purlin machine

Nguồn gốc:

TRUNG QUỐC

Hàng hiệu:

FMS

Chứng nhận:

CE,ISO

Liên hệ với chúng tôi

Yêu cầu báo giá

Chi tiết sản phẩm

Tên sản phẩm:

Máy tạo hình cuộn xà gồ CZ hoàn toàn tự động để điều chỉnh kích thước 80-300mm

Thành phần cốt lõi:

PLC (thương hiệu nhập khẩu)

Áp lực công việc:

16 MPa

Điện áp:

380V hoặc 415V

Kích thước (L * W * H):

10,5m*1,35m*1,75m

Tự động hóa:

Tự động

Cắt vật liệu lưỡi:

Cr 12 Mov

Làm nổi bật:

80mm cz purlin roll forming machine

fullyautomatic cz purlin roll forming machine

size adjustment cz purlin machine

Điều khoản thanh toán và vận chuyển

Số lượng đặt hàng tối thiểu

1 bộ

Giá bán

negotiable

chi tiết đóng gói

Máy chính có màu khỏa thân, hộp điều khiển máy tính được đóng gói bằng nhựa.

Thời gian giao hàng

30 ngày

Điều khoản thanh toán

T/T, Western Union, L/C

Khả năng cung cấp

20 bộ mỗi tháng

Sản phẩm liên quan

Băng hình

High Efficiency CZ Purlin Roll Forming Machine with 45# Steel Rollers and High Straightness for Construction

Nhận được giá tốt nhất

Băng hình

Full Automatic CZ Purlin Roll Forming Machine with High Straight Level Crush Resistance and 1.5-3MM Thickness for Industrial Buildings

Nhận được giá tốt nhất

Băng hình

CZ Purlin Roll Forming Machine with 18 Station Rollers, 380V/50HZ/3Phase Voltage and Cr12Mov Cutting Blade for High Efficiency

Nhận được giá tốt nhất

Băng hình

CZ Purlin Roll Forming Machine with 700014001500mm Size 8-12m/min Forming Speed and 1.5-3.0mm Thickness for Galvanized Steel

Nhận được giá tốt nhất

Liên hệ với chúng tôi

86-317-2016816

Liên hệ ngay

Mô tả sản phẩm

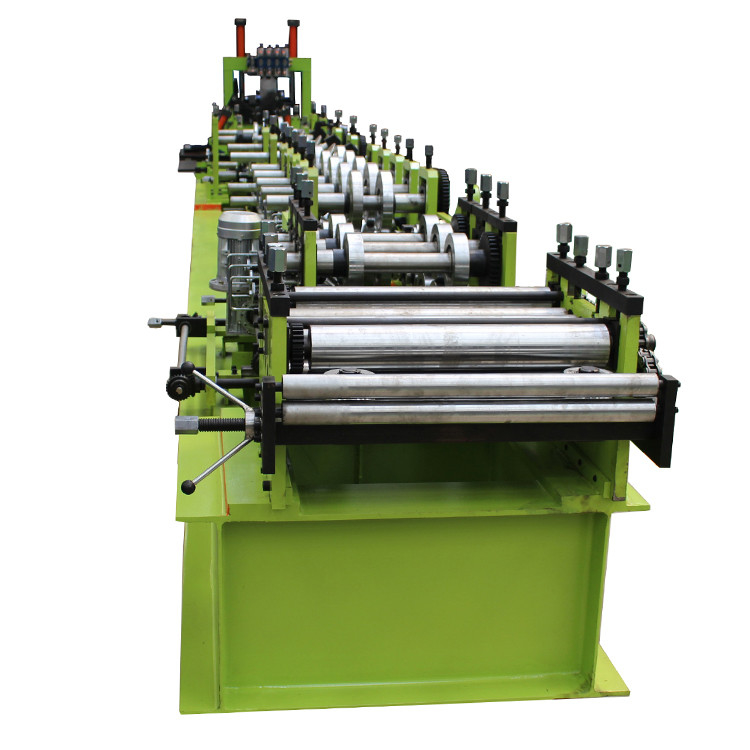

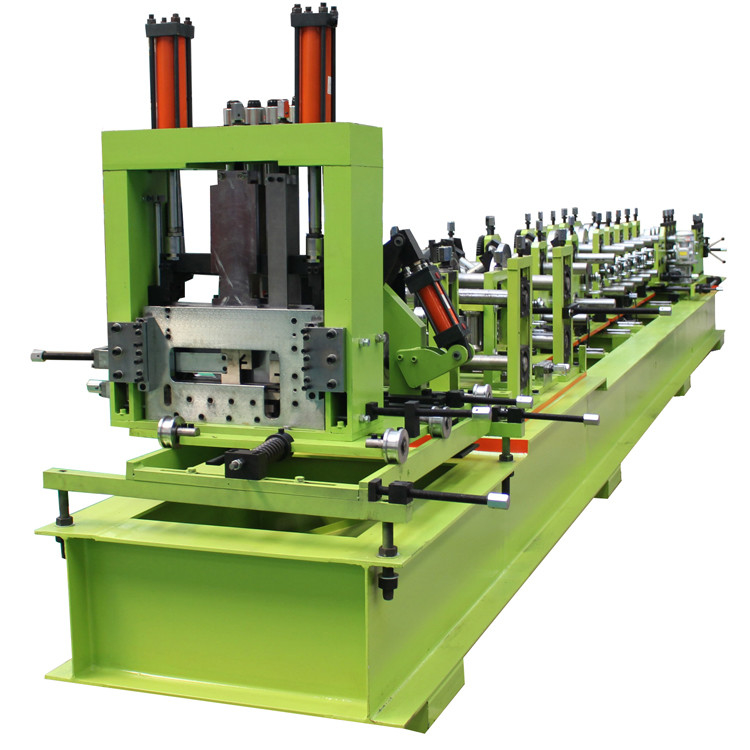

Fully Automatic CZ Purlin Roll Forming Machine For Size Adjustment 80-300mm

Fully Automatic CZ Purlin Roll Forming Machine For Size Adjustment 80-300mm.Standard Shape Profile ( Also can be customized)
C Purlin: A=80-300mm ; B=40-80mm ; C=10-20mm ; T=1.5-3mm
Z Purlin: A=120-300mm ; B=40-80mm ; C=10-20mm ; T=1.5-3mm

Other detailes of interchange cz cold rolled purlins machine
Suitable for material with thickness 1-3mm,Shafts manufactured from 45#,Main shaft diameter=φ80mm,precision machined,
Motor driving,Gear chain transmission, 16 rollers to form and 7 rollers for straightening and levelling,Main motor=22KW , Frequency speed control. Forming speed approx.18m/minPLC Control System Omron (Touch screen: WUXI xinjie),Inverter brand:Taiwan DELTA,Encoder brand:Japan OMRON),It takes only 5-10 minutes to finish all. No need to change rollers or spacers or cutters,Combined with: PLC, Inverter, TouchScreen, Encoder, etc.

specifications

Raw material	Steel Coil gi ppgi
Control system	PLC(imported Brand)
Punching	Roller Station
Roller Station	18 Stations Roll Forming Machine
Weight	11000 kg
Power	22KW
Production Capacity	20m/min
Warranty of core components	1.5 years

Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment

60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
