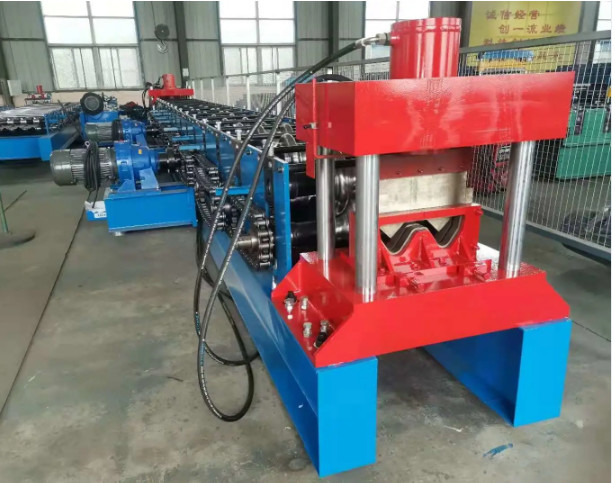

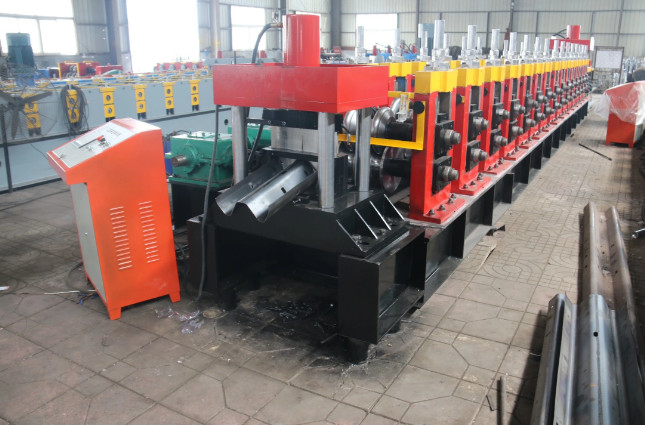

Crash Barrier Highway Guardrail Roll Forming Machine Two Waves
In order to keep the product shape and precision, adopts welded sheet structure,motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working Ensure stability , precision and lifetime.
Specification
| ain Forming machine | Forming steps | 18 steps |
| Shaft diameter | 80mm | |
| Machine stand | Individual Arch Plate | |
| Machine frame | steel plate welded | |
| roller material | Cr15 | |
| shaft material | 45# steel with quenching and tempering | |
| Work speed | 0-15m/min | |
| Transport | By chains | |
| Power of main machine | 22kw | |
| Voltage | 380V-50HZ-3P(as required) | |
| Machine dimension | 14*1.5*1.2m | |
| Machine weight | About 8.5T | |
| Machine color | Yellow and blue(as required) |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 60 working days after the down payment is received.
