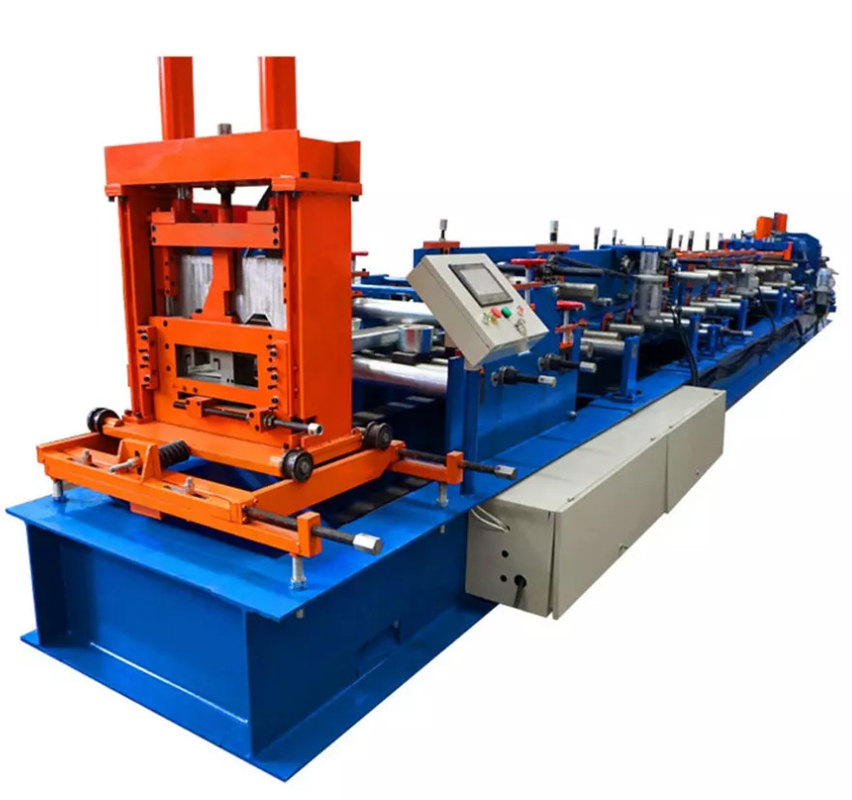

Automatic CZ Purlin Cold Roll Forming Machine PLC Control System

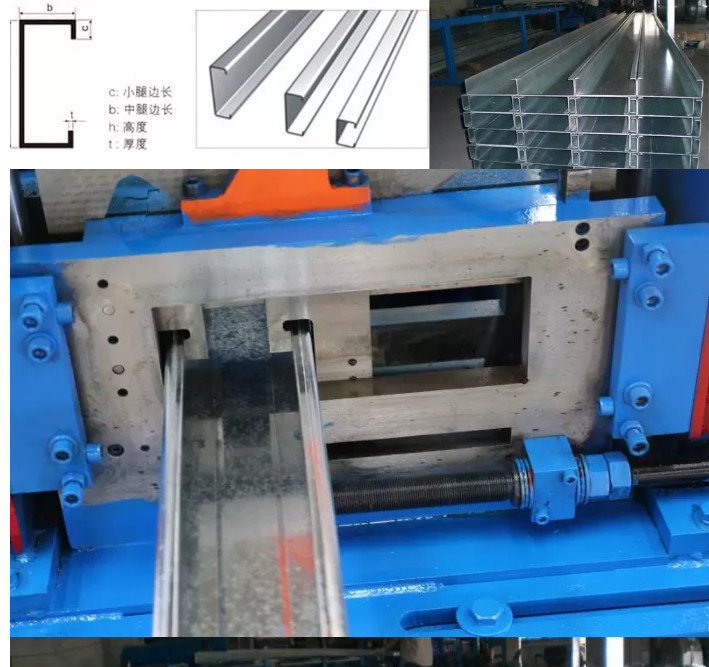

C shaped steel is a purlin and wall beam widely used in steel structure construction. It can also be combined into lightweight roof trusses and brackets. In addition, it can also be used for columns, beams and arms in the manufacture of light machinery. .It is widely used in steel structure workshops and steel structure engineering and is a commonly used construction steel. It is made by cold bending of hot rolled plate.
specifications
| 1 | Processing material: | Aluminum plating zinc/galvanized steel/colored steel coil |
| 2 | Material thickness: | 1.5-3.5mm |
| 3 | Capacity: | 10-20m/min |
| 4 | The weight: | 2-8 ton |
| 5 | Main motor power: | 15kw |
| 6 | Pump power: | 5.5kw |
| 7 | Shaft diameter: | 80mm |
| 8 | Forming steps: | 9+13+2 steps |
| 9 | Roller material: | bearing steel |
| 11 | Main frame: | 400H steel |
| 12 | Control system: | PLC computer control with inverter |
| 13 | Power supply: | 380V, 3 Phase, 60Hz(as requirement) |
| 14 | size(Length*Width*Height): | 1.5*0.5*0.7m-12*5.3*2.5m |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
