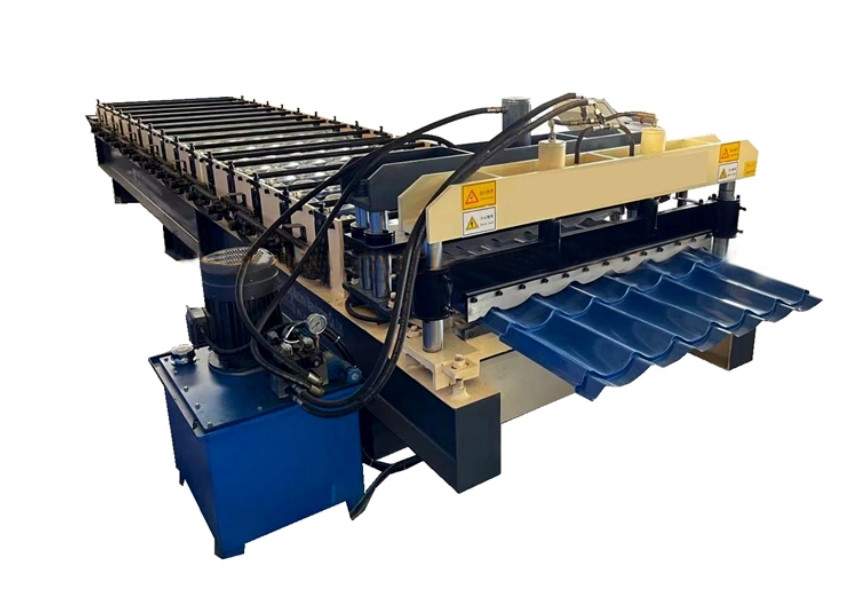

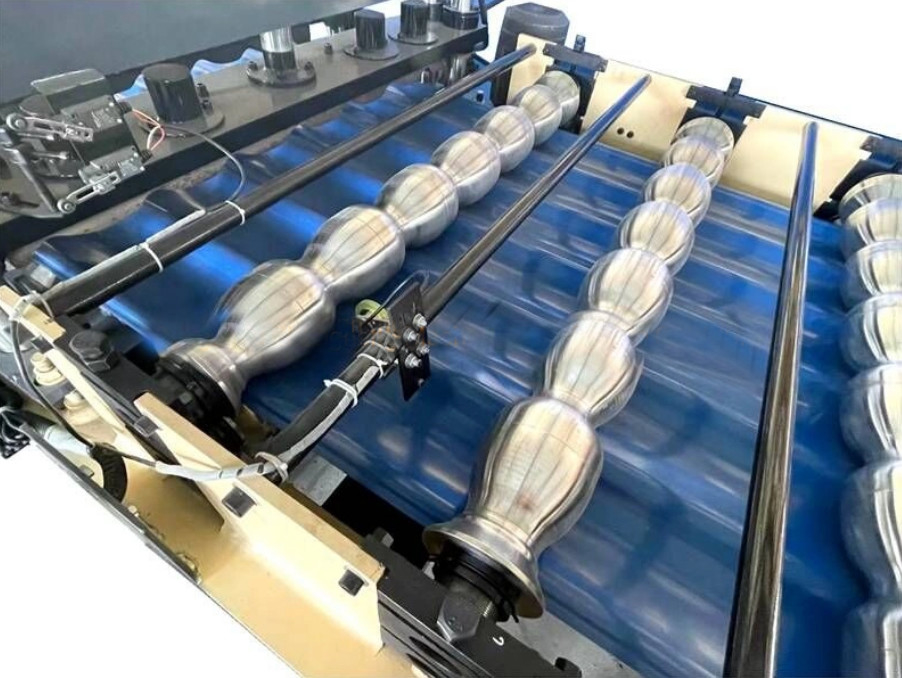

Roofing Tile Making Machine Glazed Tile Step Roll Forming Machine
Roofing Tile Making Machine Glazed Tile Step Roll Forming Machine.Roofing Tile Making Machine Glazed Tile step roll forming machine , suitable for PPGI material and other harder coils , the finished sheet usually worked for roof and wall panel . It has beautiful water wave design , now is widely used in all over the world
| Coil required | Material | PPGI GI AL |
| Width | 914/925/1000/1200/1220/1250mm | |
| Thickness | 0.3-0.7mm , as custom order | |
Power required |
Power | 380V 50Hz 3 Phase , as custom order |
| Main Motor | 5.5KW Siemens Brand | |
| Cutting Motor | 4KW Siemens | |
Machine |
Support Frame | 400 H Steel 10mm |
| Forming Station | 14 rows as profile | |
| Structure | 18-20mm | |
| Shaft | 75mm | |
| Roller | 45# Steel with heat treatment | |
| Chains | 1.2 inch | |
| Bearings | Standard as custom order | |
| Speed | 15-30m/min | |
| Electric Components | Delta and Siemens | |
| Size | 7.5*1.3*1.6M | |
| Weight | 4T |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
