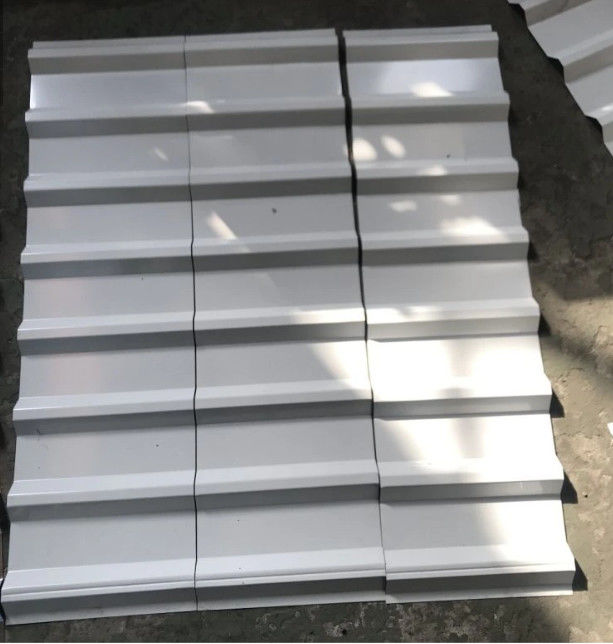

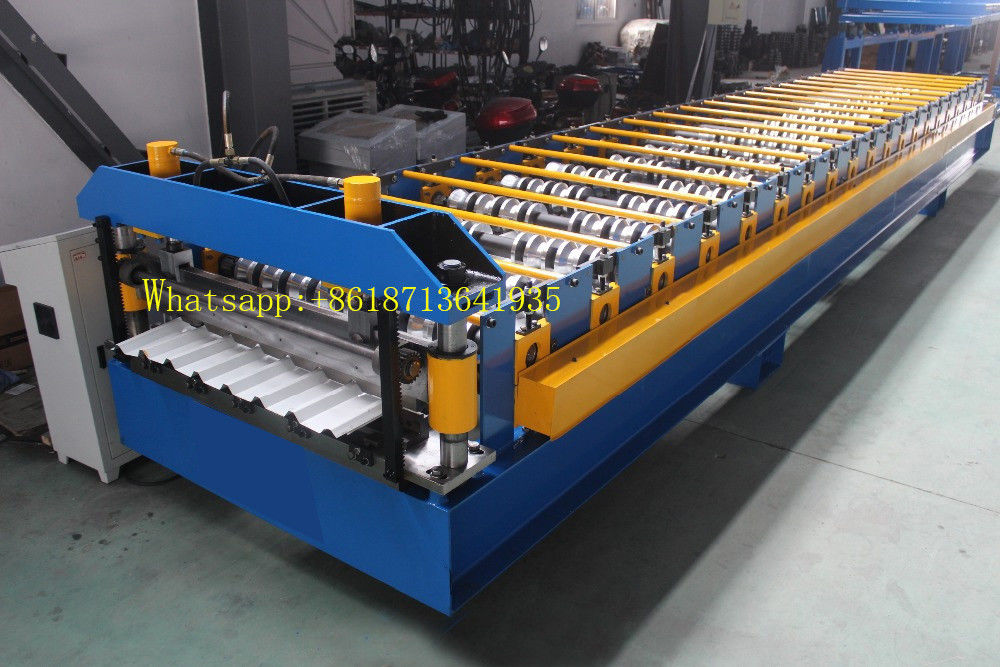

8 Ribtype Roof Tiles Making Machine With 18 Stations Simple Structure
CANGZHOU FAMOUS INTERNATIONAL TRADING CO., LTD. is a professional manufacturer dedicated Color light steel construction, C, Z steel equipment and rolling, bending molding equipment enterprises, with the design and manufacture of various types of steel sheet thickness roll forming production line strength. Pressed tile color steel plate and C, Z purlin products are widely used in various types of large and small industrial plants, warehouses, residential and high-rise buildings.
|
Description |
Explaination |
|
Working speed
|
10-20 m/min(Shear time is not included)
|
|
Pressed plate thickness
|
0．3-0．8mm
|
|
Control mode
|
Siemens PLC
|
|
Discharging rack
|
5T electric discharging rack
|
|
Number of molding passes
|
22 lanes
|
|
Roll material
|
After finishing, the surface of 45# steel is chrome plated.
|
|
Shaft material and diameter
轴材质及轴径 |
45# Steel finishing,Shaft diameter is￠70mm
|
|
Main engine power
|
7.5kw
|
|
Power of hydraulic station
|
3kw
|
|
Hydraulic pressure
|
12Mpa
|
|
Scissors material
|
Cr12Mov, quench HRC 58-62℃
|
|
Length tolerance
|
3m±1.5mm
|
|
Voltage
|
380V, 50HZ,3 phase(According to customer requirements can be adjusted)
|
|
Transmission mode
|
1.0 inch single row chain
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
