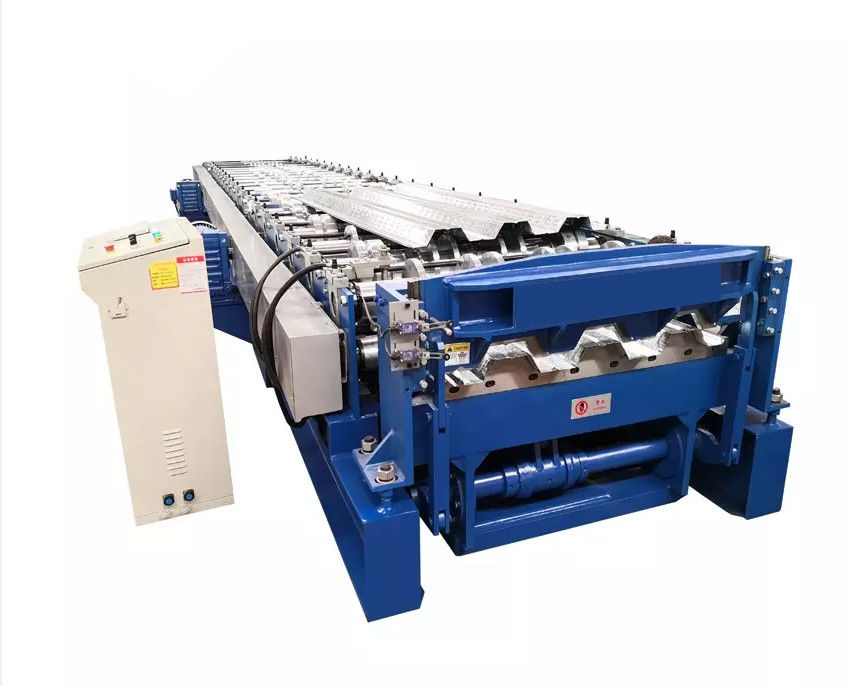

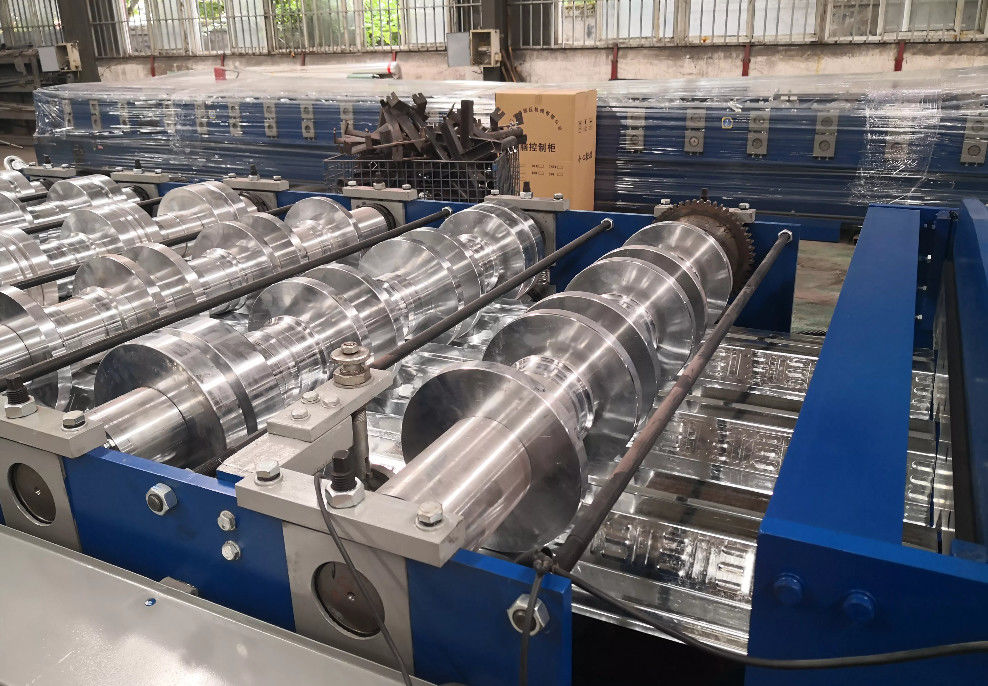

Philippines Metal Steel Deck Roll Forming Machine Gear Motor Driven By Inverter
Philippines Metal Steel Deck Roll Forming Machine Gear Motor Driven By Inverter.Steel Deck Roll Forming Machine or Metal Deck Roll Forming Machine is a modern, pre-eminent solution for concrete floor work. It roll-forms panels that replace traditional form-work, shortens 3 times working duration, saving 30% on concrete.
Field of application: Construction and building structure.
Application: Roll forming panels that are used as a floor replacement.
Installation of accessories & sub-floor structure is accomplished immediately after pouring concrete.
Specification
|
item
|
value
|
|
Applicable Industries
|
Building Material Shops, Manufacturing Plant, Construction works , Steel Construction
|
|
Showroom Location
|
None
|
|
Condition
|
New
|
|
Type
|
Tile Forming Machine
|
|
Tile Type
|
Steel
|
|
Use
|
FLOOR
|
|
Production Capacity
|
0-14m/min
|
|
Dimension(L*W*H)
|
12800*2300*1500mm
|
|
Weight
|
15000kg
|
|
Warranty
|
1 year
|
|
Key Selling Points
|
Automatic
|
|
Rolling thinckness
|
0.8-1.5mm
|
|
Feeding width
|
1220mm
|
|
Marketing Type
|
Hot Product 2021
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Motor, Bearing, Pump, Gearbox, PLC
|
|
Usage
|
Widely Used As The Floors Decking Of Buildings
|
|
Rolling Speed
|
0-14m/min
|
|
Machine's Weight
|
15000kgs
|
|
Control System
|
PLC(Touch Screen)
|
|
Raw Material
|
Galvanized Sheet
|
|
Floor Thickness
|
0.8-1.5mm
|
|
Raw Material Width
|
1200-1280mm
|
|
Roller Stations
|
23
|
|
Product name
|
floor deck making machine
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
