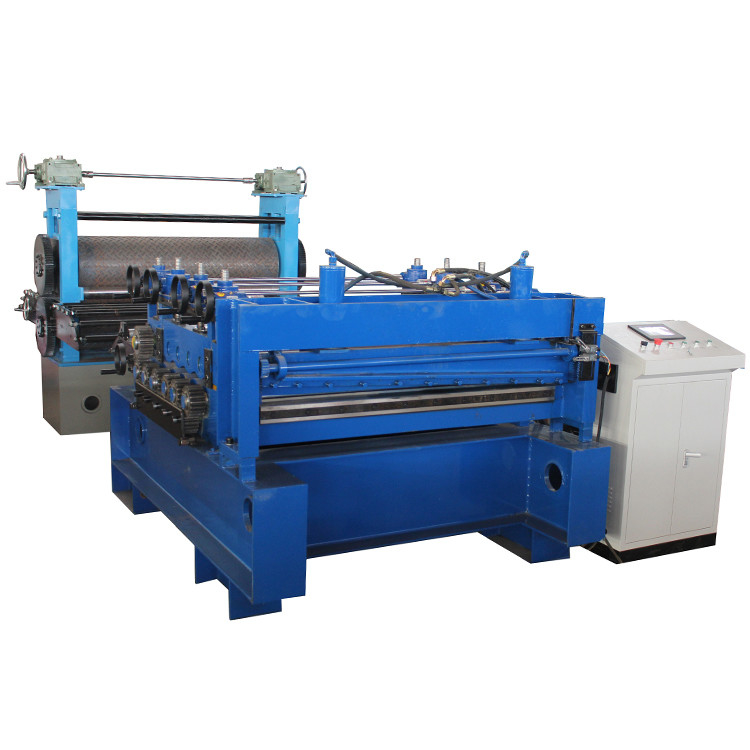

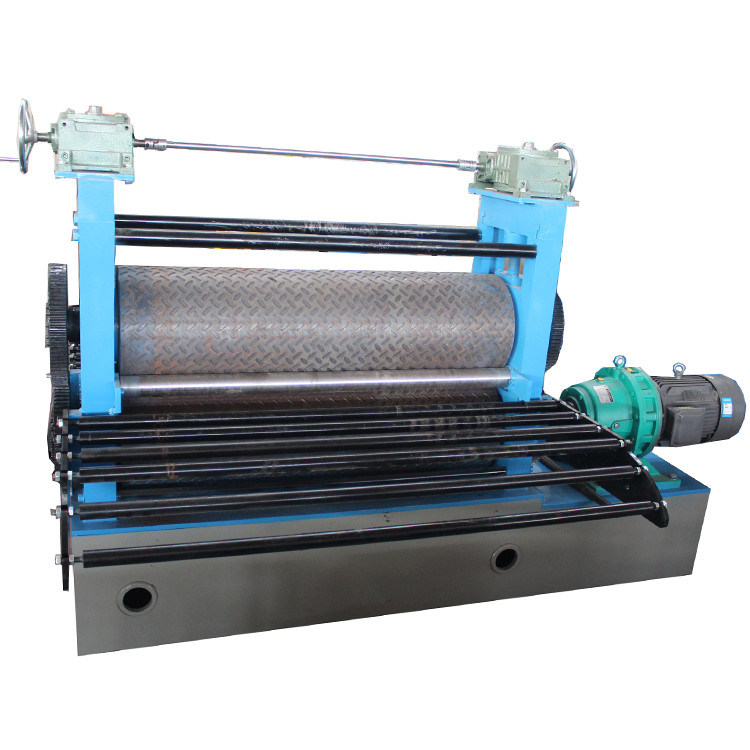

Customized Coil Embossing Lines Embossing Roll Forming Machine
Customized Coil Embossing Lines Embossing Roll Forming Machine .Metal steel sheet embossing machines are mainly for producing embossed aluminum and stainless metal sheets. metal embossing
production line. metal embossing machine is suitable for metal sheet, particle board, decorated materials, and so on. The pattern
is clear and has strong third-dimension. It can be assorted with the embossing production line.The main parts of this metal sheets
Specification
| No. | Coil Embossing Lines Embossing Roll Forming Machine | |
| 1 | Suitable to process | metal embossing machine |
| 2 | Raw material | PPGL/GL/GI/GL Steel sheet |
| 3 | Feeding coil size | less than 2500 mm |
| 4 | Material of roller | 9cr3mo |
| 5 | Pressure motor | hydraulic pressure or mechinal pressure |
| 6 | Drive motor | 11kw |
| 7 | Uncoiler speed | 5-15meter/min |
| 8 | MATERIAL OF EMBOSSING ROLLER | 60crmnmo |
| 9 | Depth of hardness suface | 5-10mm |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
