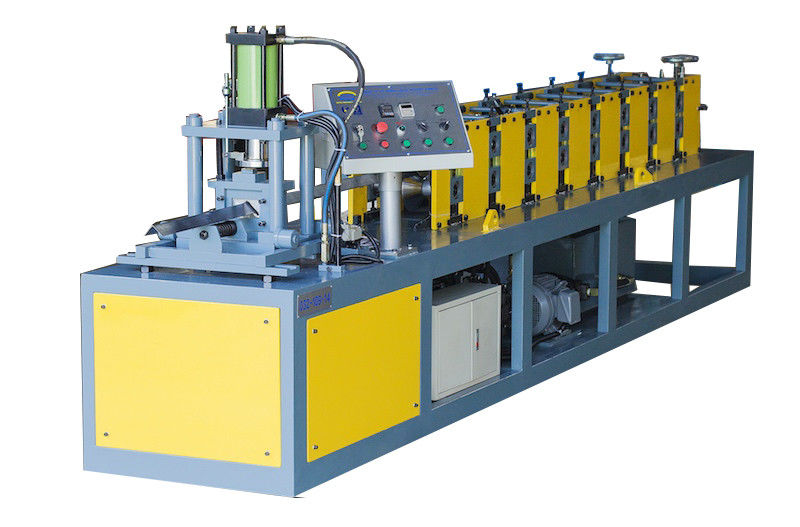

V Shaped Equal Angle Steel Bar Roll Forming Machine PLC Touchscreen
V Shaped Equal Angle Steel Bar Roll Forming Machine PLC Touchscreen. Angle bead roll forming machine | Corner bead production line | Metal angle bead machine | Corner bead roll forming machine | V shape roll forming machine | Steel wall angle bar roll forming machine
Angle bead roll forming machine popular sell in many countries, size common include 20*20 mm, 25*25 mm, 27*27 mm, 30*30 mm. Product thickness common between 0.3-0.6 mm.
Specification
|
NO
|
Item
|
Specification
|
||
|
|
Raw material
|
GI
|
||
|
Material thickness
|
0.3-0.6MM
|
|||
|
Machine
|
Roller stations
|
10
|
||
|
Shaft
|
Solid ,55mm
|
|||
|
Shaft material
|
45# steel with Cr12 chromed ,
|
|||
|
Roller material
|
High grade 45# steel with Cr12 quenched
|
|||
|
Middle plate thickness
|
14mm
|
|||
|
Machine size
|
4.3*0.8*1.0m
|
|||
|
Productivity
|
30-50m/min
|
|||
|

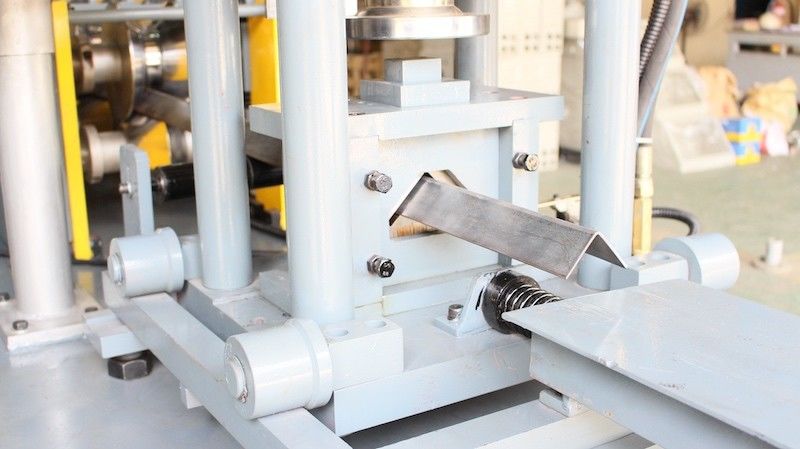

Cutter
|
Material
|
Cr12
|
||
|
Method
|
Hydraulic cutting
|
|||
|
|
Driving way
|
Chain 1 inch
|
||
|
Motor
|
4KW
|
|||
|
Hydraulic oil pump
|
3KW
|
|||
|
Voltage
|
380V ,50HZ ,3 Phase
|
|||
|
|
PLC
|
Delta from Taiwan
|
||
|
Invertor
|
Delta
|
|||
|
Screen
|
Touch screen ,Delta
|
|||
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
