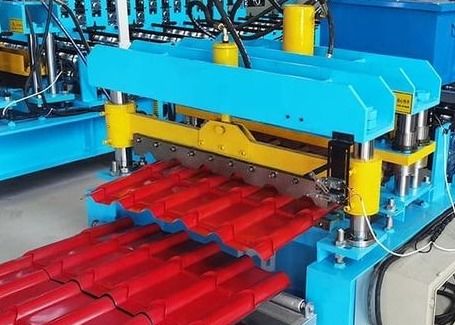

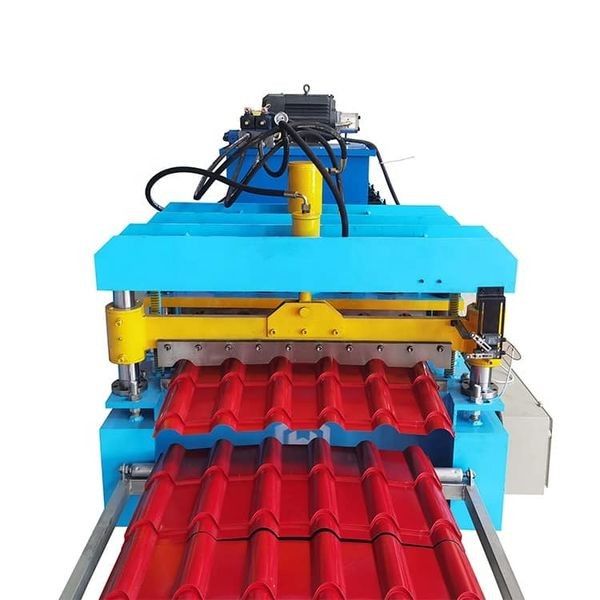

Indonesia Super High Speed Step Tile Roofing Roll Forming Machine Low Noise
Indonesia Super High Speed Step Tile Roofing Roll Forming Machine Low Noise.Metal Tile Shingle Roofing Sheet Roll Forming Machine is one most popular type of roll forming machines. It makes different shape of color steel roof sheet, which is used for buildings, factory, supermarket ect. For this machine, it suit coil width is 1250mm, thickness range is from 0.3mm to 0.8mm. We adopt wall panel type to make machine frame strong. Usually it can run with the max speed to 7m/min, PLC with touch screen operation make the machine simple and easy for usage.
Man-made decoiler---Color steel coil feeding & guiding device---Main forming machine---Computer Control system---Hydraulic pump station---Cutting head---Output table
| Indonesia Super High Speed Step Tile Roofing Roll Forming Machine Low Noise | |
| Main motor power | 5.5kw |
| Drive | 1'' single chain |
| Type | Wall board |
| Main shaft dia | ¢76mm |
| material | 45# forge steel and quenched |
| Roller material | 45# high grade forge steel ,chrome coated 0.05mm |
| Roll station | 18 groups |
| Raw material | 0.3-0.8mm |
| Coil width | 1250mm |
| Working speed | 3m--7m/min(Exclude cutting time) |
| Length Tolerance | ±1.5mm |
| Weight of machine | About 5 ton |
| Size of machine | About 7500×1800×1500mm L x W x H |
| Control | PLC Panasonic, 380V 50HZ,3phase (Also depend on client) |
| Computer operating panel | touching screen |
| Cutting | Hydraulic cutting. Auto cutting when reach the set length |
| Hydraulic power | 3KW |
| Blade material | Cr12mov,quenched 58°-62° |
| Working pressure | 16mpa |
| Cutting tolerance | +/- 1.0mm |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
