Nguồn gốc:
Trung Quốc đại lục
Hàng hiệu:
CANGZHOU FMS
Chứng nhận:
ISO CE
Số mô hình:
Omega
Băng hình

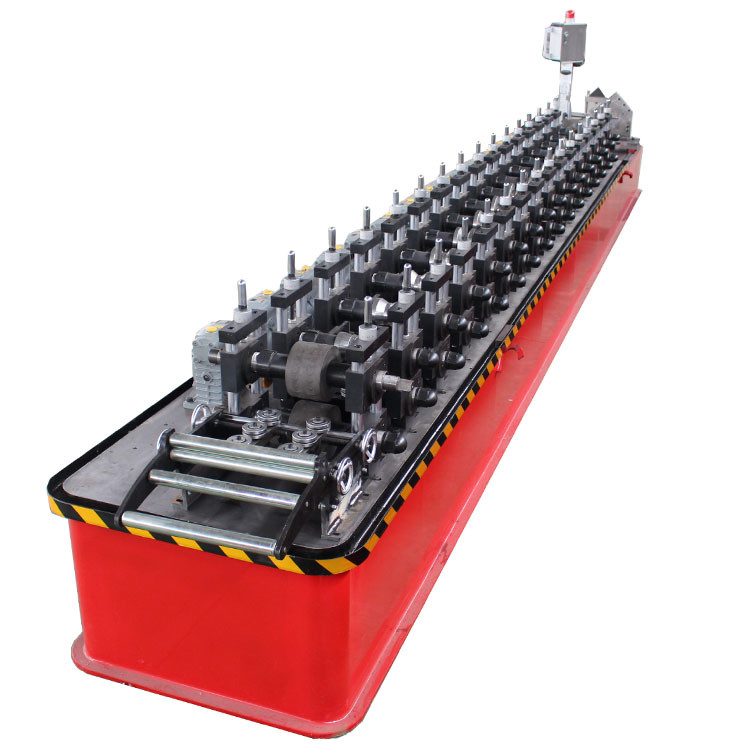

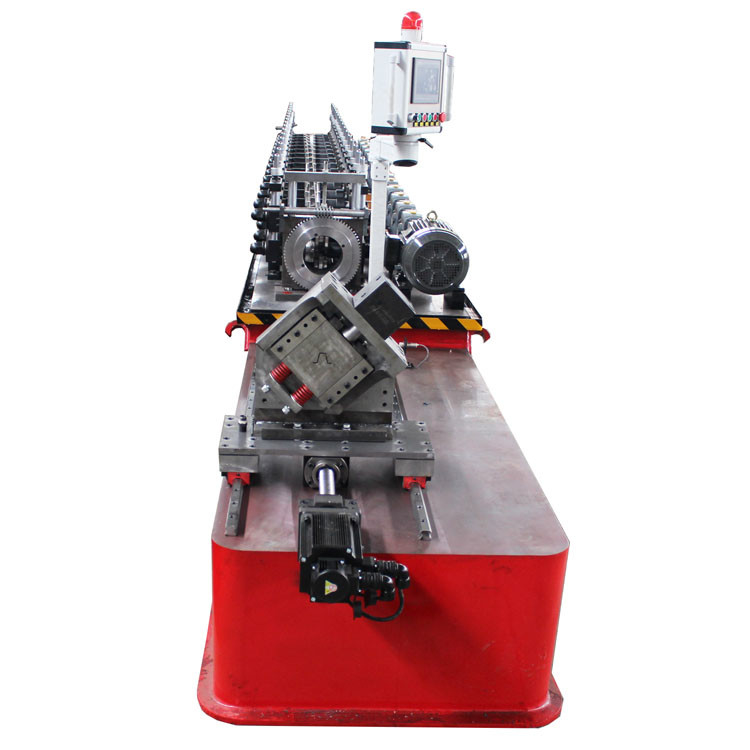

Omega Sheet Metal Roll Forming Line Machine Automatic For TURKEY
Omega Sheet Metal Roll Forming Line Machine Automatic For TURKEY,Description of Omega hat roll forming machine ceiling used omega roll forming machine is used to construct a metal frame to provide support for plasterboard and gypsum panels. They are, however, highly technical profiles and must satisfy precise operating characteristics, complementing each other perfectly to form a high quality, robust framework. Working Process The complete roll forming machine line includes decoiler, forming machine, computer controlling system and run out tables. ...
Specification
| NO | Type | Specification | |
| 1 | Raw material | Type | GI |
| Thickness | 0.3-0.6 mm | ||
| 2 | Decoiler | Operation | Manual |
| Weight apacity | 5 Tons | ||
| 3 | Main body | Roller station | 9 row |
| Diameter of shaft | 55 mm | ||
| Shaft material | 45# with 0.05mm chrome | ||
| Roller material | Cr 12 Mov steel | ||
| Type | Chinese type | ||
| Frame | 300mm C-beam | ||
| Frame thickness | 16 mm | ||
| Material | Cr 12 | ||
| Operation | Hydraulic automatic | ||
| Working speed | 10-30 m/min | ||
| 4 | Power | Driving way | 1 inch chain |
| Main motor | 5.5 KW | ||
| Voltage | 380V/50HZ, 3 phase | ||
| 5 | Control box | Electric box | PLC control system, inventer |
| Language | Chinese and English | ||
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
