Nguồn gốc:
Trung Quốc đại lục
Hàng hiệu:
CANGZHOU FMS
Chứng nhận:
ISO CE
Số mô hình:
Omega
Băng hình

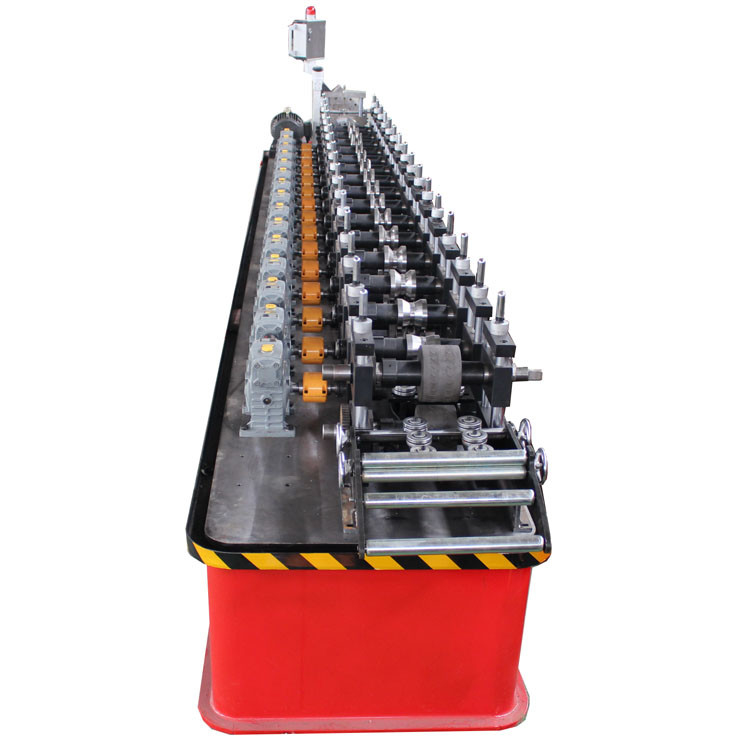

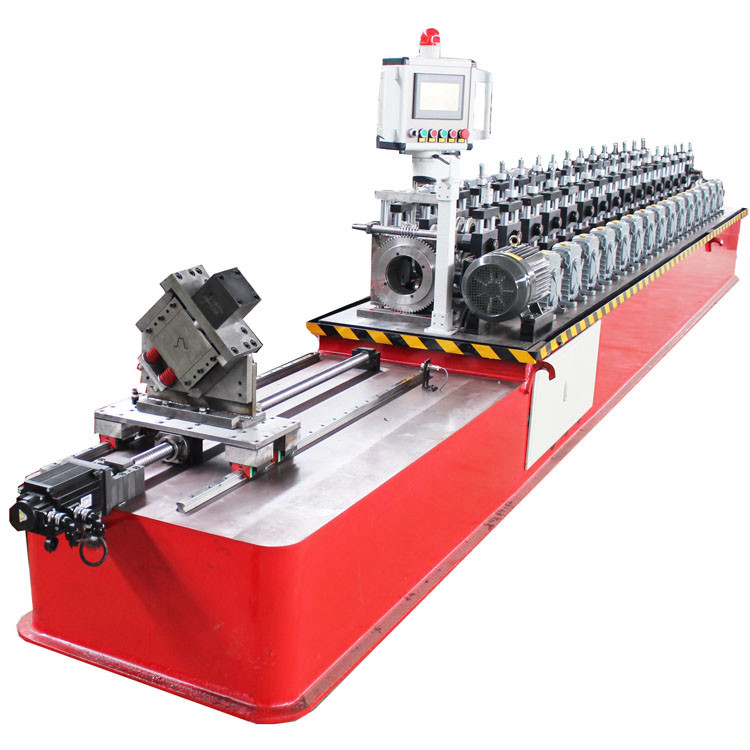

Omega Roll Forming Machine High Speed Metal Stud Roll Forming Machine
Omega Roll Forming Machine High Speed Metal Stud Roll Forming Machine, in ceiling and drywall making. Omega channel is the weight bearing channel, so normally we will design with dotting. This device uses a high level of color steel automatic control software, production information management. The entire unit automation control system uses a highly integrated network, automation systems and better performance.Omega roll forming machine cutter portion is driven by a hydraulic cylinder to move up and down the tool, you can put steel cut off. Corrugated steel sheet Roll forming machine production process is as follows: steel roller into the molded part after molding to-pressure part, pressed into an equidistant one, the cutter is responsible for cutting to length.
Specification
| No. | Item | Description |
| 1 | Core Components | Motor, Engine, PLC |
| 2 | Shaft material | 45#steel hardening and tempering |
| 3 | Cutting Mode | Hydraulic Cutting |
| 4 | Material of shafts | 40Cr steel with tempering |
| 5 |
Cutting length tolerance |
±1mm |
| 6 | Diameter of shafts | φ40mm |
| 7 |
Number of rollers for omega |
11 rollers |
| 8 |
Main power |
3kw |
| 9 |
Power Supply |
380V, 50HZ, 3 PHASES |
| 10 |
Cutting Accuracy |
±2 mm |
| 11 |
Driving Mode |
Single Chain 1 inch |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
