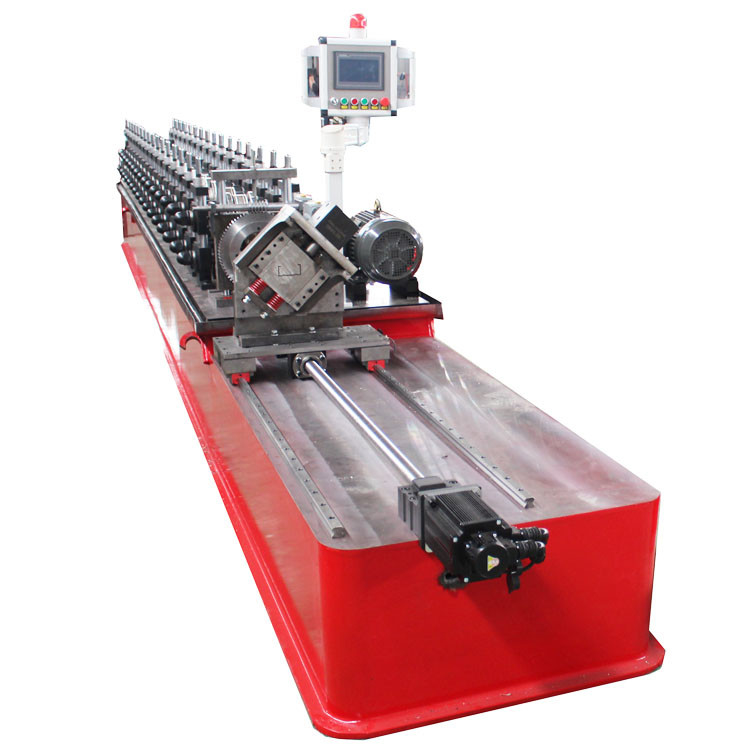

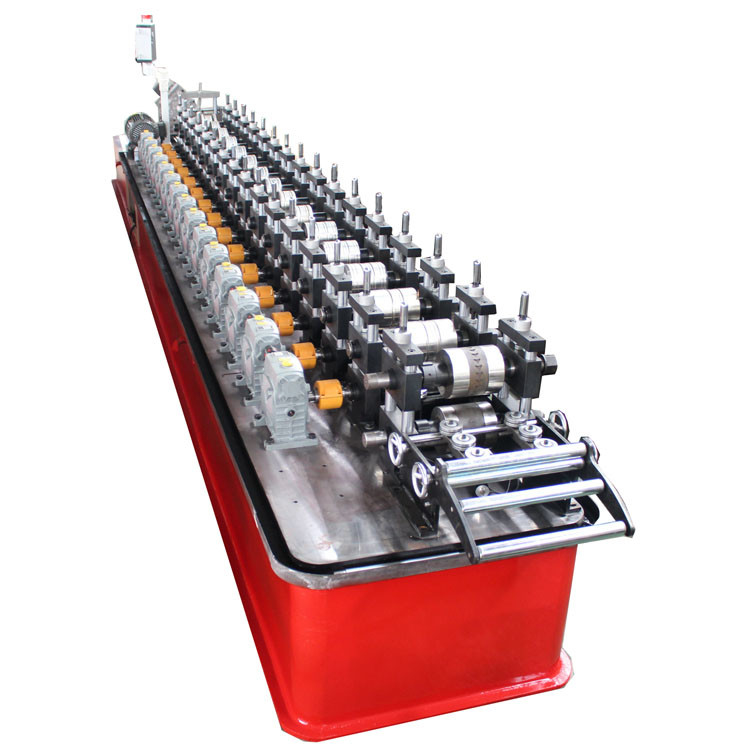

Purlin Galvanised Stud And Track Roll Forming Machine 3 Phases

Purlin Galvanised Stud And Track Roll Forming Machine 3 Phases

purlin stud and track roll forming machine

galvanised stud and track roll forming machine

purlin plc roll forming machine

Nguồn gốc:

Trung Quốc đại lục

Hàng hiệu:

CANGZHOU FMS

Chứng nhận:

ISO CE

Liên hệ với chúng tôi
Yêu cầu báo giá
Chi tiết sản phẩm
Tên sản phẩm:
Máy tạo hình cuộn xà gồ Máy tạo hình cuộn xà gồ
Kích thước (L * W * H):
6500*1300*1100
Loại gạch:
thép mạ kẽm
Sử dụng:
vách thạch cao
Năng lực sản xuất:
8-12m/phút
Cân nặng:
3000kg
Điện áp:
380V 50Hz 3 pha
Hệ thống điều khiển:
PCL
Làm nổi bật:

purlin stud and track roll forming machine

,

galvanised stud and track roll forming machine

,

purlin plc roll forming machine

Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu
1 bộ
Giá bán
negotiable
chi tiết đóng gói
FLC 20'
Thời gian giao hàng
30 ngày làm việc
Điều khoản thanh toán
L/c, t/t, d/a, d/p
Khả năng cung cấp
20 bộ mỗi tháng
Sản phẩm liên quan
Liên hệ với chúng tôi
86-317-2016816
Liên hệ ngay
Mô tả sản phẩm

Purlin Stud Track Roll Forming Machines Purlin Stud Roll Forming Track Machine



    CANGZHOU FAMOUS INTERNATIONAL TRADING CO., LTD .is a professional manufacturer engaged in research, development, production, sale and service of roll forming machine. Different designs can be customized as customers' requests. We are located in Botou City with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. We are the leading manufacturer of various kinds of roll forming machine for producing the following products, such as roof tile, wall panel, corrugated iron sheet, floor deck, C&Z purlin, highway guardrail, sandwich panel, stone chip coated roof tile, container board, car panel, roll shutter door, downspout, steel pipe, etc. In addition, we have attained ISO certificates. Selling well in all cities and provinces around China, our products are also exported to countries and regions, such as Russia, Kazakhstan, Turkmenistan, Uzbekistan, Uganda, Nigeria, Ghana, Zambia, South Africa, Kenya, Namibia, Bolivia, Brazil, Trinidad and Tobago, Mexico, Vietnam, the Philippines, India, Burma, Cambodia, Australia, Britain, etc.



Specification




1
Plate Material
Galvanized plate
Thickness
0.3-1.2mm
Wall thickness of the main forming machine
25mm steel plate

2
Reducer
3kw which works stably and no noise.
Rollers
11 steps



3
Diameter of active shaft
48mm, 45# steel
Hydraulic pump power
3KW
Woking Speed
8-12m/min
Material of shaft
45# steel with chrome 0.05mm

4
Operate
Automatic Hydraulic / Electric type
Blade material
Cr12MOV


5
Pump motor for cutter
4KW
Main Motor
5.5KW
Voltage
380V 50Hz 3 Phase

6
Electric Box
PLC control system , Inverter
Language
English / Chinese





Guarantee

  1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
  2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
