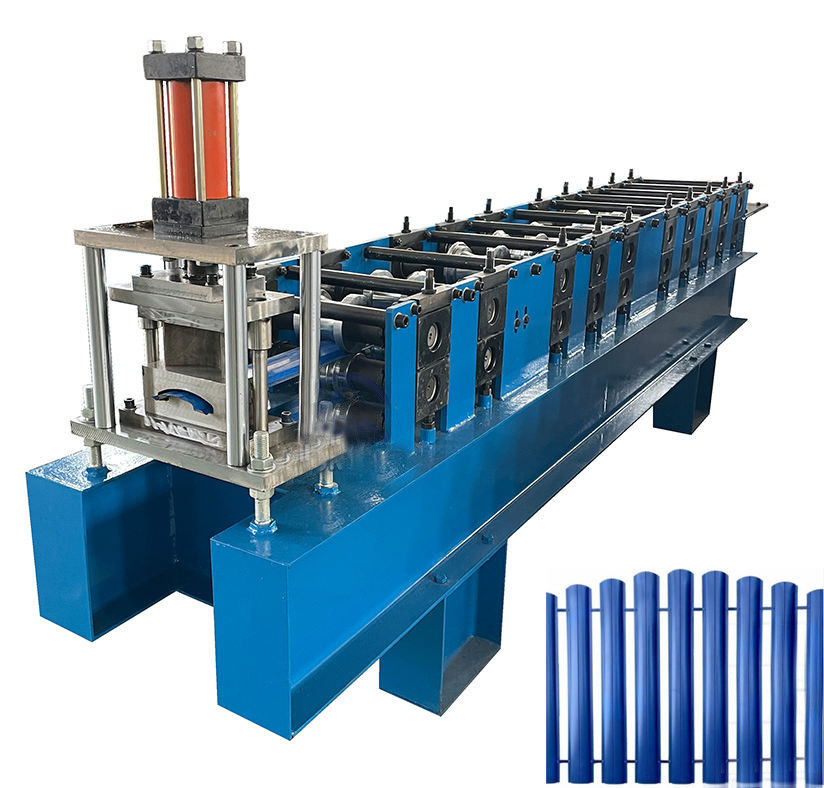

Metal Picket Fence Roll Forming Machine Fence Lines America

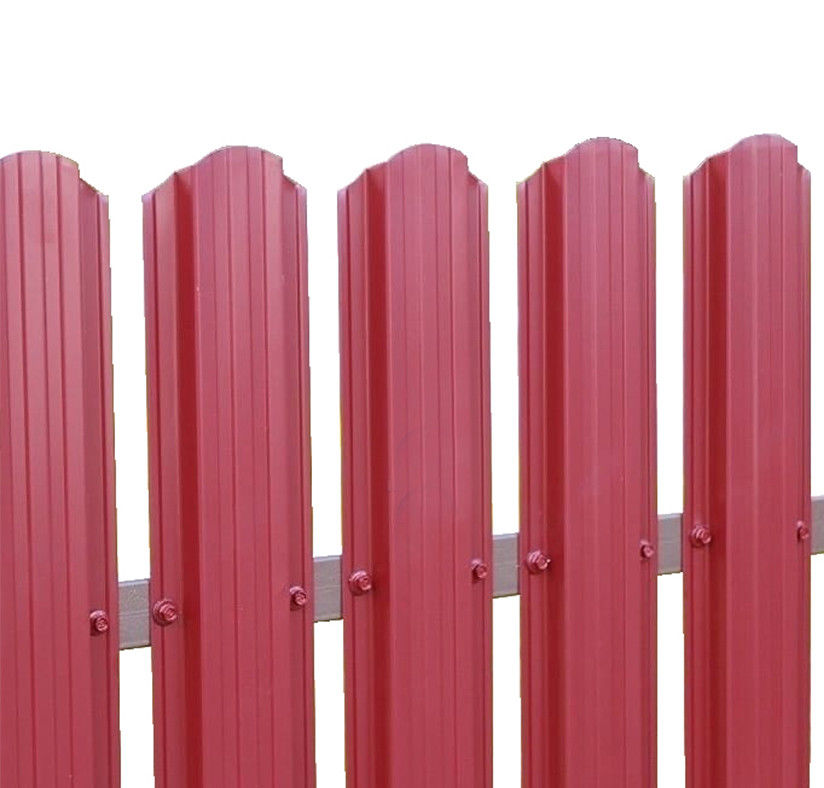

Metal Picket Fence Roll Forming Machine Fence Lines America,Metal Picket fence is a new solution to the classical approach to the construction of fences.
It is roll formed from light-gauge sheet metal with polymer coating.Being an original solution of landscape design, a fence made of Metal Picket fence imitates a natural fence made of wood and, thanks to its structure, allows creating an attractive appearance around the enclosed territory.
The advantages of a metal fence are aesthetics, strong design, lightweighting and affordable cost.
Specification
| Part details | Item Name | Specification |
| Material | Raw material | PPGI |
| Thickness | 0.3-0.6 mm | |
| Machine | Roller station | 10 |
| Shaft diameter | 50 mm | |
| Shaft material | 45# steel with 0.05mm chrome | |
| Roller material hardness 30-40 HRC | 45# steel with 0.05mm chrome | |
| Machine size | About 4.5×1×1 m | |
| Machine weight | About 1.5 ton | |
| Machine color | As customer' request | |
| Working speed | 10-20 m/min | |
| Cutter | Hardness | 50-65 HRC |
| Cutting tolerance | ± 1 mm | |
| Material | Cr 12 | |
| Operate | Hydraulic cutting | |
| Power | Driving way | Chain 1 inch |
| Main power | 4 kw | |
| Pump power | 3 kw | |
| Voltage |
380v/50HZ,3P or customize as customer' request |
|
| Control system | PLC brand | Delta made in Twaiwan |
| Screen | Touchable screen | |
| Language | Chinese and English or add language as customer need | |
| Decoiler | Operation | Manual |
| Weight capicatity | 5 ton | |
| Price | Free as gift | |
| Receiving table | Operation | Manual |
| Length | 3 m | |
| Price | Free as gift |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
