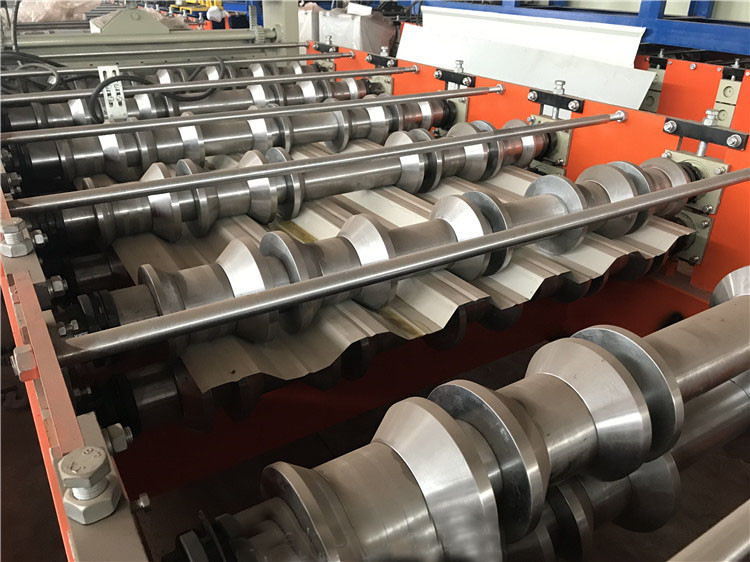

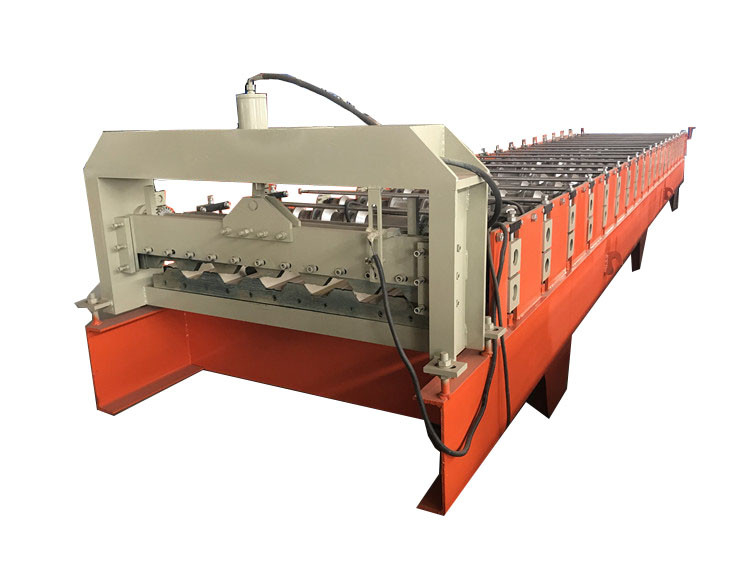

Canada PS3 Panel Roll Forming Lines Roofing Sheet Roll Forming Machine
PS3 Panel Roll Forming Lines are designed for high volume producers in the steel metal building industry,well build to your specific panel design from 20 to 30 gauge. Our lines are built to be flexible ,high speed and robust for tough production environments.
The main width of feeding coil material including: 914mm,1000,1219mm,1220mm and 1250mm. Then the effective width of roof tile is different.
The capacity of 40m/min 0.14mm thickness G550 hardness roof panel roll forming machine metal spandek machine can be 8-15m/min, 20m/mim, 8-40m/min. There are two automatic roof panel roll forming machine systems.
Hydraulic motor roof panel roll forming machine. Power is from hydraulic motor. Hydraulic oil supply the power to roof panel roll forming machine
| Article No. | Item Name | Specification |
| 1 | Width of feeding material | 1250 mm coil sheet |
| 2 | Thickness of feeding material | 0.3-0.8 mm coil sheet |
| 3 | Roller station | 9-15 stations |
| 4 | Shaft Diameter | 55-95 mm |
| 5 | Productivity | 8-12 m/min |
| 6 | Rollers' material | 45# steel forge |
| 7 | Shaft material | 45# steel |
| 8 | Weight | 4.5 ton |
| 9 | length | 7.5 m |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Control | PLC |
| 12 | Decoiler | 5 tons |
| 13 | Motor | 7.5 kw |
| 14 | Driving way | Chain transmission |
| 15 | Chain size | 1.5 inch |
| 16 | Cutting system | Hydraulic cutter |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
