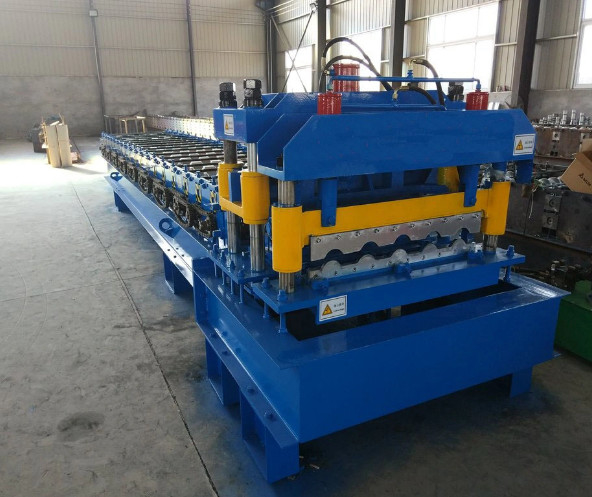

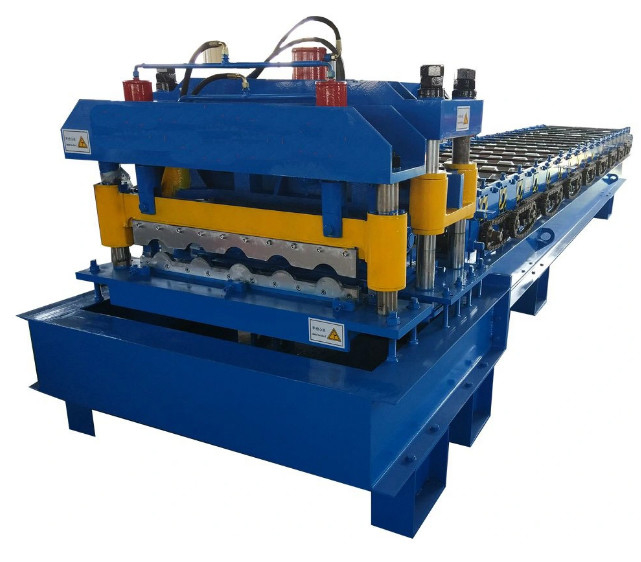

Hydraulic Cutting Glazed Tile Roll Forming Machine 1.5~3m/Min
Hydraulic Cutting Glazed Tile Roll Forming Machine 1.5~3m/Min.
01. Mainframe: GB H steel, hard texture.
02. Operator station: 360-degree rotation display.
03. Cutter: The main material is Cr12, which has high hardness.
04. Retaining pad: Prevent the nut from loosening.
05. Easy hanging: Prevent the machine from scratching during the movement.
06. Wheel: generally 45# steel, good hardness.
07. Travel switch: Limit the position or travel of the machine.
08. Rear hand knife: cut in advance to prevent waste.
09. Resin wheel: used to record the length of discharge and record data is more accurate.
10. Electric control cabinet: The main brands are Panasonic / Siemens / Schneider / Delta PLC
they are used in various fields, such as workshop, warehouse, carport, wall board, portable house, then why is it so widely used? Compared with traditional tiles, it has many advantages, such as light weight, high strength, heat insulation, easy installation, bright colors and waterproof
| Main motor power | 3KW/4kW/5.5KW/7.5KW or as actual demands |
| Hydraulic pump station | Gear pump |
| Pump station motor power | 3KW/4KW/5.5KW/7.5KW or as actual demands |
| Reducer | 6#/ 8# Gear Reducer |
| Hydraulic pressure | 10-12MPa according to the oil pump and pump motor |
| Shearing knife | Cr12 / Cr12MOV, heat treatment, HRC 58-60℃ |
| Cr-plating size: 0.05 mm | |
| Cutting method | Electric cutting |
| Control System | PLC Control System, 360 degree rotation |
| PLC Display languages | Chinese, English, (Spanish or Russian) |
| Productivity | 1.5~3m/min, 10~15m/min |
| Length tolerance | ±2mm |
| Cutting tolerance | ±1mm |
| Raw material | Galvanized steel coil/ Galvalume steel coil/ Color steel coil/ Aluminum steel coil/ Stainless steel coil |
| Feeding thickness | 0.3-1.0mm(Galvanized steel coil/ Galvalume steel coil/ Color steel coil/ Stainless steel coil); 0.3-1.5mm (Aluminum steel coil) |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
