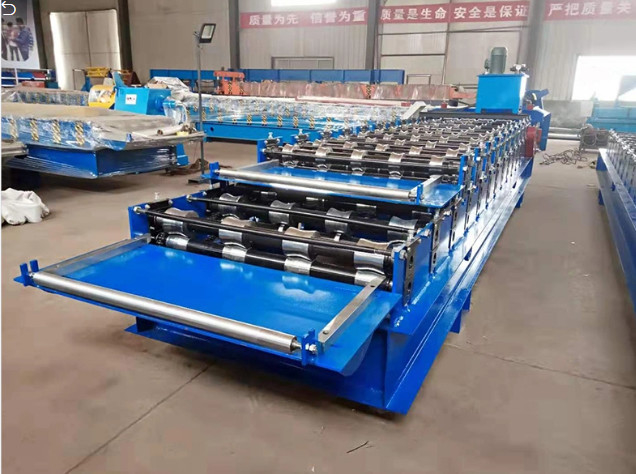

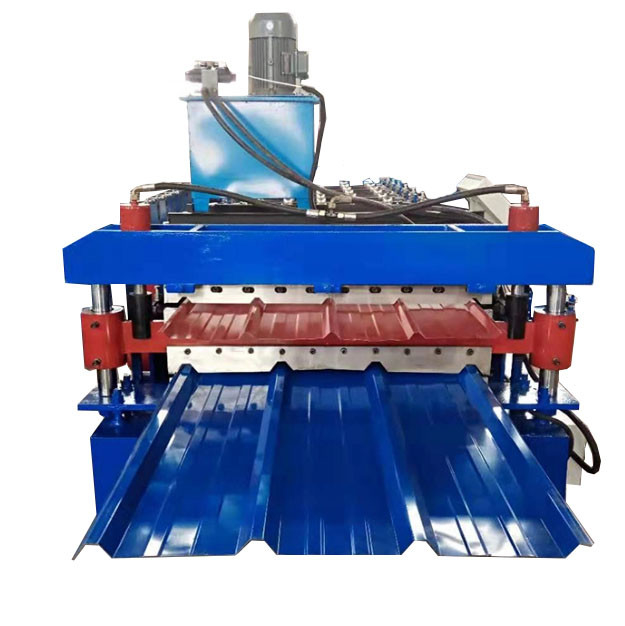

Tr4 Tr5 Roofing Trapezoidal Roll Forming Machine For The Americas Market
New Design Double Layer TR 4 TR 5 Roofing Metal Sheet Galvanized Steel Trapezoidal I B R Profile Cold Roll Forming Making Machine For The South American Market
1. Components:
1. Decoiler
2. Coil sheet guiding and adjusting equipment
3. Film covered device(optional)
4. Main roll forming system
5. Hydraulic pump station
6. PLC control system
7. Cutting device
8. Run-out table
2. Work flow:
Decoiling the sheet----sheet guilding----film covering(option)----roll forming----PLC controlling----hydraulic cutting----receiving the finished panel
Specification
| No. | Tr4 Tr5 Roofing Trapezoidal Roll Forming Machine For The Americas Market | |
| 1 | Suitable to process | Galvanized/Aluminum/Color steel sheet |
| 2 | Width of plate | 1250mm |
| 3 | Thickness of plate | 0.3-0.8mm |
| 4 | Rollers | High grade 45# steel, with hard chrome plating |
| 5 | Forming steps | 16 |
| 6 | Sprocket chain | 1.5 inch |
| 7 | Pump station power | 4kw |
| 8 | Shaft | 75mm, high grade 45# steel, heat treatment |
| 9 | Hydraulic oil pump | CB-E310 |
| 10 | Weight | About 5.0 tons |
| 11 | Productivity | 8-12m/min |
| 12 | Cutting head | Cr12 mould steel with quenched treatment |
| 13 | Control system | TAIDA brand PLC control |
| 14 | Voltage | 380V 3Phase 60Hz |
| 15 | Motor power | 4kw |
| 16 | Dimension | About 6.8m*1.5m*1.5m |
| 17 | Hydraulic pressure | 10-12mpa |
| 18 | Index error of length | ±1mm |
| 19 | The temperature range of working line | -35-50° |
Guarantee
1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
