IBR is widely used in the roofing industry and a common product used in roofing applications from industrial,commercial to residential applications.
It has become a household name in the South African building industry. The IBR's deep, broad flute design offers first-rate drainage abilities with ideal weight versus load/span characteristics. IBR can be factory Cranked, Curved and Bullnosed to various radii depending on customer's requirements.
Equipment Detailed Parameters:
|
No.
|

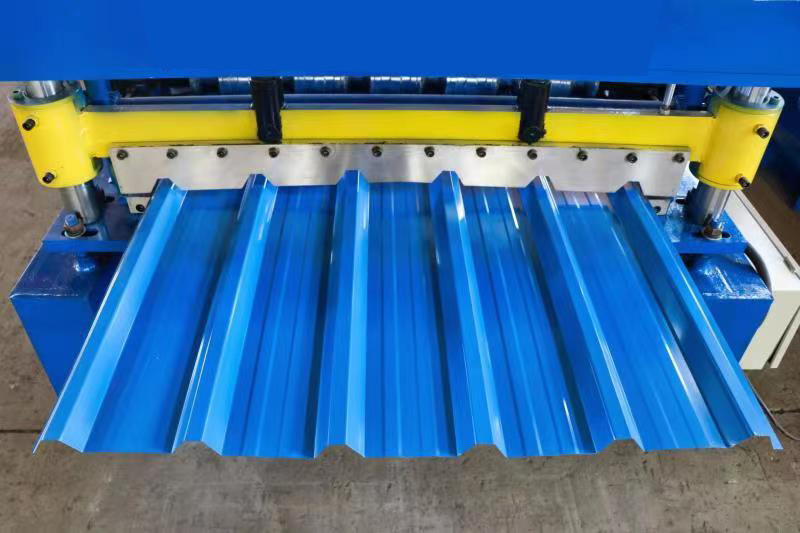

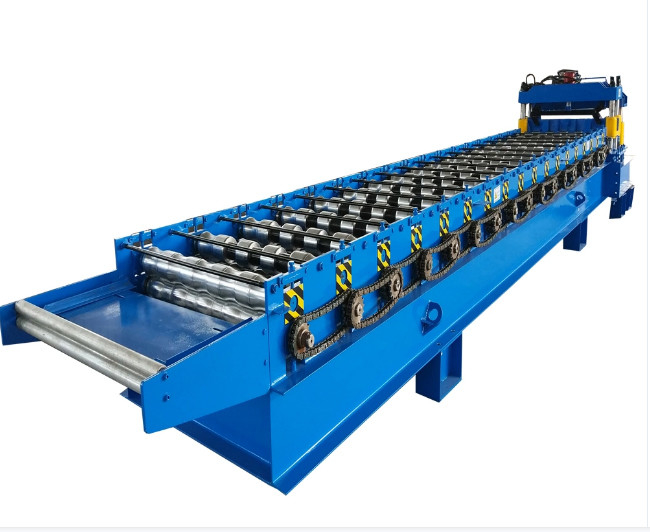

Ibr Metal Wall Panel Roof Tile Roof Steel Roll Forming Machine Long Span | |
|
1
|
Suitable material
|
Color steel sheet ,galvanized steel sheet, aluminium sheet
|
|
2
|
Width of material
|
1000mm or as customer's requirements
|
|
3
|
Thickness of material
|
0.3-0.8mm or as your needs
|
|
4
|
Working speed
|
0-15m/min
|
|
5
|
Electrical control system
|
PLC control system
|
|
6
|
Shaft diameter
|
80mm/85mm/90mm
|
|
7
|
Dimension
|
7500x1500x1920mm
|
| 8 |
Voltage
|
380V 3phase 50Hz or as the customer's requirements
|
| 9 |
Material of roller
|
High grade 45# forged steel plated with hard chrome plating
|
|
10
|
Material of cutting
|
Cr12 mould steel with quenched treatment
|
|
11
|
Working time
|
Can be 24 hours
|
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
