Trapezoid Steel Roof PPGL Wall Panel Roll Forming Machine 3phases

Trapezoid Steel Roof PPGL Wall Panel Roll Forming Machine 3phases

ppgl wall panel roll forming machine

3phases wall panel roll forming machine

ppgl trapezoidal roll forming machine

Nguồn gốc:

Trung Quốc đại lục

Hàng hiệu:

FMS

Chứng nhận:

ISO CE

Liên hệ với chúng tôi
Yêu cầu báo giá
Chi tiết sản phẩm
Tên sản phẩm:
Máy tạo hình tấm thép hình thang Máy tạo hình tấm tường mái
Vật liệu:
Gi,Gl, PPGL, PPGI
Con lăn:
Mạ crom
Đặc điểm kỹ thuật:
9,5*1,45*1,5
Cân nặng:
4500 kg
Bảo hành các thành phần cốt lõi:
1 năm
Điện áp:
380V 50Hz 3 pha, 380V 50Hz 3 pha
Sau bán hàng:
Cung cấp công việc vận hành và lắp đặt
Làm nổi bật:

ppgl wall panel roll forming machine

,

3phases wall panel roll forming machine

,

ppgl trapezoidal roll forming machine

Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu
1 bộ
Giá bán
negotiable
chi tiết đóng gói
FLC 40'
Thời gian giao hàng
30 ngày làm việc
Điều khoản thanh toán
L/c, t/t, d/a, d/p
Khả năng cung cấp
20 bộ mỗi tháng
Sản phẩm liên quan
Liên hệ với chúng tôi
86-317-2016816
Liên hệ ngay
Mô tả sản phẩm

Container Body Car Carriage Board Panel Cold Roll Forming Machine Plc Control

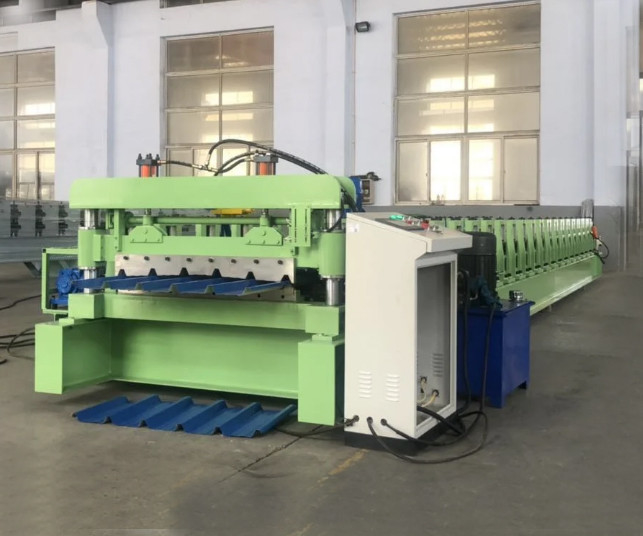

Trapezoid Steel Panel Roll Forming Machine Roof Wall Panel Roll Forming is the equipment that mainly produces trapezoidal sheet. Trapezoidal plates are very common in our daily lives. You can see that they are used in various fields, such as workshop, warehouse, carport, wall board, portable house, then why is it so widely used? Compared with traditional tiles, it has many advantages, such as light weight, high strength, heat insulation, easy installation, bright colors and waterproof, but at the same time it also has some small defects, such as sound insulation because of its thin thickness. The effect is relatively poor, and the ability to resist wind and cold is relatively poor, and it is easy to rust after a long period of rain and it is not easy to recycle.



Specification

1 Width of the plate 1219mm

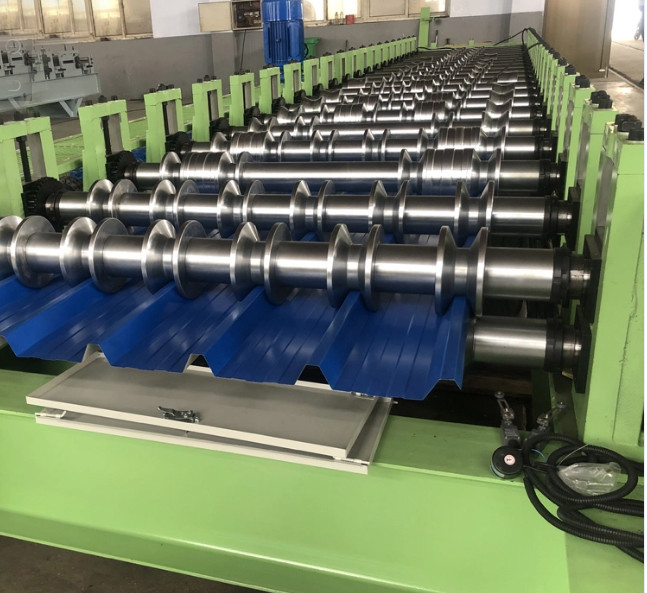

2 Rollers 18 Rows
4 Power 11+11+7.5kw
5 Thickness of the plate 0.8-1.2mm
6 Productivity 0-15m/min
7 Diameter of the roller 90mm
8 Weight About4500kg
9 Voltage 380V 50Hz 3phases
10 Material of the cutting plate Cr12
11 Hydraulic 40#
12 Processing precision Within 1.00mm
13 Control system PLC control


Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
