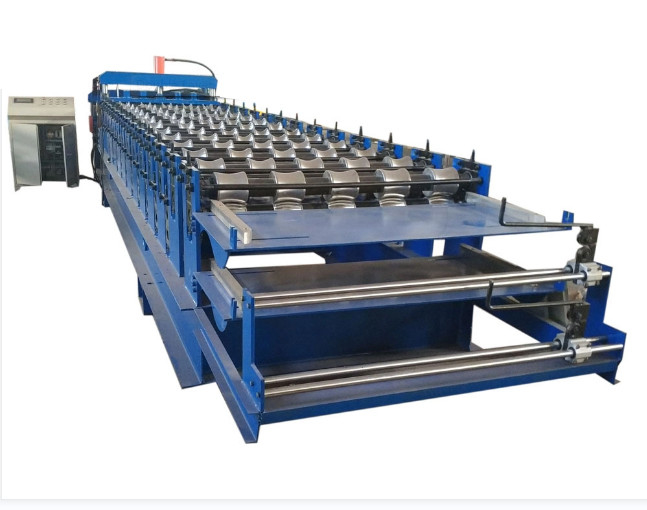

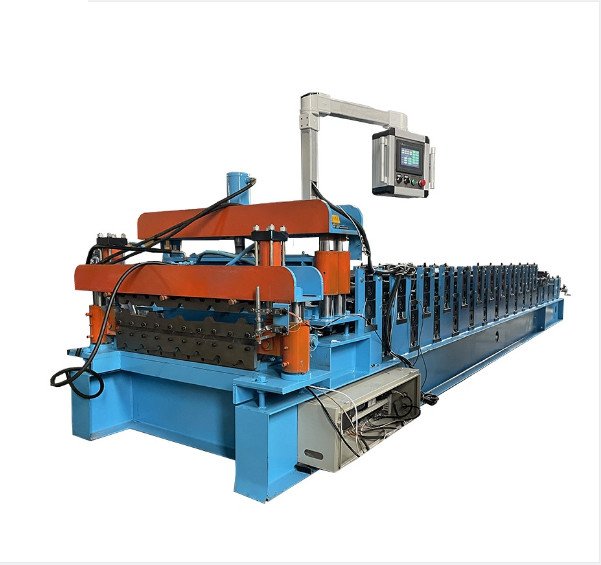

Customized Trapezoidal Panel Double Layer Roll Forming Machine Aluminum

Customized Trapezoidal Panel Double Layer Roll Forming Machine Aluminum

customized double layer roll forming machine

aluminum double layer roll forming machine

trapezoidal panel customized roll forming machine

Nguồn gốc:

TRUNG QUỐC

Hàng hiệu:

CANGZHOU FMS

Chứng nhận:

ISO CE

Liên hệ với chúng tôi
Yêu cầu báo giá
Chi tiết sản phẩm
Tên sản phẩm:
Máy tạo hình cuộn hai lớp tùy chỉnh cho bảng hình thang
Nguyên liệu thô:
Galvalume, mạ kẽm, PPGI, nhôm
Độ dày vật liệu:
0,3-1,5mm
Sử dụng:
Bảng điều khiển mái và tường
Động cơ:
5,5kw
Vật liệu con lăn:
45# Thép
Độ dày phù hợp:
0,3-0,8mm hoặc theo yêu cầu của bạn
Kiểu:
Tự động
Làm nổi bật:

customized double layer roll forming machine

,

aluminum double layer roll forming machine

,

trapezoidal panel customized roll forming machine

Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu
1 bộ
Giá bán
negotiable
chi tiết đóng gói
FLC 40'
Thời gian giao hàng
30 ngày làm việc
Điều khoản thanh toán
L/c, t/t, d/a, d/p
Khả năng cung cấp
20 bộ mỗi tháng
Mô tả sản phẩm

Customized Double Layer Roll Forming Machine For Trapezoidal Panel


Customized Double Layer Roll Forming Machine For Trapezoidal Panel,This is the equipment that mainly produces trapezoidal tile and corrugated tile.
It is very common in our daily life.
Such as workshop,warehouse,carport,wall board and portable house.
Everything has its two sides,of course it does.
Its advantages are light weght,high stength,heat insulation,easy installation,
colorful and waterproof.
so its disadvantages are poor sound insulation,and it is easy to rust but not easy to recycle.


Specification

Customized Double Layer Roll Forming Machine For Trapezoidal Panel
Usage Roof, Wall
Raw Material PPGI
Machine Color Customized as Customer′s Need
Power 380V 3Phase 50Hz, customized
Shaft Material 45# Steeld
Forming Speed 6-15m/Min
Support Frame 350H steel, 10mm
Hydraulic Oil Pump 4kw
Structure 16mm
Shaft 45# high grade steel, 80mm, solid, with keyway
Roller 45# high grade steel with heat treatment, hard chrome plated
Material Thickness 0.3-1.5mm
Speed 12-18m/min
Weight 6.8.0T


Guarantee

1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation


Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
