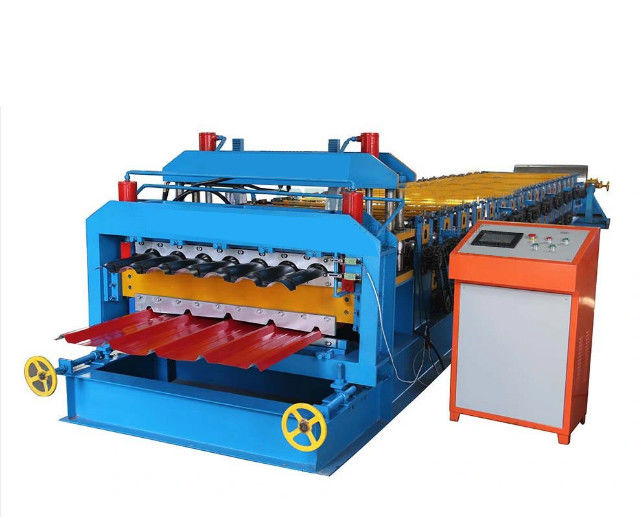

1300mm Ppgi Double Layer Roll Forming Machine Automatic Metal Roof Panel

1300mm Ppgi Double Layer Roll Forming Machine Automatic Metal Roof Panel

1300mm double layer roll forming machine

16groups double layer roll forming machine

ppgi double roll forming machine

Nguồn gốc:

TRUNG QUỐC

Hàng hiệu:

CANGZHOU FMS

Chứng nhận:

ISO CE

Liên hệ với chúng tôi
Yêu cầu báo giá
Chi tiết sản phẩm
Tên sản phẩm:
Máy tạo hình cuộn hai lớp tự động Máy lợp mái kim loại
Nguyên liệu thô:
Galvalume, mạ kẽm, PPGI, nhôm
Hệ thống điều khiển:
điều khiển PLC
Sử dụng:
Mái nhà và tường
Kiểu:
Tự động
Điện áp:
380V 50Hz 3phase
Chiều rộng cho ăn:
Tối đa 1300mm
Dung tích:
5TON
Làm nổi bật:

1300mm double layer roll forming machine

,

16groups double layer roll forming machine

,

ppgi double roll forming machine

Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu
1 bộ
Giá bán
negotiable
chi tiết đóng gói
FLC 40'
Thời gian giao hàng
30 ngày làm việc
Điều khoản thanh toán
L/c, t/t, d/a, d/p
Khả năng cung cấp
20 bộ mỗi tháng
Mô tả sản phẩm

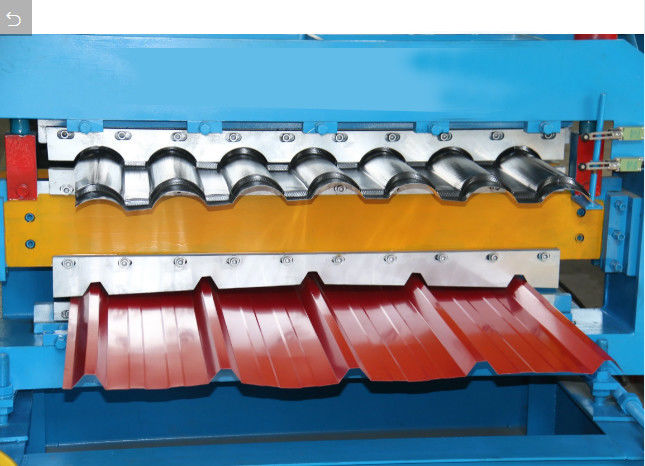

Automatic Double Layer Roll Forming Machine Metal Roof Panel Machine



Double Layer Roll Forming Machine Metal Roof Panel Machine is one most popular type of roll forming machines. Roofing Sheet Tile Roll Forming Machine is one of most popular metal building material making machines,it can produce many kinds of trapezoidal tile/panels,like Ag panel or PBR/R panel,which can be widely used in many scenes,like school,gym, warehouse,etc.



Specification

Automatic Double Layer Roll Forming Machine Metal Roof Panel Machine
Main motor power 4 kw
Drive 1'' single chain
Type: Wall board
Main shaft dia ¢70mm
material 45# forge steel and quenched
Roller material 45# high grade forge steel ,chrome coated 0.05mm
Roll station 16 groups and 18 groups
Raw material 0.3-0.8mm
Coil width 1000mm
Working speed 10m--15m/min(Exclude cutting time)
Length Tolerance ±1.5mm
Weight of machine About 9 ton
Size of machine About 7500×1800×1500mm L x W x H
Color of machine Yellow and Blue
Control PLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client)
Computer operating panel touching screen
Other electrical element Schneider
Cutting Hydraulic cutting. Auto cutting when reach the set length
Hydraulic power 3KW
Blade material Cr12mov,quenched 58°-62°
Working pressure 16mpa
Cutting tolerance +/- 1.0mm


Guarantee



1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
