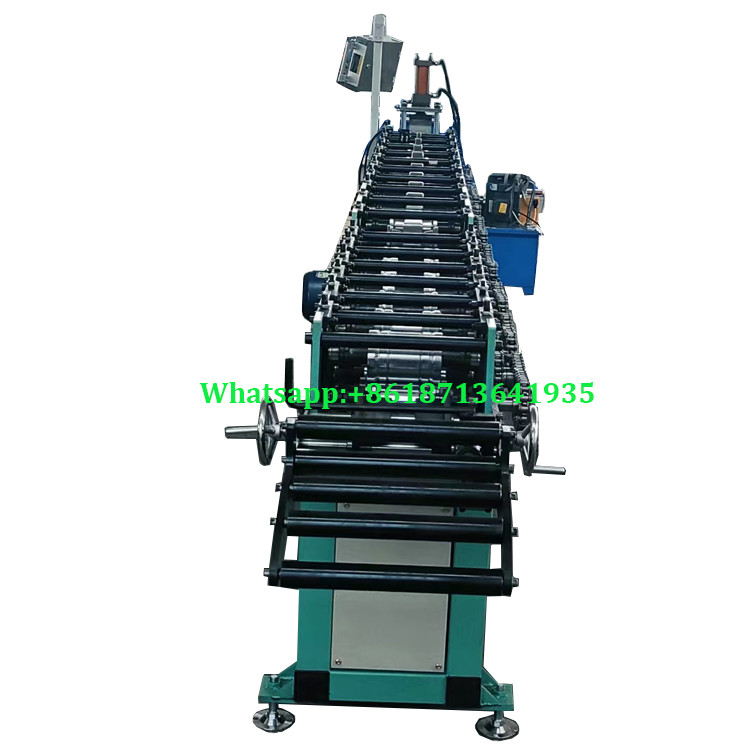

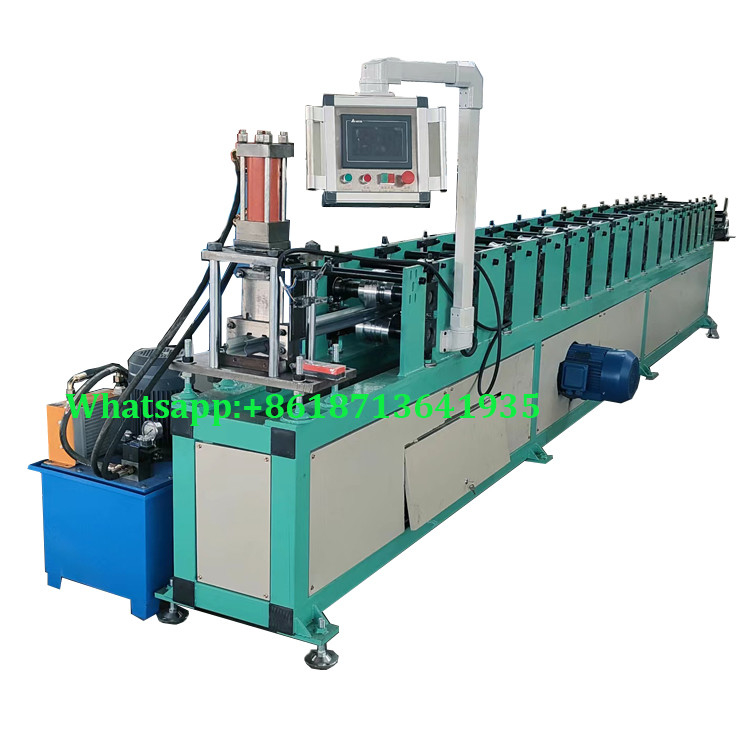

Rolling Shutter Door Guide Rail Roll Forming Machine Computer Controlled U Guide Rail
Shutter Door Roll Forming Machine
Shutter Door Roll Forming Machine Guide Rail Machine Working Flow
3.5T Decoiler -- Feeding Table -- Main Roll Forming Machine -- PLC Control System -- Hydraulic Cutting -- Product Receiving Table
Specification
|
1 |
Row Material |
Type | Colored steel plate, galvanized board, |
| Feeding width | According to the profile | ||
| Thickness | 1-2mm | ||
|
2 |
Main body |
Roller station | 12 steps |
| Diameter of shaft | 50mm | ||
| Shaft material | 45# Steel | ||
| Roller material | 45# Steel | ||
| Frame | 200mm H Steel | ||
| Frame thickenss | 14 mm | ||
| Operation | Manual and Automatic | ||
| Working speed | 8-12 m/min | ||
| Size (L*W*H) | About 19600*1350*1610mm | ||
| Weight | About 6.0 Tons | ||
| Cutting type | Fly saw cutting | ||
| Material of blade | Cr12 | ||
|
3 |
Power |
Motor power | 4 kw |
| Hydraulic power | 4 kw | ||
| Voltage | 380V 50Hz 3phases or Customerization | ||
| Driving way | By Chain |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
