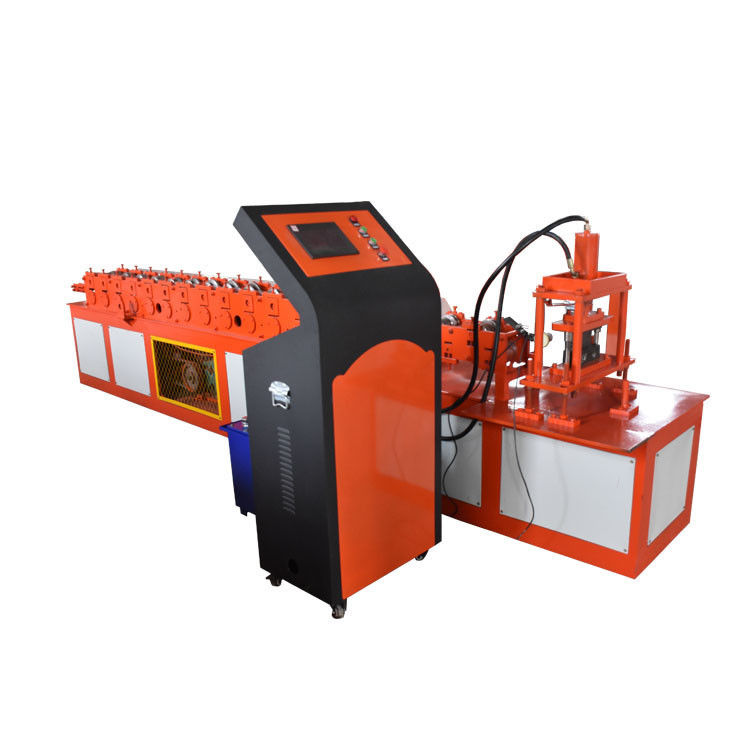

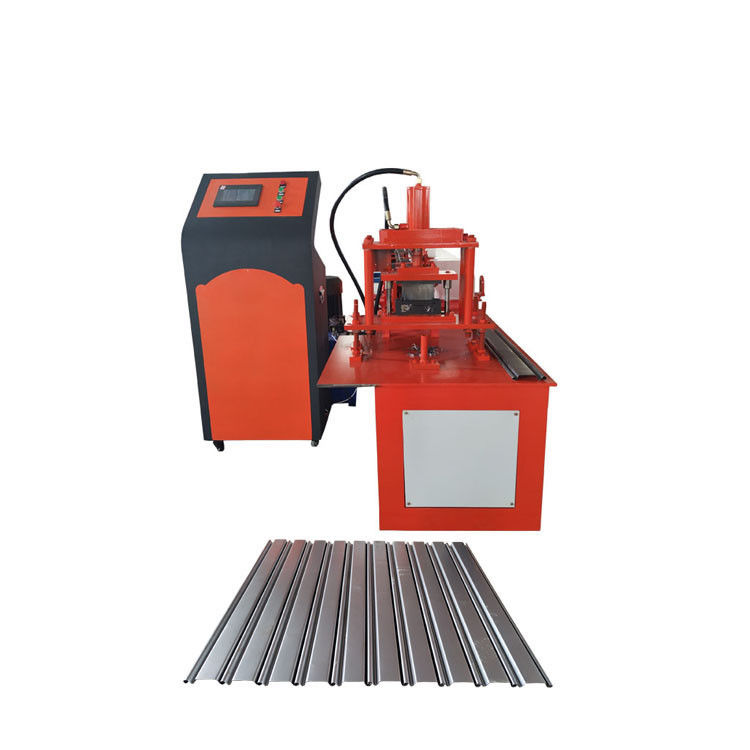

Shutter Door Section Roll Forming Machine Shutter Slat
Production Process:
Uncoiling→ Feeding material into machine →Roll forming → Auto cutting →Products receiving
Warranty
one year, and we will provide technical support for wholelife of the equipment.
If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.(plane ticket, food, hotel and per day 80$ salary)
Specification
| Suitable Material | Material | GI, PPGI, PPGL |
| Width | 170 mm | |
| Thickness | 0.3-1.2 mm | |
| Material of rollers | High grade 45# forged steel, surface hard chromium plating | |
| Rows of rollers | 12 stations | |
| Material of shafts | High grade 45# forged steel | |
| Diameter of shafts | 50 mm | |
| Material of cutting blade | Cr12 Heat Treatment | |
| Cutting Mode | Hydraulic Guide Column | |
| Speed | 15-20 m/min | |
| Side plate thickness | 16 mm | |
| Chain size | 1 inch | |
| Total power | 4 kw | |
| Voltage | 380V 50HZ 3Phase | |
| Appearance size (About) | 5000mm*1000mm*1500mm | |
| Weight(About) | 3 tons | |
| Length measurement | Encoder | |
| Control mode | Delta PLC | |
| Operating mode | Button + Delta Touch screen | |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
