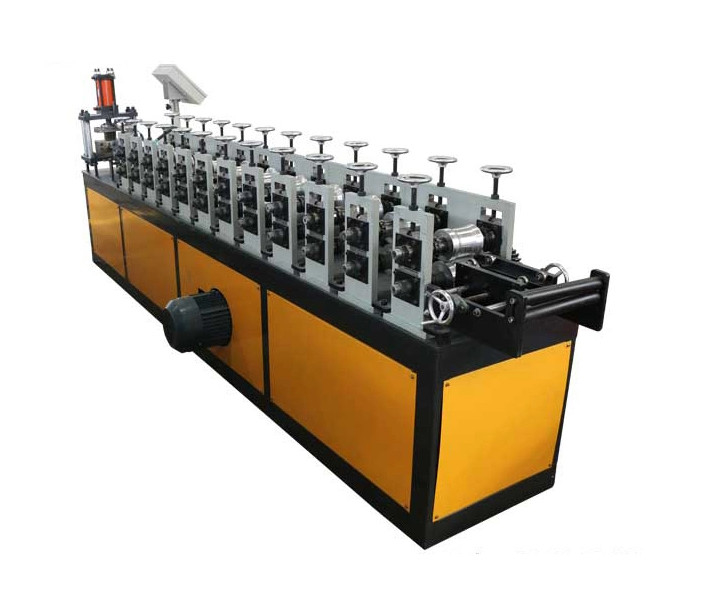

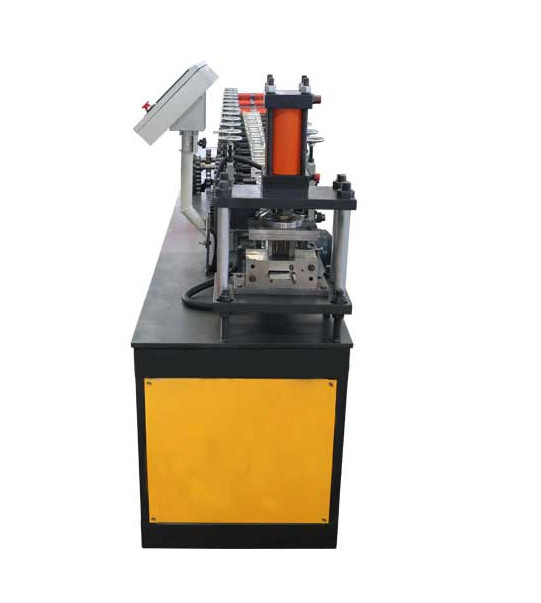

Shutter Door Slat Roll Forming Machine Roller Shutter Door Former
1. High Precision
2. High Efficiency
3. Customized Service
4. Low Noise
Rolling Shutter Door Rolling Equipment is the most popular type of roll forming machines, mainly suitable for PPGI, GI and other harder coils. It makes different shape of color steel roof sheet, which is used in the construction of various industrial plants, buildings, factory, villages, warehouses, supermarkets, hotels, exhibition, shopping malls, shutter doors and ect. The finished sheet usually worked for roof and wall panel. It has beautiful design, and widely used in all over the world.
Specification
| Name | Rolling Shutter Door Rolling Equipment | |
| Raw Material | Material | PPGI PPGL GI GL |
| Width | 150/180mm | |
| Thickness | 0.8-1.2mm, customized | |
| Power Required | Power | 380V 3Phase 50Hz, customized |
| Main Motor | 5.5KW, servo motor driving | |
| Cutting Motor | 4.0KW, Lichao, Shanghai/Siemens Brand | |
| Roll Forming Machine | Support Frame | Square pipe welded |
| Forming Station | 12 | |
| Structure | Stong and stable | |
| Shaft | 45# high grade steel, CNC finish milling | |
| Roller | Cr12 | |
| Transimission | 1.2inch Chain | |
| Bearing | Standard | |
| Speed | 12-18m/min | |
| Cutting Blade | Cr12Mov, quenched 58°-62° | |
| Operation | Touch button | |
| Dimension | 6.5*1.0*1.5M | |
| Weight | 4.5T | |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
