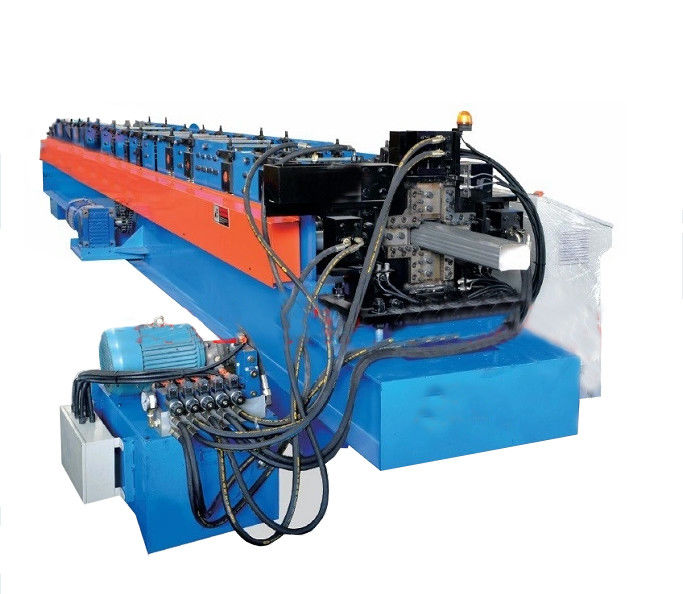

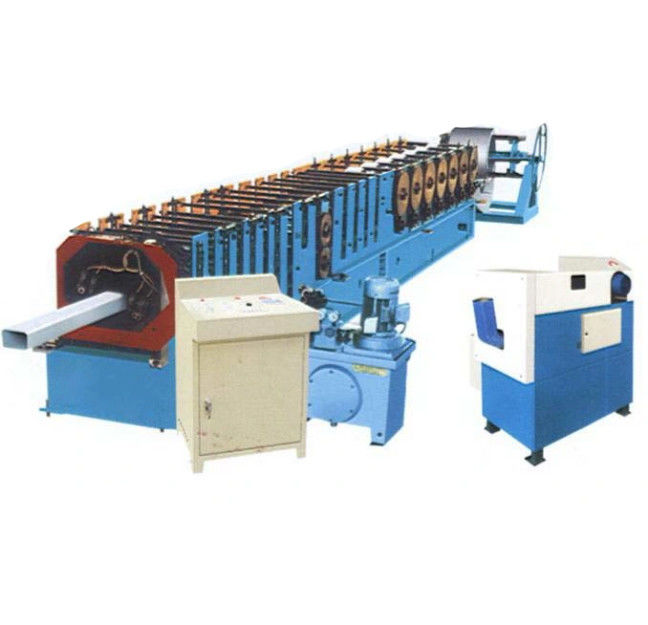

Rain Water Steel Down Pipe Roll Forming Machine Downpipe Making Machine
The application of the downspout makes the steel building stronger, and there are many elbows that match the water drop pipe. The more complex wall surface is also suitable.
steel downspout pipe will not cause aging as thermal expansion and contraction, cracks, so it is more durable
| The general machine parameter | |
| Suitable roll forming material | Color steel sheet or galvanized steel sheet |
| Thickness | 0.4-0.6mm |
| Frame design | Wall-plate-frame-design /Strong-stand-frame-design |
| Roll stages | 16 stages |
| Material of forming roller | 45# steel with forge treatment, CNC lathes, Hard Chrome Coated |
| Shafts Diameter | Φ75mm |
| Main motor power | 5.5KW |
| Max. Line speed of roll former | 12-15m/min (Higher speed is available, depends on the specification required by the buyer) |
| Hydraulic group power | 3 KW |
| Material of cutting blade | Cr12, heat treatment |
| Electric Standard | 380V /50Hz/3PH or as the customer's requirements |
| Machine Dimensions | 9500mm×1200mm×1400mm |
| Major Color of Machine Painted | RAL 5015 (Blue)or as per customer's requirements |
Guarantee
1.Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
