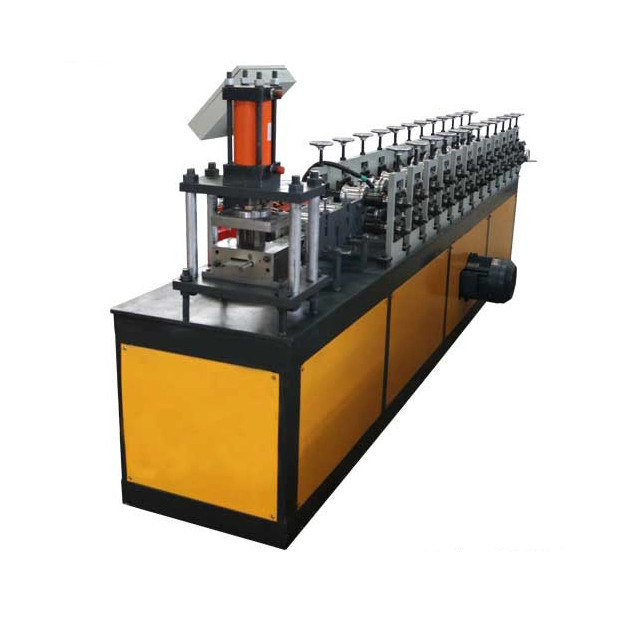

0.6mm Gear Shutter Door Roll Forming Machine Automatic Steel Sheet Roller

0.6mm Gear Shutter Door Roll Forming Machine Automatic Steel Sheet Roller

0.6mm shutter door roll forming machine

gear shutter door roll forming machine

gl shutter door forming machine

Nguồn gốc:

Trung Quốc đại lục

Hàng hiệu:

CANGZHOU FMS

Chứng nhận:

ISO CE

Số mô hình:

cửa trập

Liên hệ với chúng tôi
Yêu cầu báo giá
Chi tiết sản phẩm
Tên sản phẩm:
Các nhà sản xuất máy tạo hình cửa cuốn dạng tấm thép tự động
Độ dày phù hợp:
0,3-0,6mm
Điện áp:
380V 50Hz 3phase
Loại cắt:
thủy lực
Vẽ hồ sơ:
tùy chỉnh
Thành phần cốt lõi:
Động cơ, vòng bi, bánh răng, máy bơm, PLC
Chế độ cắt:
cắt theo dõi tự động
Hệ thống điều khiển:
PLC
Làm nổi bật:

0.6mm shutter door roll forming machine

,

gear shutter door roll forming machine

,

gl shutter door forming machine

Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu
1 bộ
Giá bán
negotiable
chi tiết đóng gói
FLC 20'
Thời gian giao hàng
30 ngày làm việc
Điều khoản thanh toán
L/c, t/t, d/a, d/p
Khả năng cung cấp
20 bộ mỗi tháng
Sản phẩm liên quan
Liên hệ với chúng tôi
86-317-2016816
Liên hệ ngay
Mô tả sản phẩm

Automatic Steel Sheet Roller Shutter Door Roll Forming Machine Manufacturers


Rolling shutter door machine adopts cold-formed steel door and window material made of color-coated plate and stainless steel plate, which has the characteristics of good sealing performance, beautiful appearance and long service life; composite rolling door uses cold-formed steel, which is a new type of material for fireproof doors. A large number of cold-formed steels are also used in various keels and decorative strips for decoration in the construction industry. There are many types and specifications of cross-sections required. The materials used include galvanized sheets, color-coated sheets, stainless steel and aluminum alloys.



Specification



General InformationCoil MaterialGI/GL
Coil Thickness0.6~1.2MM
Coil Width---
Speed15-20M/MIN
VoltageAs Customer's Request
Roll Forming UnitRoller Station12
Driving Motor5.5KW
Shaft Diameter50mm Solid
Shaft Material45# Hard Steel
Roller MaterialCr12
Under FrameSquare Tube Welded
Sidewall ThicknessMemorial Archway Type
TransmissionGear
Feeding Device1 Set
Cutting UnitCutting TypeHydraulic Non-stop TO Cut
Hydraulic Pump Power3KW
Cutting Die MaterialCr12Mov
Hydraulic Oil46# Abrade Oil
Control UnitControl MethodPLC
Length ControlEncoder
OperationTouch Screen
LanguageChinese & English

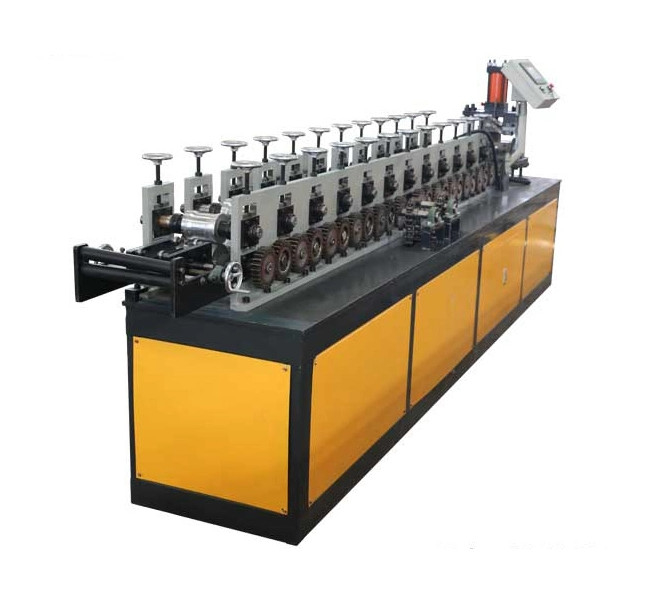

0.6mm Gear Shutter Door Roll Forming Machine Automatic Steel Sheet Roller 0
Guarantee

1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation


Payment terms

40% in advance as down payment
60% is paid before the shipment is processed

Delivery

FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
