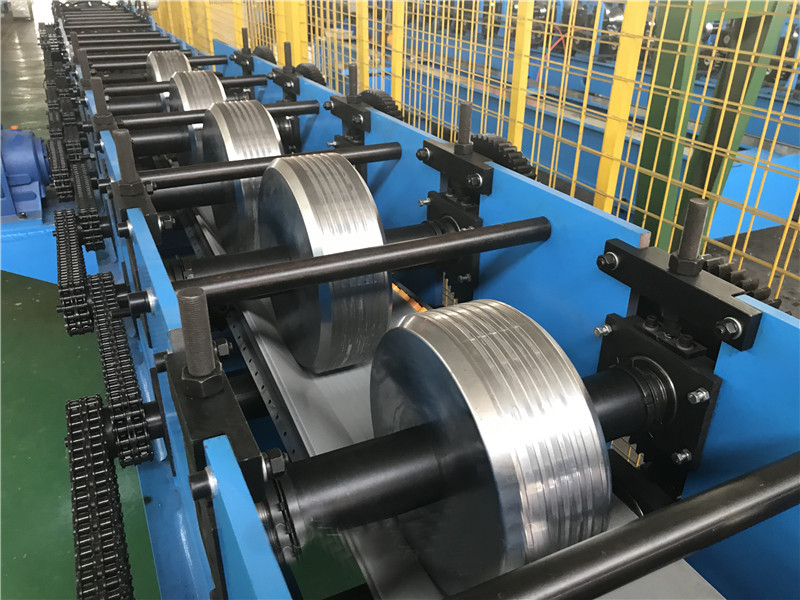

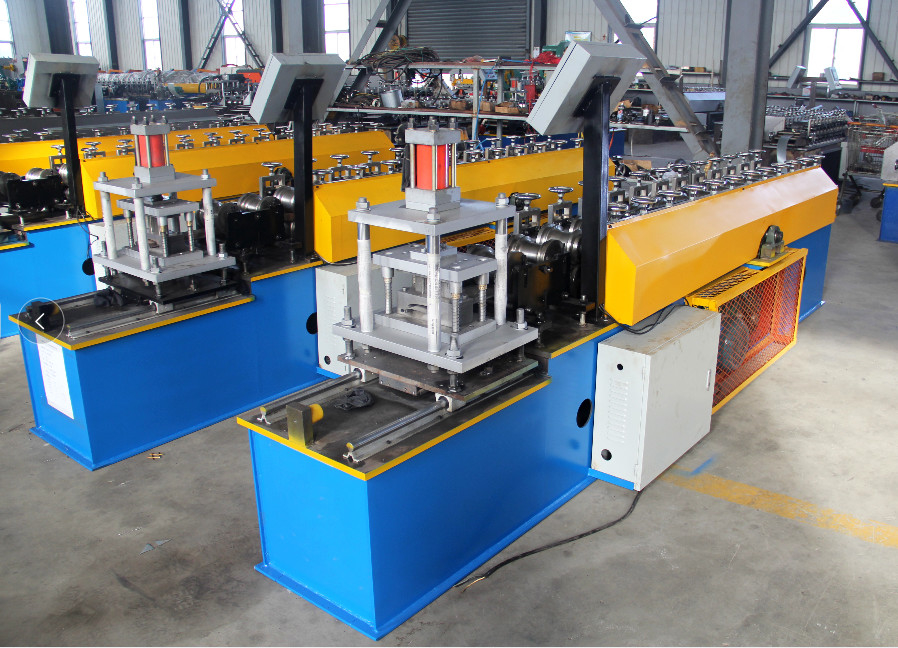

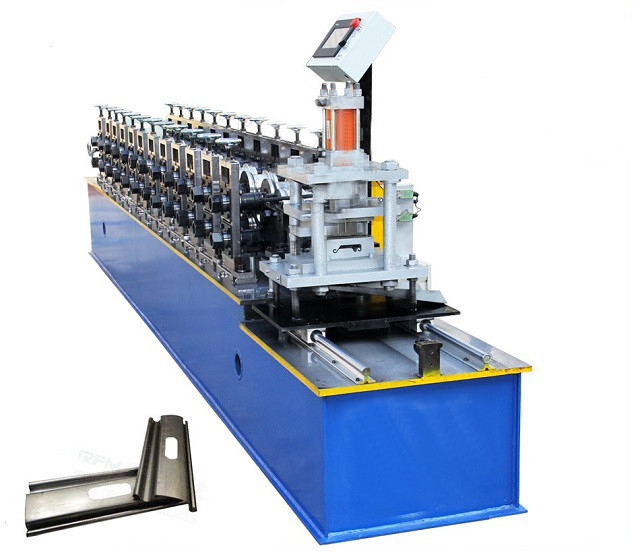

75mm Roller Shutter Door Lath Cold Roll Forming Machine PLC Control System
Specification
|
main forming machine |
Control system | Automatic cutting controlled by PLC |
| Material thickness | 0.8---1.2mm | |
| Material hardness | 195 mpa---350 mpa | |
| Step length | 150mm---380mm(adjustable) | |
| Forming speed | 8-12m/min | |
| Shaft material | 45# steel | |
| Working speed | 3-5.5m/min | |
| Length of the main part | about 12000*1700*1500mm | |
| Number of rollers | 20 rollers | |
| Voltage | 380V-50HZ-3P(as required) | |
| Roller fixer | middle plate | |
| Frame | 400H steel | |
| Material of rollers | 45#steel, surface hard chromium plating. |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
