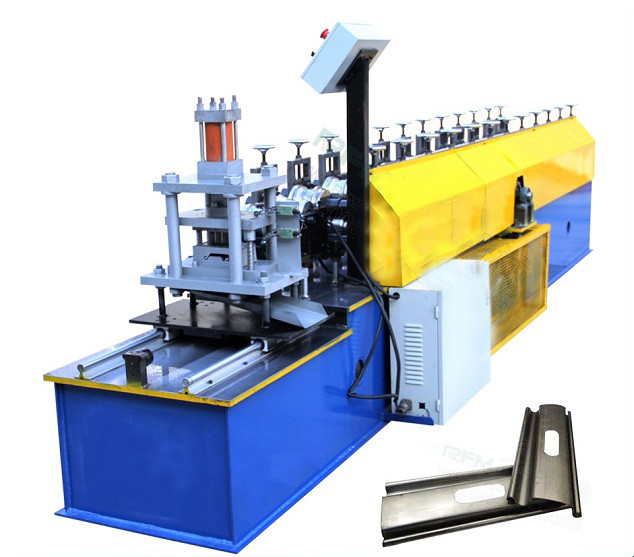

Shutter Door Slat Forming Machine Fully Automatic

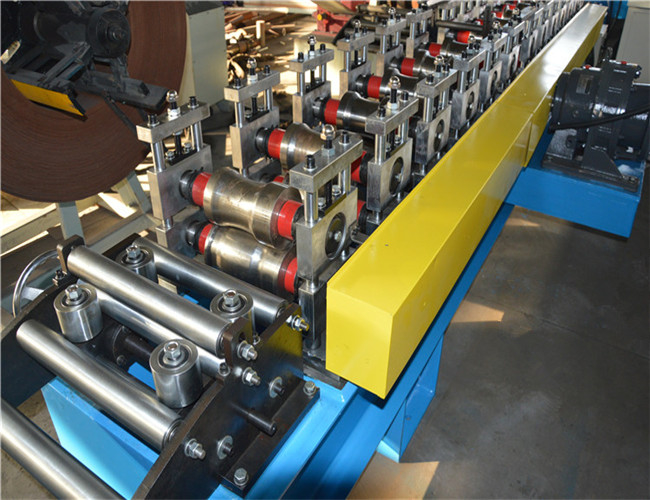

In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller wa chromed which can keep the molding plate surface smooth and not easy to be marked when it is working
Feature: Ensure stability, precision and lifetime
Specification
|
main forming machine |
Forming steps | 14 steps |
| Shaft diameter | 40mm | |
| Machine stand | Memorial arch frame | |
| Machine frame | carbon steel welded | |
| Roller material | GCr12MoV | |
| Shaft material | 45# steel | |
| Work speed | 15-20m/min | |
| Transport | By gear | |
| Power of main machine | 3kw | |
| Voltage | 380V-50HZ-3P(as required) | |
| Machine dimension | 4*1*1.4m | |
| Machine weight | about 2.2T | |
| Machine color | Yellow and blue(as required) |
Guarantee
1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.
2. Repairs will not be performed even during the guarantee period in the follow circumstances
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
Payment terms
40% in advance as down payment
60% is paid before the shipment is processed
Delivery
FOB: Tianjin Xingang Port
The Delivery Time: 30 days after the down payment is received.
