Cold Metal Roof Touchscreen Wall Panel Roll Forming Machine 30m/Min

Cold Metal Roof Touchscreen Wall Panel Roll Forming Machine 30m/Min

wall panel roll forming machine 30m/min

touchscreen wall panel roll forming machine

touchscreen cold roll former

Nguồn gốc:

Trung Quốc đại lục

Hàng hiệu:

FMS

Chứng nhận:

ISO CE

Liên hệ với chúng tôi
Yêu cầu báo giá
Chi tiết sản phẩm
Tên sản phẩm:
Nhà sản xuất máy tấm tường mái kim loại
Thành phần cốt lõi:
Động cơ, Động cơ, PLC
Hệ thống điều khiển:
6000 kg
Năng lực sản xuất:
30m/phút
Điện áp:
380v
Bảo hành các thành phần cốt lõi:
1 năm
Loại gạch:
Thép
Sau bán hàng:
Video hỗ trợ kỹ thuật
Làm nổi bật:

wall panel roll forming machine 30m/min

,

touchscreen wall panel roll forming machine

,

touchscreen cold roll former

Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu
1 bộ
Giá bán
negotiable
chi tiết đóng gói
FLC 40'
Thời gian giao hàng
30 ngày làm việc
Điều khoản thanh toán
L/c, t/t, d/a, d/p
Khả năng cung cấp
20 bộ mỗi tháng
Sản phẩm liên quan
Liên hệ với chúng tôi
86-317-2016816
Liên hệ ngay
Mô tả sản phẩm

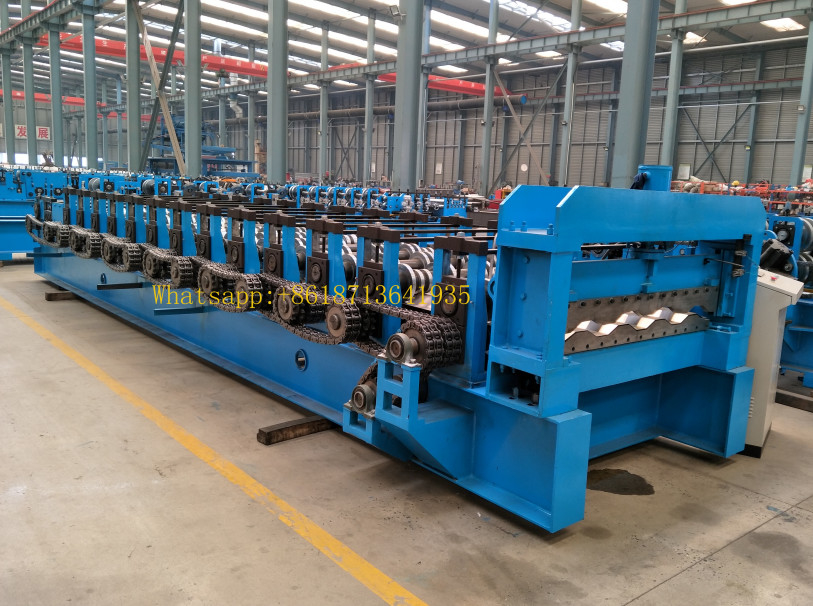

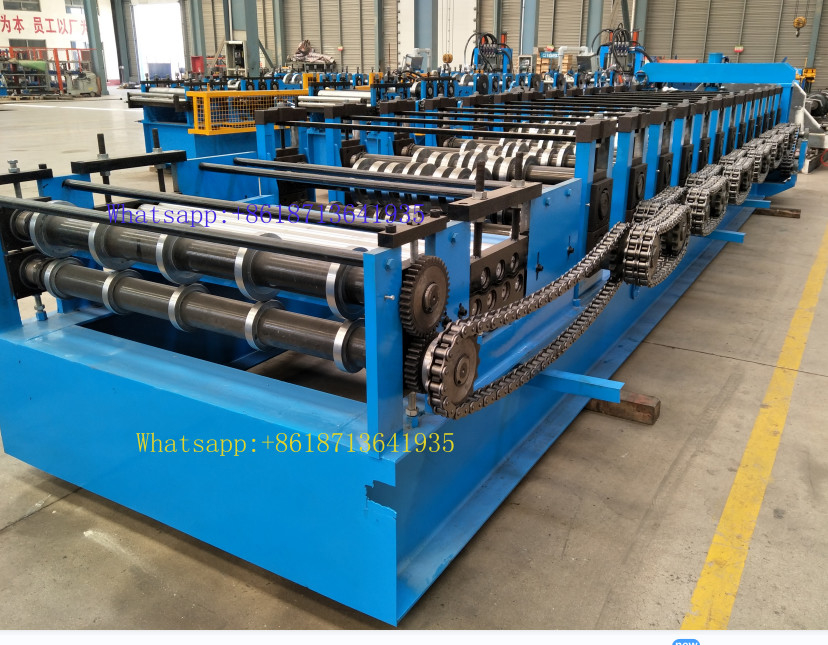

Metal Roof Wall Panel Machine Manufacturers



Metal roof Wall Panel roll forming machine is to use color coating steel plate, the roll forming into various wave type roof sheets, as been widely applied for industrial and civil buildings, warehouses, large-span steel structure roofing, wall and external decoration of the house, etc., Due to the qualitative light, high strength, convenient construction, earthquake, fire prevention, waterproof, long life and free maintenance etc. just like high forming speed, low noise, stable transmission, easy operation, good appearance and so on.



Specification



Model 840/900
Rod 18
Production and processing speed 30 m/min
Processing thickness color steel 3mm
Axle diameter of roll Ø100
Frame 300H steel welding
Medium plate 16mm
Transmission mode 1 inch sprocket chain drive
Shaft material 45# quenching and finishing machining
Wheel material 45# finishing car processing, high frequency quenching, hard chrome plating
Main engine power 4KW pure copper motor
Oil pump motor 7.5KW
Control system touch screen setting
Shear hydraulic mold shear
Cutter plate Cr12 blade



Guarantee



1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation



Payment terms



40% in advance as down payment

60% is paid before the shipment is processed



Delivery



FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
